What's In the Box?
LP-8x4x module
LP-814x: 1 slot
LP-844x: 4 slots
LP-884x: 8 slots

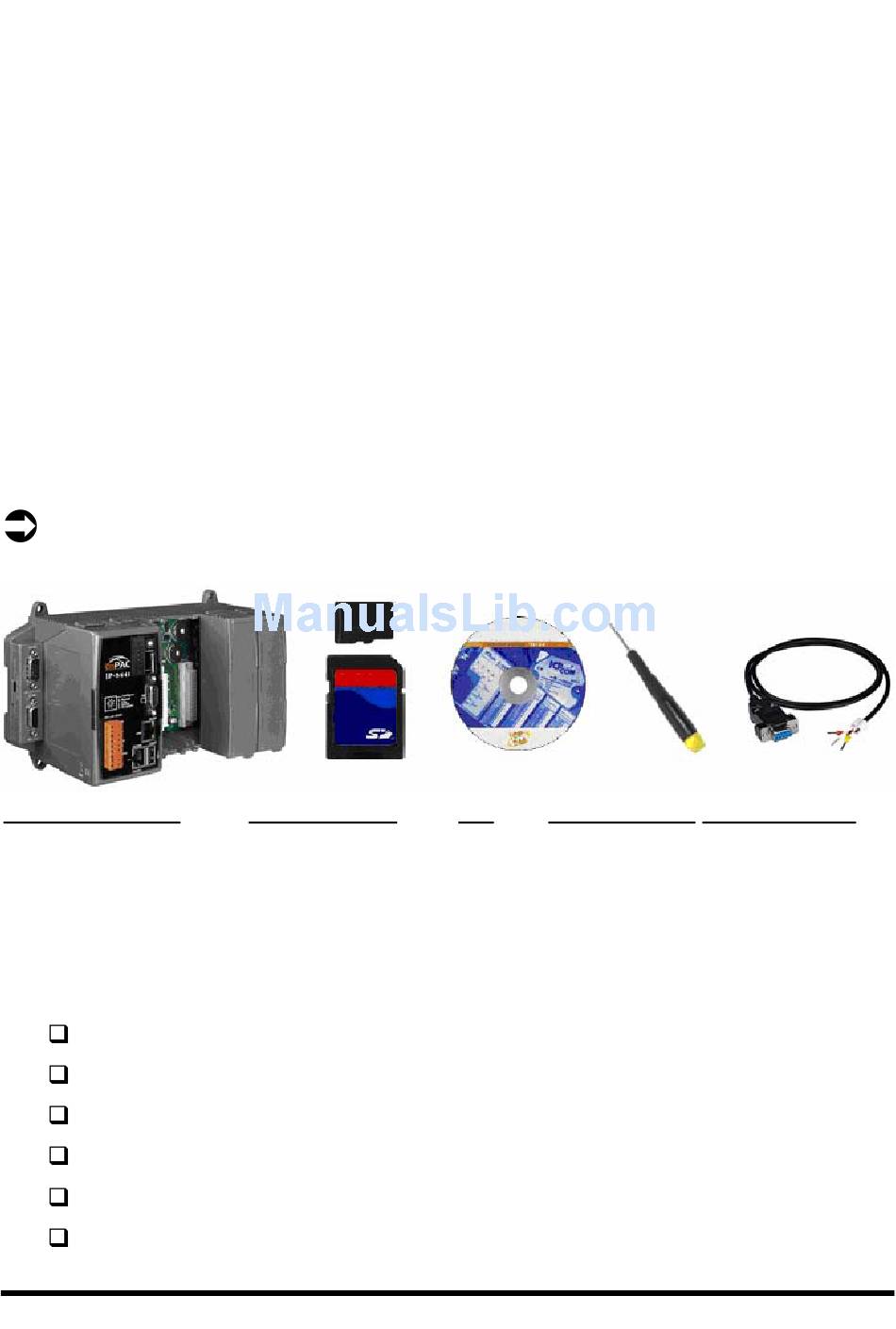

In addition to this manual, the package includes the following items:
One set of LP-8x4x hardware
One microSD card for storing system files
One quick start guide (this manual)
One software utility CD with Software User's Manual included
One screw driver (2.4 mm)
RS-232 cable
c
k
S
t
i
c
k
S
t
microSD card
a
r
t
f
o
r
a
r
t
f
o
r
CD
L
P
-
8
x
L
P
-
8
x
Version 1.6, 2013/06/06
Screw Driver RS-232 Cable
(1C016)
2.4mm
4
x
4
x
CA-0910
CA-0915
CA-0915
- 1 -
Advertisement
Related Manuals for ICP DAS USA LP-8x4x
Summary of Contents for ICP DAS USA LP-8x4x
- Page 1 LP-884x: 8 slots CA-0915 In addition to this manual, the package includes the following items: One set of LP-8x4x hardware One microSD card for storing system files One quick start guide (this manual) One software utility CD with Software User’s Manual included One screw driver (2.4 mm)
-
Page 2: Table Of Contents
2. FRONT VIEW ..................4 3. OPERATION MODES ................ 5 4. PREPARING START-UP ..............6 5. CONNECT THE LINPAC AND WINDOWS PC ......... 8 7. TELENT TO LP-8X4X ..............10 8. CONFIGURE IP ................11 9. TECHNICAL SUPPORT..............11 - 2 -... -
Page 3: Introduction
Linux programming style and skill into the world of PC-based PLC. Application developers can develop their own programs directly into C or Java language by using the LP-8x4x SDK, and then download them into the LP- 8x4x for application and use. -
Page 4: Front View
Furthermore, it has communication capabilities via the built-in Ethernet and RS-232/RS-485 interfaces The following figure demonstrates the hardware system in the LP-8x4x. It includes the main controller with HMI, serial communication and I/O expansion interface. COM3 and COM4 is the standard RS-232 interface, which can be connected to the internet via serial port (COM3 or COM4) with the modem. -
Page 5: Operation Modes
Development by ICP DAS Others Reserved Normal mode(Default) Normal mode is the default operation mode for the LP-8x4x. Use this mode to perform additional tasks and configuration. Programs are also executed in this mode. Quick mode Quick mode is used to bypass the LP-8x4x boot screen when booting form a microSD/microSDHC card, so as to speed up the booting process. -
Page 6: Preparing Start-Up
Step 5: Connect the DC power and turn it on. (The input range of power supply is +10 to +30V Step 6: The LP-8x4x will start up, more detail information, refer to the software user’s manual for further operations and for developing your own applications. - Page 7 The diagram below shows the connections of LP-8141. The diagram below shows the connections of LP-8441/ LP-8841. - 7 -...
-
Page 8: Connect The Linpac And Windows Pc
5. Connect the LP-8x4x to a Windows PC Open HyperTerminal by clicking on ‘Start Programs Accessories Communications Hyper Terminal’ In the ‘COM properties’ dialog box, set the parameters for COM 1 to 115200 bps, 8 data bits, no parity, 1 stop bit and no flow control, and then press the OK button to save the settings. - Page 9 6. Connect the LP-8x4x to a Linux PC Install HyperTerminal tool on the Linux PC, such as minicom, or gtkterm, etc. Using Minicom as an example: In the terminal window, type ‘minicom -s’ to enter the Minicom configuration menu. To configure the COM1 port, use the keyboard arrow keys to select the menu item labeled ‘Serial port setup’...
-
Page 10: Telent To Lp-8X4X
7. Connect to the LP-8x4x via Telnet To view information about the configured network interfaces with ‘ifconfig’ cmd: - 10 -... -
Page 11: Configure Ip
DHCP and the other uses a manually Assigned IP address. The factory default setting for the LP-8x4x is DHCP, and this is the easiest method. However, if your network system does not include a DHCP server, then you will need to manually configure the network settings by using the Assigned IP method.
