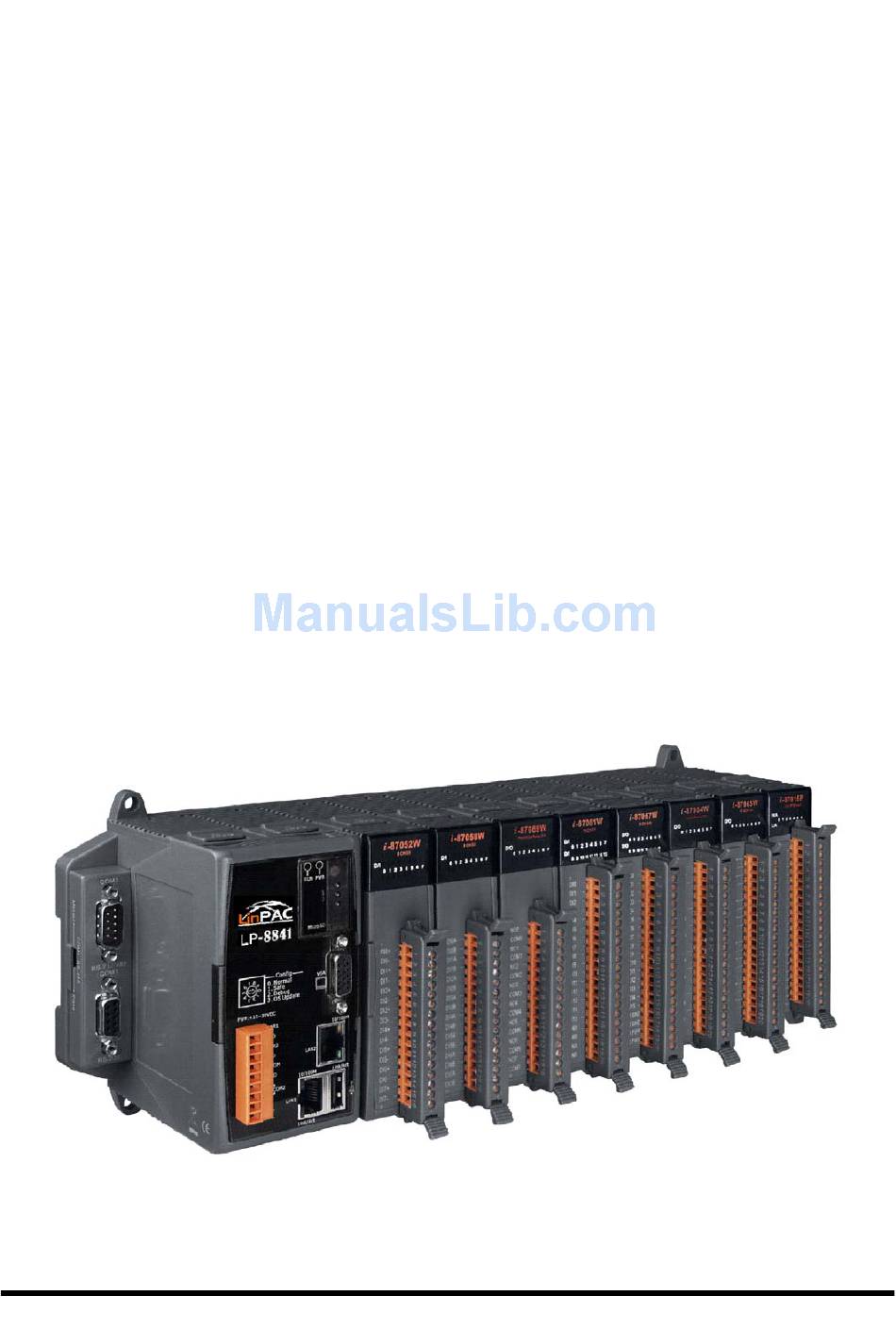

- Page 1 LinPAC-8x41 Compact Embedded Controller Hardware User’s Manual REV 1.0.0.0 2008/8/25 LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 1...
- Page 2 Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product.
-
Page 3: Table Of Contents
1. INTRODUCTION ... 4 1.1 P ... 4 ACKAGE 1.2 L PAC-8 41 S ERIES 1.3 C ONTENTS OF 2. HARDWARE INFORMATION ... 7 2.1 F RONT IEW OF THE 2.2 S ... 8 PECIFICATIONS 3. APPLICATIONS ... 10 4. QUICK START ... 11 5. -
Page 4: Introduction
Introduction 1.1 Package List Package List： In addition to this manual, the package includes the following items: One set of LinPAC-8x41 hardware One Micro SD Memory card for storing system files One hardware user’s manual (this manual) One software utility CD with Software User’s Manual included Note：... -
Page 5: Linpac-8X41 Series
LinPAC-8x41 Series The LinPAC-8000 is the flagship compact embedded controller manufactured by ICPDAS. Its leading technology gives you all of the best features of both traditional PLCs and Linux capable PCs. The LinPAC-8000 system is powered by Linux and brings in the Linux programming style and skill into the world of PC- based PLC. -
Page 6: Contents Of Cd And Micro Sd Memory Card
1.3 Contents of CD and Micro SD memory card CD : LinPAC-8000 SDK LinPAC-8000 OS Image Contents of Micro SD card Source code of demo programs Software User’s Manual Micro SD memory card (default is 1 GB): LinPAC-8x41 System files Demo programs References are given in the Software User’s Manual bundled CD LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 6... -
Page 7: Hardware Information
2. Hardware Information The LinPAC-8000 Embedded Controller is competitive with Industrial PCs in performance, and is lower in price. The system provides VGA and USB keyboard/mouse for local visualization and management. User control programs and data can be saved in persistent storage via Micro SD memory card and USB interfaces. -
Page 8: Specifications
2.2 Specifications System Software Linux 2.6.19 Embedded service Web Server, FTP Server, Telnet Server, SSH Server SDK provided Standard LinPAC SDK for Windows and Linux by GNU C language Communication Interface PXA270 or compatible (32-bit and 520MHz) SDRAM 128MB Dual Battery Backup 512K bytes (for 5 years data retain) SRAM Flash... - Page 9 I/O expansion slots Slot numbers LP-8441: 4 Slots; LP-8841: 8 Slots Dimensions W x D x H (mm) LP-8441: 230 x 132 x 98; LP-8841: 354 x 132 x 98 Operating Environment Operating Temperature -25°C to +75°C Storage Temperature -40°C to +85°C Humidity 5 ~ 95%,non-condensing Power...
-
Page 10: Applications
3. Applications The following figure diagrams the general application area and structure of the LinPAC-8x41. Com3/Com4 is the standard RS-232 interface, which can be connected via the modem or to the Com0 in the LP-8x41 Controller. Com2/Com3 is the RS-485 interface, which can be applied to control the ICPDAS DCON serial modules such as the I-7000, I-8000 and I-87K. -
Page 11: Quick Start
4. Quick Start Step 1. Plug in your USB keyboard and mouse. Step 2. Plug in your VGA monitor. Step 3. Connect the LinPAC-8000 to the LAN Step 4. Insert the I-8K/87K series I/O modules into the LinPAC-8x41 slots. Step 5. Connect the COM2, COM3 or the COM4 ports to your devices controlled by LinPAC-8x41. -
Page 12: Mechanical Information
5. Mechanical Information 5.1 Dimensions 5.2 Dimensions Rail Mounting LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 12... -
Page 13: Wall Mounting
5.3 Wall Mounting 6. Technical Support LinPAC-8000 User Manual CD:\ Napdos\Linux\User_Manual LinPAC-8000 website http://www.icpdas.com/products/PAC/linpac-8000/introduction.htm Our service email account service@icpdas.com LinPAC8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 13...
