TPD-283U-Mx
2.8'' Touch Screen HMI Controller,
communicable over Modbus TCP and Ethernet
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/tpd_283u_m1
1. Introduction
This quick start manual will guide users to implement the TPD-283U-Mx modules
into their applications in a quick and easy way. This will only provide with the basic
instructions. For the more detailed information, please refer to the TPD-283U user's
manual located on the ICPDAS CD-ROM or from ICP DAS web site:
http://www.icpdas-usa.com/documents/user-manual-TPD-283U-H.pdf

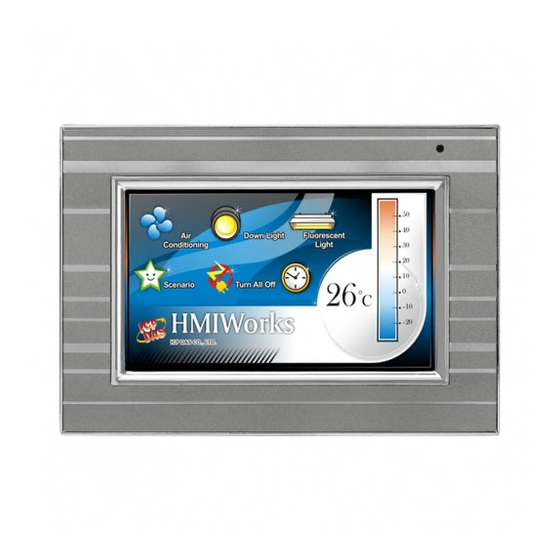

The ICP DAS TouchPAD is a tiny touch screen controller (electrical switch) HMI which
is designed for building and home automation. TPD-283U-Mx is equipped with a high
resolution TFT color touch screen and fits in regular electrical wall-mount outlets.
TPD-283U-Mx 2.8" TouchPAD - QuickStart (May/2017)
