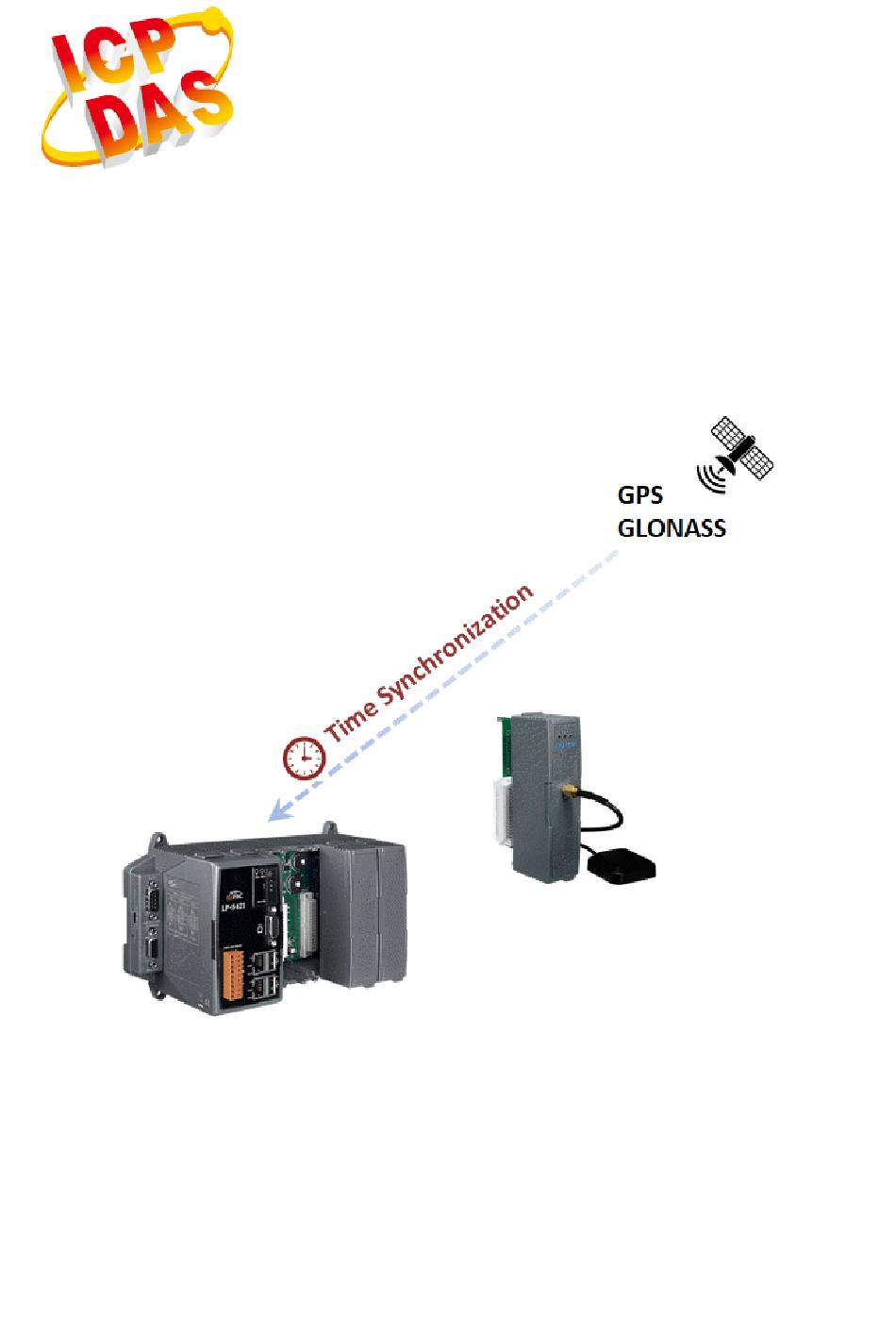

- Page 1 LinPAC + I-8211W User Manual (GPS/GLONASS Time Synchronization) V1.0.1 Apr 2022 LX-8131/LX-8331/LX-8731 LP-8121/LP-8421/LP-8821...
- Page 2 Warranty All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year, beginning from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for any damage resulting from the use of this product.
-
Page 3: Table Of Contents
Contents Contents ............................... 3 1. Introduction ............................. 4 1.1. Features ..........................5 1.2. Specifications ........................6 1.3. LED indicators ........................7 2. LinPAC + I-8211W Getting Started ....................8 2.1. I-8211W(GPS Time Synchronization) ..................9 3. Internet Service ..........................11 Appendix ............................ -
Page 4: Introduction
1. Introduction I-8211W-G is a GPS, GLONASS receiver module designed to use GPS, GLONASS satellite time for automatic and precise time synchronization. The I-8211W-G can be plugged into any slot of the LinPAC, the LinPAC will automatically launch the application and acquire GPS, GLONASS time to reduce RTC drift to 1ms. -
Page 5: Features
Support GPS, GLONASS ● Capable of SBAS (WAAS, EGNOS, MSAS) ● Plug and Play in LinPAC (LX-8x31, LP-8x21) series. - LX-8131/8331/8731 - LP-8121/8421/8821 LinPAC + I-8211W User Manual version 1.0.1 Page: 5 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com... -
Page 6: Specifications
1.2. Specifications LinPAC + I-8211W User Manual version 1.0.1 Page: 6 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com... -
Page 7: Led Indicators
1.3. LED indicators Status Description The module’s power is working correctly. (Red) The module’s power turned off (or error). The module is searching GPS/GNSS. GPS/ The module’s GPS/GNSS error. GLONASS Blanking (Green) The module is working correctly and receiving GPS/GNSS data. (1 sec) LinPAC + I-8211W User Manual version 1.0.1... -
Page 8: Linpac + I-8211W Getting Started
2. LinPAC + I-8211W Getting Started This chapter provides a guided tour of the I-8211W installation for user working with the LinPAC for the first time. Before starting any task, please check the package contents. If any of the following package contents are missing or damaged, contact your dealer, distributor. -
Page 9: I-8211W(Gps Time Synchronization)
2.1. I-8211W (GPS/GLONASS Time Sync Module) Please refer to below steps to insert a I-8211W module into any expansion slot of LinPAC and synchronize GPS/GLONASS time automatically. LinPAC (LX-8x31and LP-8x21) Series Step 1: Align circuit card with slot and press firmly to seat module into connector Tips &... - Page 10 Step 2: Pull top and bottom locking tabs toward module face. Click indicates lock is engaged. Step 3: Power on LinPAC After boot the Linux OS, the LinPAC will automatically launch the application and get the GPS/GLONASS time to minimize the RTC drift to 1 millisecond. Using “ntpq –p”...
-
Page 11: Internet Service
3. Internet Service internet service provided by ICP DAS will be satisfied and it includes Technical Support User’s Manual Download etc. Users can refer to the following web site to get more information: 1. ICP DAS Web Site : http://www.icpdas.com/ 2. -
Page 12: Appendix
Appendix A. Troubleshooting Q1: No I-8211W’s Linux device name. Ans: It means the Linux driver isn’t installed or the module isn’t setup correctly. User can re-plug the I-8211W module into the slot. After the I-8211W installed, user must reinstall the Linux driver module (8250.ko), please refer to below steps: ... - Page 13 Q2: The I-8211W’s GPS/GLONASS led always show “ON” or “OFF” status. Ans: If the GPS led (green) of I-8211W always show the “ON” or “OFF” status, it means the I-8211W can’t receive the GPS/GLONASS data. For some complicated reasons: (1) The location can’t receive the GPS/GLONASS signal. (2) No antenna inserted.
-
Page 14: I-8211W's Device Name In Linpac
B. I-8211W’s Device Name in LinPAC LX-8x31(support 1, 3, 7 slots): LP-8x21(support 1,4,8 slots): LinPAC + I-8211W User Manual version 1.0.1 Page: 14 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com... - Page 15 C. GLONASS Satellite Time Synchronization The LinPAC built-in uses GPS signal as default. You can change the setting to use NTPD package GLONASS signal: (1) Connecting antenna correctly. (2) Reset the system configuration (add -6 to enable GLONASS) #vi /APP/autoexec.sh (3) Reboot the LinPAC LinPAC + I-8211W User Manual version 1.0.1...
-
Page 16: Revision History
D. Revision History This chapter provides revision history information to this document. The table below shows the revision history. Revision Date Description V1.0.1 Apr 2022 V1.0.0 Nov 2017 Initial issue LinPAC + I-8211W User Manual version 1.0.1 Page: 16 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...
