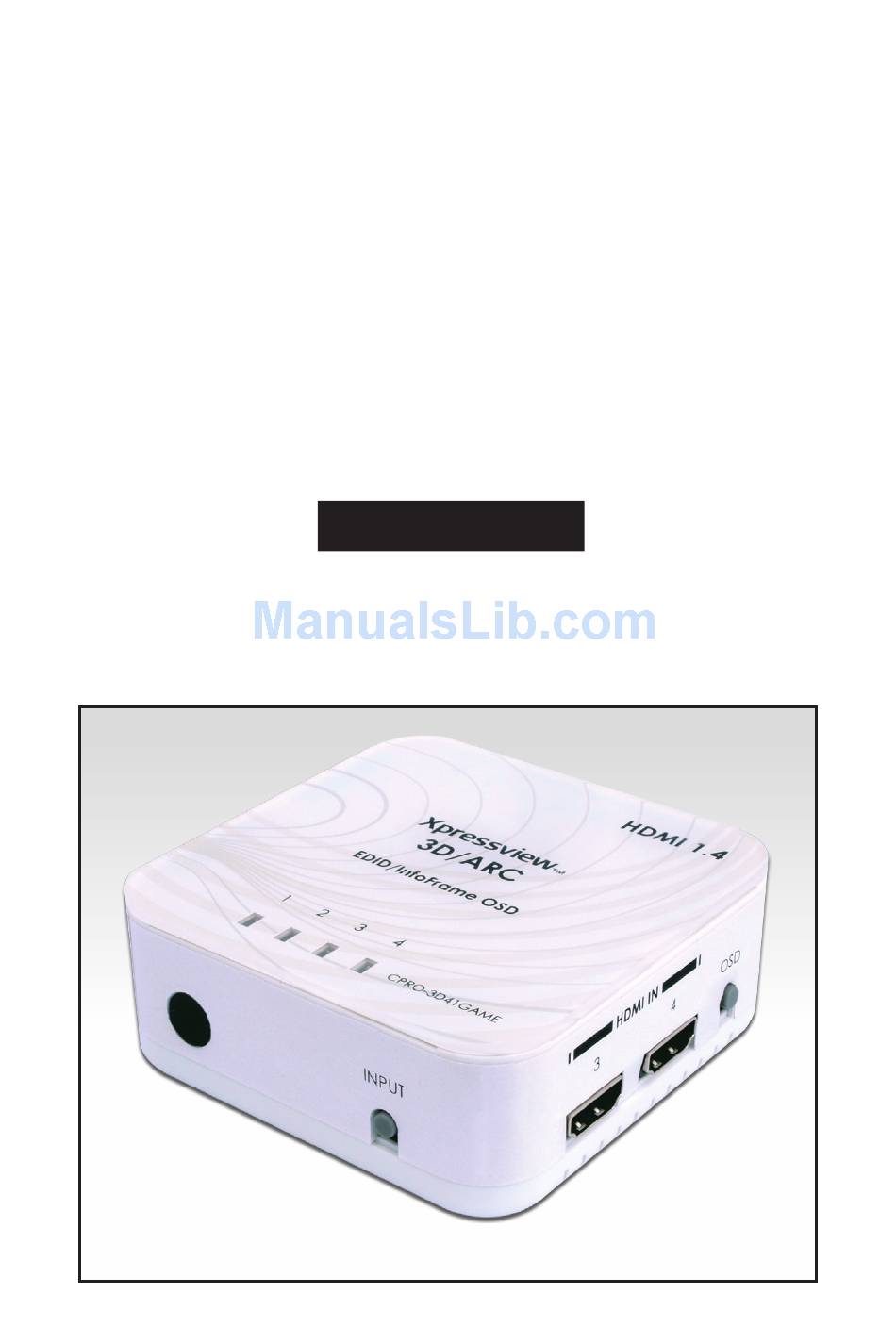

- Page 1 CPRO-3D41GAME HDMI 4 by 1 v1.4 Switcher Operation Manual CPRO-3D41GAME...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .……………...…………………..……..…..….… Right Panel ................Left Panel .…………………………………..……..…..….… Top Panel .…………………………………..……..…...….… Remote Control ….…………………......…..…..…..OSD Menu ….…………………........…..…..….. -
Page 5: Introduction
1. Introduction This is a high performance four-input & one-output High-Definition Multimedia Interface (HDMI) v1.4 switcher with digital audio inputs and outputs. It supports HDCP repeater functions and fast switching between any of the four of HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 1080p 12-bit Deep Color. -
Page 6: Features
5. Features Support multiplexed HDMI 4-input and 1-output HDMI 1.4, HDCP 1.4 and CEC1.4 compliant HDMI 1.4 support: Audio Return Channel (ARC) 3D TV support CEC1.4 Fast switching on all HDMI input ports Character and icon based On-Screen Display (OSD) ... -
Page 7: Specifications
6. Specifications Frequency Bandwidth 2.25Gbps Input Ports 4 x HDMI Female ports Output port 1 x HDMI Female port HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, DD+, D-TrueHD, DTS-HD HDMI Cable In 1080p 8-bit (10M), 12-bit (10M) HDMI Cable Out 1080p 8-bit (15M), 12-bit (15M) Coaxial Audio Output PCM2CH... -
Page 8: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Front Panel INPUT ① ② ① IR sensor: This is a IR receiver window that receives IR signals from the remote control included in the package. ② INPUT: Press this button to select the desires input source, the LED will switch on according to the selection. -
Page 9: Right Panel
② HDMI IN 1 & 2: These slots are where you connect the input source devices for sending an input signal with HDMI cables. 7.5 Top Panel HDMI 1.4 3D/ARC EDID/InfoFrame OSD CPRO-3D41GAME ① ① Input LED 1~4: These LED will switch on according to user ’ s input selection. -
Page 10: Remote Control
8. Remote Control ① MENU: Press to enter into menu selection, an OSD MENU ENTER will appear from the display. ① ② ② Enter: Press to confirm the selection. ③ 1, 2, 3, 4: Press to select input port. ④ pqtu : Use these buttons to select/adjust OSD menu ’... -
Page 11: System Info
9.1 System Info Press [ p / q ] to highlight an option Press [Enter] to check the input/output device information and software version. Press [MENU] to exit menu Press [Enter] to confirm/exit the selection 9.2 Sink Edid Press [ p / q ] to highlight an option Press [ t / u ] to select the option Press [Enter] to confirm/exit the selection Press [MENU] to exit menu... -
Page 12: Exit
9.6 Exit Press [ ↑ / ↓ ] to highlight an option Press [Enter] to confirm/exit the selection 10. Connection and Installation LCD TV HDMI Line Blu-ray... -
Page 13: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Consumer Electronics Control... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100416 MPM-CPRO3D41GAME...
