CSC-5300
PC/Video/HD to HDMI 1.3
Switcher
Operation Manual
Operation Manual
CSC-5300
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-5300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress CSC-5300

Summary of Contents for Cypress CSC-5300

  • Page 1 CSC-5300 PC/Video/HD to HDMI 1.3 Switcher Operation Manual Operation Manual CSC-5300...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..................2. Features ....................3. Operation Controls and Functions ............ 3.1 Front Panel ..................3.2 Rear Panel ..................4. Remote Control ................... 5. RS-232 Remote Control Protocol ............5.1 RS-232 transmission format............6. Connection and Installation ............... 7.

  • Page 4: Introduction

    1. Introduction This is a high quality Video converter box to convert Analog and digital signals to HDMI v1.3 output. The product is compatible to HDMI v1.3 specifications, a cutting edge technology which defines to transfer Deep Color (10-bit and 12- bit) video.

  • Page 5: Operation Controls And Functions

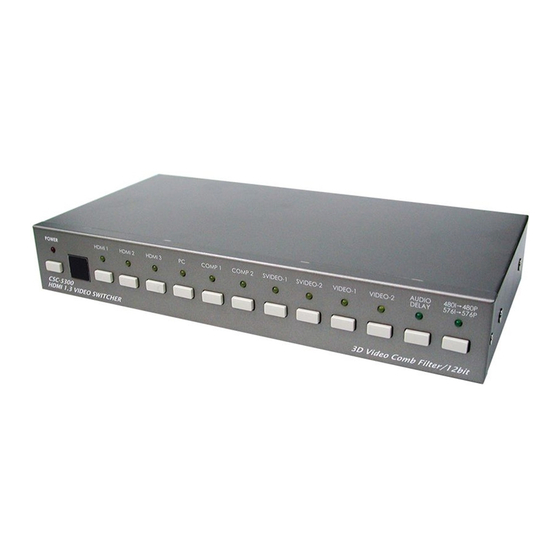

    SVIDEO-1 SVIDEO-2 VIDEO-1 VIDEO-2 DELAY 576I576P CSC-5300 HDMI 1.3 VIDEO SWITCHER 3D Video Comb Filter/12bit Power switch and power LED indicator: Press the switch to power on the unit and the power LED will illuminate. IR sensor. Input source selection: Press the input button to switch to your desired input sources, the LED will illuminate to indicate which input source is selected.

  • Page 6: Remote Control

    4. Remote Control 1. Audio Delay: Press to delay audio output for 150ms. 480I480P Audio Delay POWER 576I576P 2. Format selection: To switch between Interlace and Progressive format. COMP 3. Power: Press the button to turn on/off the unit. SVIDEO 4.

  • Page 7: Rs-232 Transmission Format

    5.1 RS-232 transmission format: (a)Set Commend Command Code Response Description S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE HDMI1 HDMI1 INPUT S SOURCE 1 > SOURCE HDMI2 HDMI2 INPUT S SOURCE 2 >...

  • Page 8: Connection And Installation

    6. Connection and Installation ↑ ↓ ↓ ↓ BLU-RAY BLU-RAY 7. Specifications LCD TV Frequency bandwidth 2.25Gbps (single link) Input ports 3 x HDMI female ports (Type A connector) 1 x PC with audio jack 2 x Y/Pb/Pr with R/L 2 x CV/SV with R/L 1 x RS-232 Output port...

  • Page 9: Input Signal Specifications

    Input Signal Specifications PC Resolution Vert Rate 640x480 60/72/75/85Hz SVGA 800x600 56/60/72/75/85Hz 1024x768 60/70/75/85Hz SXGA 1280x1024 60Hz HDTV Resolutions Vert Rate 480p 720x480 60Hz 480i 720x480 60Hz 576p 720x576 50Hz 576i 720x576 50Hz 720p 1280x720 50, 60Hz 1080i 1920x1080i 50, 60Hz 1080p 1920x1080p 50, 60Hz...
  • Page 11 20080425 MPM-CSC5300...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
