- Page 1 CPRO-3D42S 4 by 2 HDMI Switcher with HEAC Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: electrical shock and injury to persons. moisture or install this product near water. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 RS232 Protocol and Command ..6 7. -
Page 6: Introduction
1. INTRODUCTION This is a high performance HDMI™ Switcher with four HDMI inputs & two outputs HDMI™ Switcher, the output ports support Audio Return Channel (ARC) from a compaitble ARC TV and HDMI Ethernet The HDMI Switcher provides an S/PDIF link from the HDMI signal and the sink. -
Page 7: Features
5. FEATURES Two output ports supporting Ethernet Channel (HEC) and Audio HDMI supports: Audio Return Channel (ARC) networking at up to 100 Mb/sec EDID optiions include Standard, TV or Lock EDID feature Supports CEC bypass on HDMI OUT 1 Audio support: HDMI compatible audio interface S/PDIF pass through... -
Page 8: Operation Controls And Functions

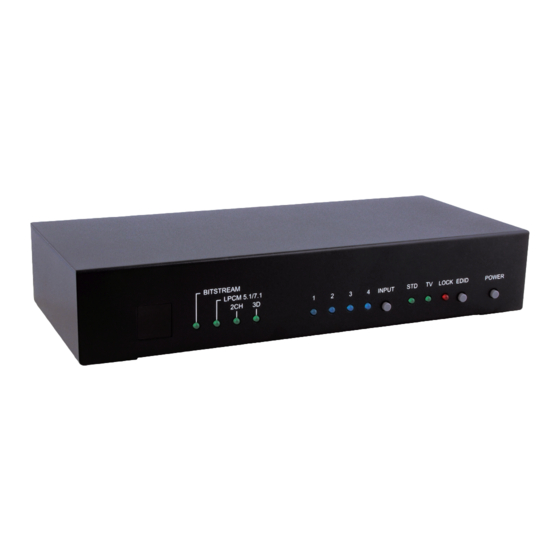

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel BITSTREAM LPCM 5.1/7.1 LOCK EDID POWER INPUT IR Remote Control Sensor Audio/3D Content Indicator The system will automatically detect incoming audio/video signal type and the green LEDs will illuminate accordingly. Input Selection Press input button to select input source, the Blue LED will illuminate accordingly. -
Page 9: Rear Panel
6.2 Rear Panel RS-232 DC 5V HDMI OUT HDMI IN RS-232 to Section 6.4. HDMI OUT 1~2/ARC 1~2/ETHERNET 1~2 HDMI/HEAC equipped TVs or displays will pass the Ethernet and Audio signals via HDMI cable back to the HDMI Output port, the splitter will separate the Ethernet and audio, and will output audio audio content can be sent “upstream”... -
Page 10: Remote Control
Note 2: When the HDMI output has both Audio and ARC at the same time the ARC will be the prioritized. HDMI INPUT 1~4 Connect to HDMI or DVI sources equipment such as DVD player or Note A: This system was tested with 24 AWG cables. If using cables Note B: UA40B700 12-bit LED TV. -
Page 11: Rs232 Protocol And Command
6.4 RS232 Protocol and Command CPRO-3D42S Remote Control Console Baud Rate: 9600 bps Parity: None Flow Control: None Command Action POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output Select Input 1 PORT 12 Output Select Input 2... -
Page 12: Connection Diagram
Note: In this example, HDMI In 1 is selected. Blu-ray Player DVD Player Audio Loop Out Audio Loop Out Speakers AV Amplifier RS-232 HDMI OUT CPRO-3D42S RS-232 DC 5V HDMI OUT HDMI IN Speakers TV/Monitor with ARC Internet Hub/ & HEC... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth Input Ports 4 × HDMI (Female type) Output Ports 2 × HDMI (Female type) 2 × Ethernet 2 × ARC Output Resolution 480i ~1080p50/60, 1080p24, VGA~UXGA HDMI Cable In HDMI Cable Out ESD Protection Human Body model: discharge) ±4 kV (contact discharge) -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Consumer Electronics Control EDID HEAC HDMI Ethernet & Audio Return Channel HDMI Ethernet Channel HDCP HDMI... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
