Summary of Contents for Cypress CPLUS-V4H1HP

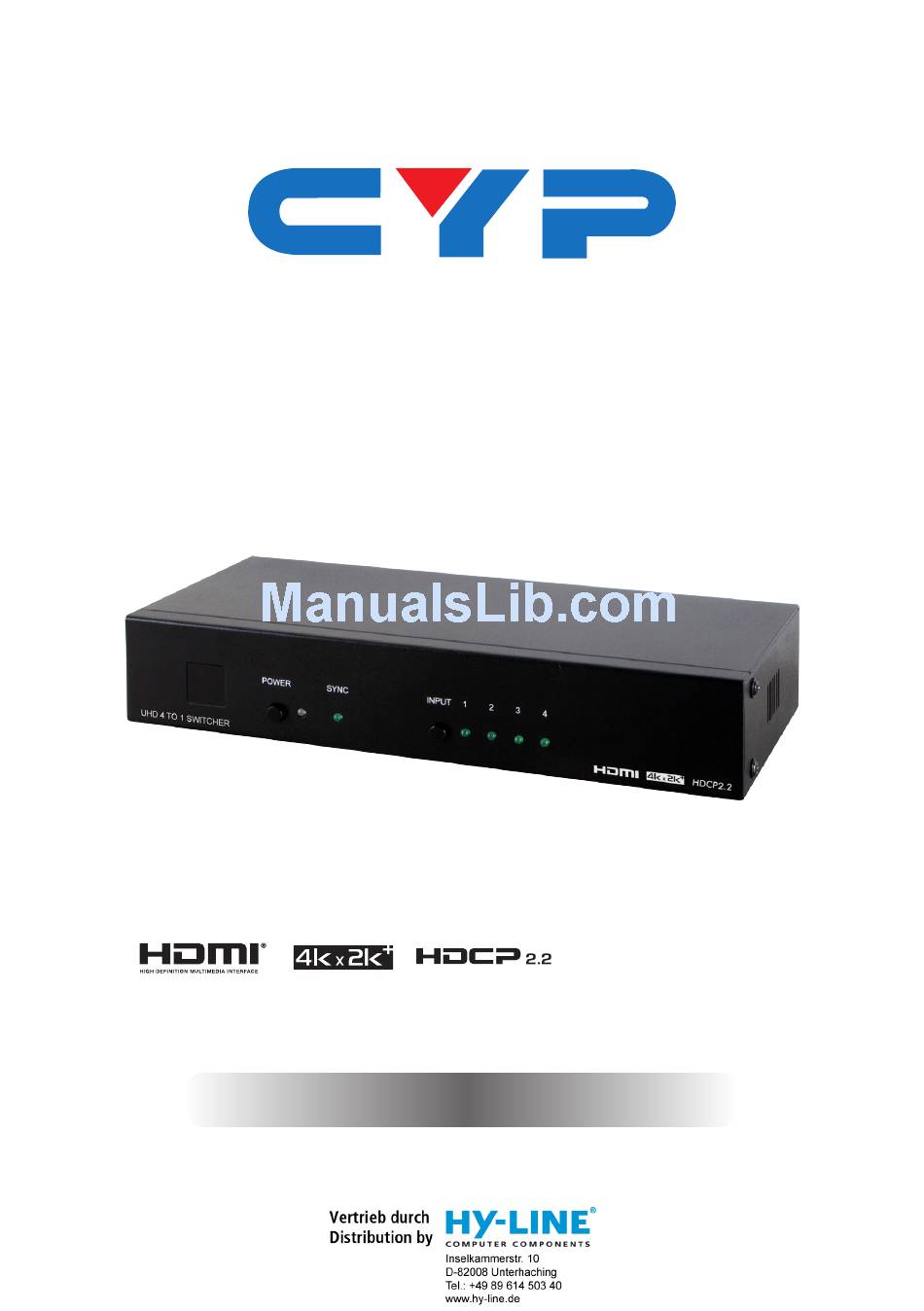

- Page 1 CPLUS-V4H1HP 6G UHD 4 to 1 HDMI Switcher with HDCP 2.2 Operation Manual Operation Manual...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Remote Control ........5 6.4 WebGUI ..........6 6.5.1 WebGUI Control Page ....7 6.5.2 Power On/Off ........7... -
Page 5: Introduction
1. INTRODUCTION The 6G UHD 4 to 1 HDMI switcher is the most advanced HDMI solution for your true Ultra High-Definition signal distribution. It allows you to manipulate four 6G HDMI input signals with switching into one 6G HDMI displays. With supports 4K2K@60, 48-bit Deep Color, HDR (High Dynamic Range) audio and other features defined by HDMI 2.0 specifications. -
Page 6: Features
5. FEATURES • HDMI with 6G 4Kx2K supported, HDCP 2.2 and DVI compliant • Supports 4 HDMI inputs and 1 HDMI output of 6G video • Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/50/60 & 4096x2160 @24/25/30/50/60Hz) • Supports data rate up to 6Gbps and Deep Color up to 1080p 48-bit •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC INPUT UHD 4 TO 1 SWITCHER HDCP2.2 IR receiving window: The IR receiving window receives IR signal of remote control unit supplied in the package. Power: Presses this button to power on the switcher once connecting with power supply supplied in the package. -
Page 8: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V HDMI In : Connects with HDMI input sources such as gaming console, Blu-ray player via HDMI cable. The DVI source is compatible. HDMI Out: Connects with display equips with HDMI input connector. -
Page 9: Remote Control
6.3 Remote Control POWER POWER: Press this button to switch ON the device or to set it to standby mode. INPUT: Press 1~4 to select input source. INPUT CR-72... -
Page 10: Webgui
6.4 WebGUI Install the IP Discovery Tool: (1) Please obtain the Device Discovery software from your authorized dealer and save it in a directory where you can easily find it. Note: The unit’s default IP address is 192.168.1.50 (2) Connect the unit and your PC/Laptop to the same active network and execute the Device Discovery software. -
Page 11: Webgui Control Page
6.5.1 WebGUI Control Page All functions, including power, input selection, EDID management, HDCP management, output adjustments, Ethernet settings, volume adjustments, and reset/firmware functions, are presented on a single web page to allow for intuitive operation. The individual functions will be introduced in the following sections. 6.5.2 Power On/Off The unit can be powered on or off from this tab. -
Page 12: Routing
6.5.3 Routing The unit can be powered on or off from this tab. 6.5.4 Source Detect When input source connected, the corresponded input port will display “On”. 6.5.5 Status (1) This tab displays current corresponding HDMI input port for HDMI output and the unit’s firmware revision. -
Page 13: Edid
6.5.6 EDID (1) All HDMI input EDID allows to set to the same, the available EDID includes 8/2D/PCM/720p, sink, 8/2D/PCM/1080p, 8/2D/ PCM2/4K3G, 8/2D/PCM2 4K Y420, 8/2D/PCM/4K 6G. (2) When user needs to set different EDID for HDMI inputs, please select “Appoint” then desired EDID information. 6.5.7 HDCP Control The HDCP mode could be selected as “standard”... -
Page 14: Hdmi Out Info
6.5.8 HDMI Out Info The HDMI output information including type, manufacturer name, native resolution, color depth, support 3D or not, 4K2K or not and audio format displays here. 6.5.9 NAMING The four HDMI inputs and one HDMI output could be renamed here. Please click “SAVE”... -
Page 15: Network Setting
6.5.10 Network Setting The related network setting can be changed here which includes IP mode either DHCP or Static, IP address, net mask, Gateway, Http port and Telnet port. -
Page 16: Telnet Control
6.6 Telnet Control Before attempting to use telnet control, please ensure that both the unit and the PC/Laptop are connected to the same active networks. To access Telnet in Windows 7, click on the “Start” menu and type “cmd” in the search field, then press “Enter”. Under Windows XP go to the “Start”... -
Page 17: Rs-232 Command
6.7 RS-232 Command Command Name Command Description Parameter Print this message, code entry is not CASE NONE SENSITIVE Print this message, HELP code entry is not CASE NONE SENSITIVE POWER OFF NONE POWER ON NONE SET/SHOW ALL INPUT INNAME INNAME [1~4][8 char] NAME SET/SHOW HDMI OUTPUT OUTNAME... - Page 18 Command Name Command Description Parameter DISPLAY FIRMWARE NONE VERSION DISPLAY THE CURRENT IPCONFIG NONE IPCONFIG SIPADDR X.X.X.X SIPADDR SET ETHERNET IP ADDRESS (X:0~255) SNETMASK X.X.X.X SNETMASK SET ETHERNET NETMASK (X:0~255) SGATEWAY X.X.X.X SGATEWAY SET ETHERNET GATEWAY (X:0~255) HTTPPORT N HTTPPORT SET HTTP PORT NUMBER (N=0~65535) TELNETPORT N...
-
Page 19: Ir Cable Pin Assignment
6.8 IR Cable Pin Assignment IR Extender IR Signal Power Grounding 6.9 D-sub 9 Pin Definition Define TX / RX TxD/RxD RxD/TxD... -
Page 20: Connection Diagram
7. CONNECTION DIAGRAM Satellite Receiver Blu-ray Player Set-top Box Media Player RS-232 Equipped PC or Notebook RS-232 HDMI Inputs Connection Power Supply HDMI IN HDMI OUT SERVICE CONTROL RS-232 IR IN DC 5V IR Extender HDMI Output Connection Network Router UHDTV... -
Page 21: Specifications
8. SPECIFICATIONS Video Bandwidth 600MHz/6Gbps Input Ports 4 x HDMI Output Ports 1 x HDMI Supported Resolutions 480i~4K2K@24/50/60 HDMI Sampling Rate 32kHz ~ 192 kHz IR Frequency 38kHz Baud Rate 19200 bps Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/ UL certified) ESD Protection Human Body model: ±... -
Page 22: Support Timing Table
9. SUPPORT TIMING TABLE 9.1 Support Timing Table HDMI RESOLUTION SUPPORTED 480i 576i 480p 576p 640x480@60&72&75&85 720p @50&60 800x600@56&60&72&75&85 1080i @50&60 1080p@24&25&30 1080p@50&60 1024x768@60&70&75&85 1280x1024@60 1600x1200@60 1680x1050@60RB ... -
Page 23: Hdmi Cable Length
9.2 HDMI Cable Length HDMI CABLE LENGTH (MAX) 8-bit 1080p 12-bit 1080p Input Output Input Output HI SPEED 4K2K CABLE LENGTH (MAX) 4K2K HDMI In HDMI Out 3840x2160p24 3840x2160p60... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-V4H1HP...
