Summary of Contents for Cypress CLUX-C41

  • Page 1 CLUX-C41C 4x1 HDMI v1.3 Switcher Operation Manual CLUX-C41C...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction................2. Features..................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. Remote Control................5. Connection and Installation............. 6. Specifications................7. Cypress HDMI v1.3 Series............
  • Page 3: Features

    1. Introduction This is a high performance HDMI switcher with 4 separate digital audio inputs and 1 output. It provides for various HDMI sources to share one HDTV display with CEC control fonctions. Simply press one button to select your desired HDMI source for display on the HDTV.
  • Page 4: Operation Controls And Functions

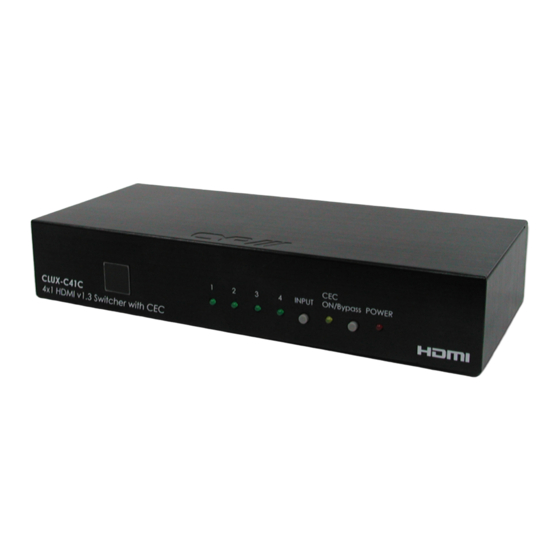

    3. Operation Controls and Functions 3.1 Front Panel INPUT ON/Bypass POWER CLUX-C41C 4x1 HDMI v1.3 Switcher with CEC ① Remote control sensor. ② Input select/Indicators: Press the “INPUT” button repeatedly to switch to your desired input source and the LED will illuminate to indicate which input source is selected.
  • Page 5: Rear Panel

    3.2 Rear Panel RS-232 INPUT DC 5V OUTPUT ① HDMI output: Connect the HDMI output of the unit to the HDMI input of your display with HDMI cable. ② HDMI Inputs: Connect each of the input ports to the HDMI or DVI output of your source equipment such as DVD player or set-top-box.
  • Page 6: Remote Control

    4. Remote Control 1. Power: Press the button to turn on/off the unit. 2. CEC: Press the button to turn on /off the CEC function. 3. Direct input selector: Press 1, 2, 3 or 4 to select the desired input source. 5.
  • Page 7: Specifications

    6. Specifications -Frequency bandwidth 2.25Gbps(single link) -Input ports 4 x HDMI female ports (Type A connector) 1 x RS232 -Output ports 1 x HDMI female port (single link). -Power Supply 5V/1A -Weight(g) -Dimension(mm) 204(W) x 104(D) x 44(H) -Chassis Material Metal -Silk Skin Color Black...
