EasyCoder 3400e Bar Code Label Printer User's Manual
Approximate
Sensitivity Numbers
700 Series High Sensitivity
400 Series Medium
Sensitivity
100 Series Low Sensitivity
800 Series High Sensitivity
(Paper)
600 Series Medium
Sensitivity (Paper)
2-14
If you are not using Intermec media and ribbon, or you misplaced your packaging with
the three-digit sensitivity number label on it, you can set the approximate sensitivity
number. The first column of the Direct Thermal and Thermal Transfer Media
Sensitivity Settings tables list the approximate sensitivity settings. To achieve
acceptable print quality, enter the three-digit media sensitivity number (for example,
800).
If you are unsure of how to set the media sensitivity number, start with the highest
setting, which provides the lowest energy (800 for thermal transfer and 700 for direct
thermal), and work your way down until you achieve the best print quality. You can
also use PrintSet's Print Quality Wizard to help achieve print quality.

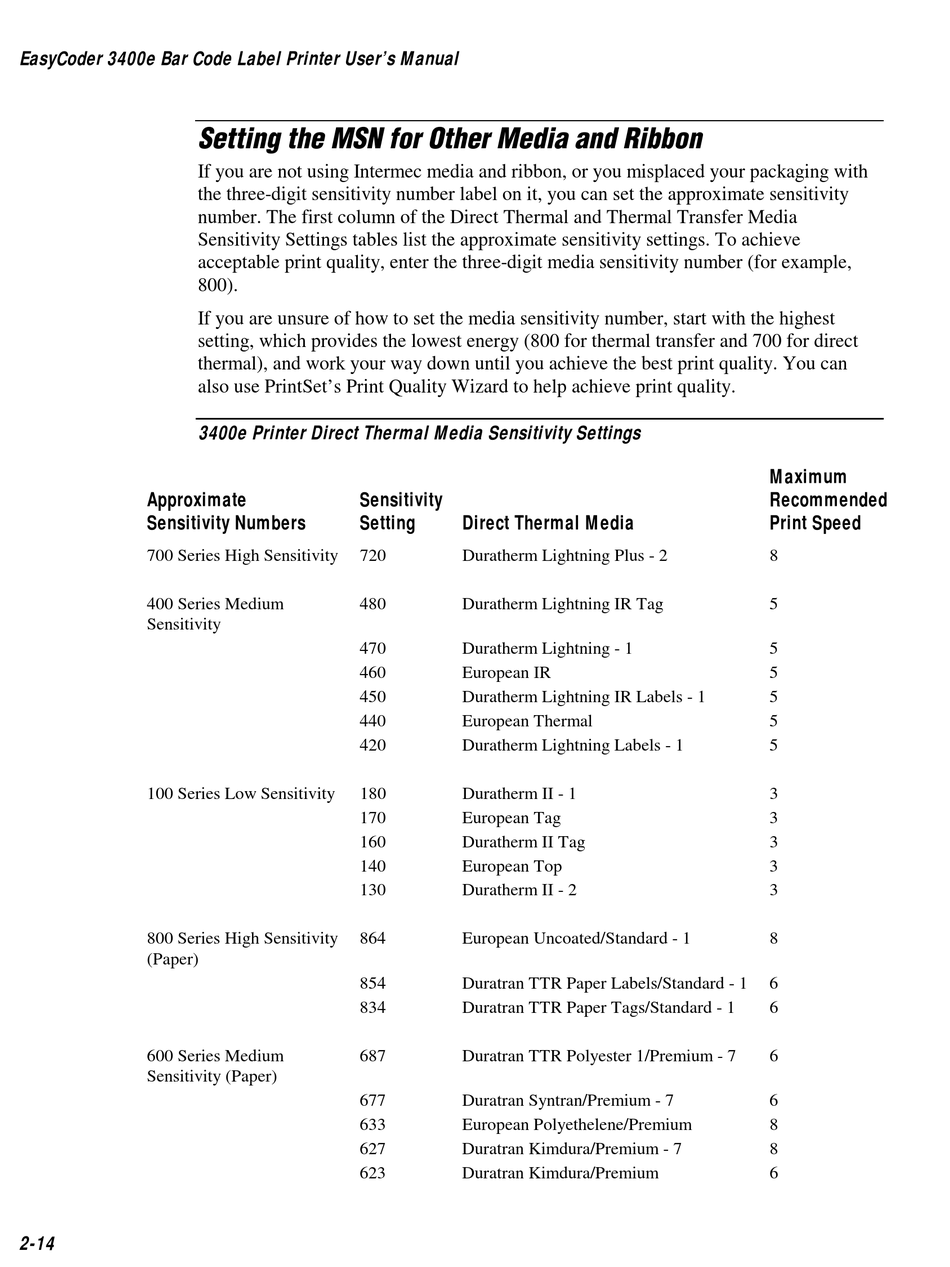

3400e Printer Direct Thermal Media Sensitivity Settings
Sensitivity
Setting
720
480
470
460
450
440
420
180
170
160
140
130
864
854
834
687
677
633
627
623
* 1233*
HelvC
Direct Thermal Media
Duratherm Lightning Plus - 2
Duratherm Lightning IR Tag
Duratherm Lightning - 1
European IR
Duratherm Lightning IR Labels - 1
European Thermal
Duratherm Lightning Labels - 1
Duratherm II - 1
European Tag
Duratherm II Tag
European Top
Duratherm II - 2
European Uncoated/Standard - 1
Duratran TTR Paper Labels/Standard - 1
Duratran TTR Paper Tags/Standard - 1
Duratran TTR Polyester 1/Premium - 7
Duratran Syntran/Premium - 7
European Polyethelene/Premium
Duratran Kimdura/Premium - 7
Duratran Kimdura/Premium
Maximum
Recommended
Print Speed
8
5
5
5
5
5
5
3
3
3
3
3
8
6
6
6
6
8
8
6
