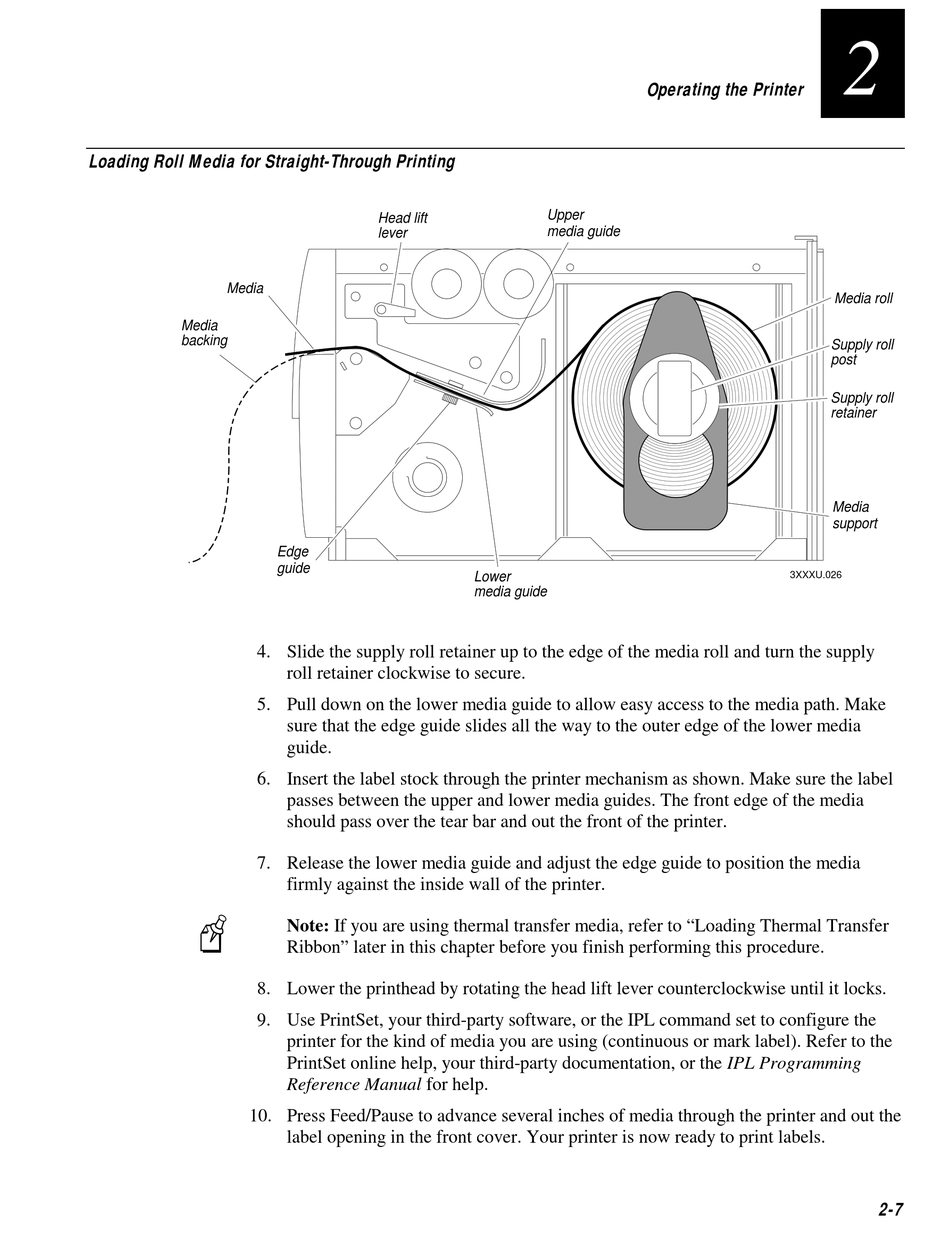

Loading Roll Media for Straight-Through Printing

Media
Media
backing
4. Slide the supply roll retainer up to the edge of the media roll and turn the supply
5. Pull down on the lower media guide to allow easy access to the media path. Make
6. Insert the label stock through the printer mechanism as shown. Make sure the label
7. Release the lower media guide and adjust the edge guide to position the media
8. Lower the printhead by rotating the head lift lever counterclockwise until it locks.
9. Use PrintSet, your third-party software, or the IPL command set to configure the
10. Press Feed/Pause to advance several inches of media through the printer and out the
NugFont
HelvC
Head lift
lever
Edge
guide
roll retainer clockwise to secure.
sure that the edge guide slides all the way to the outer edge of the lower media
guide.
passes between the upper and lower media guides. The front edge of the media
should pass over the tear bar and out the front of the printer.
firmly against the inside wall of the printer.
Note: If you are using thermal transfer media, refer to "Loading Thermal Transfer
Ribbon" later in this chapter before you finish performing this procedure.
printer for the kind of media you are using (continuous or mark label). Refer to the
PrintSet online help, your third-party documentation, or the IPL Programming
Reference Manual for help.
label opening in the front cover. Your printer is now ready to print labels.
C 39
Operating the Printer
Upper
media guide
Lower
media guide
2
Media roll
Supply roll
post
Supply roll
retainer
Media
support
3XXXU.026
2-7
