EasyCoder 3400e Bar Code Label Printer User's Manual
3. Plug the AC power cord into the receptacle at the rear of the printer. Plug the other
4. Turn the On/Off switch to the on position. When you power on the printer, the
You need to open the printer every time you load media or perform maintenance
procedures.

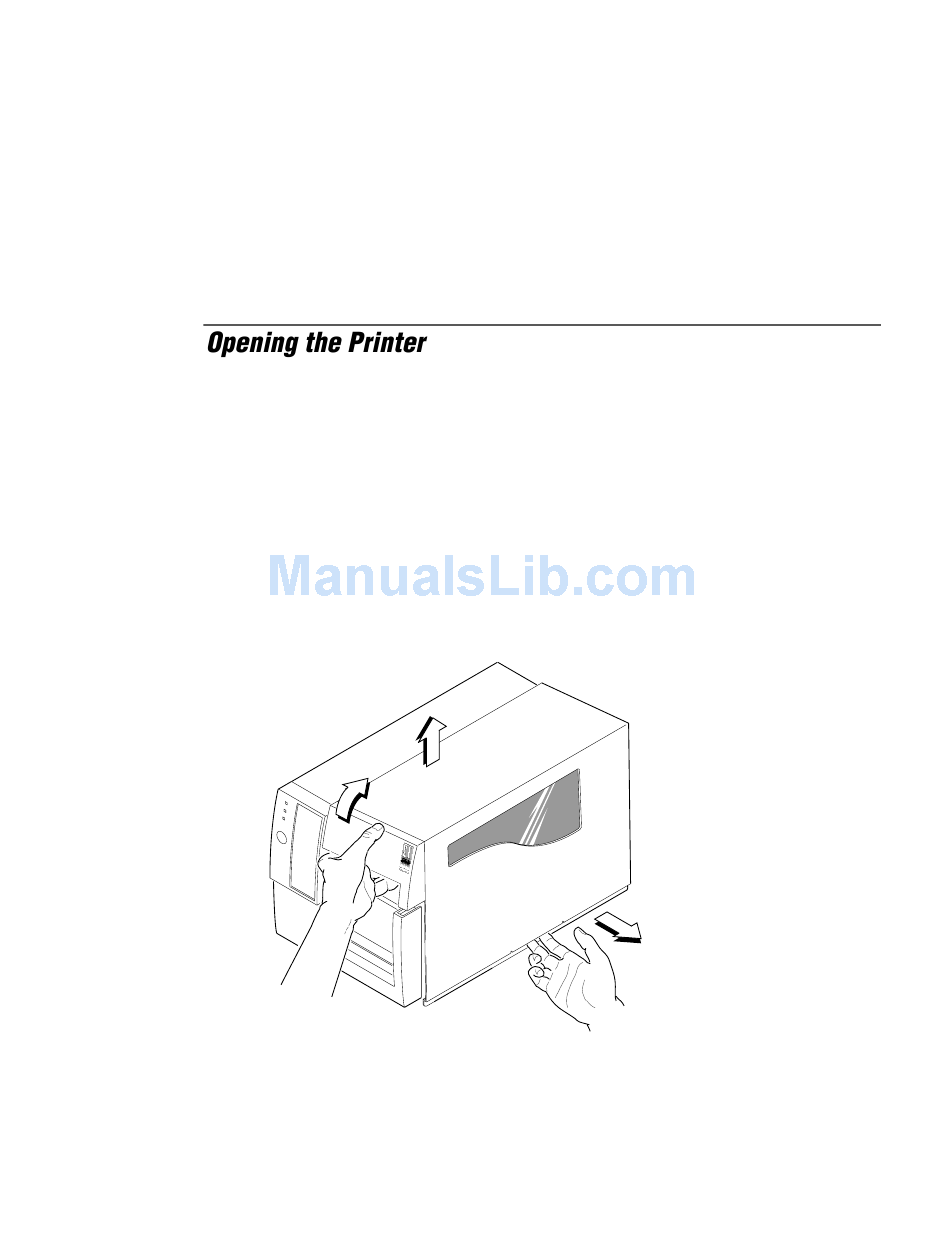

To open the printer
1. Place the fingers of your right hand between the two notches on the lower edge of
2. Grasp the front of the media cover with your left hand and lift the front of the
3. Lift the media cover away from the top of the printer.
1-6
end of the power cord into a grounded wall outlet or surge protector.
Power On LED lights, the Empty/Pause LED flashes, and the platen roller
advances. The yellow Empty/Pause LED then stays on steady because you have not
loaded media yet.
the media cover (the media cover release) and pull the bottom of the media cover
away from the base of the printer.
media cover upward to release it from the printer frame.
2
P o
w e
r /D
a ta
A le
r t
E m
p ty
/P
a u
s e
F e
e d
/P
a u
s e
I n t e
I n t e
r m e
r m e
c
c
3 4
0 0
3
1
3XXXU.005
