P9-0135-B ver. 1.0.3 - July 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Crosser M-MaxX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for medemagroup Mini Crosser M-MaxX

Summary of Contents for medemagroup Mini Crosser M-MaxX

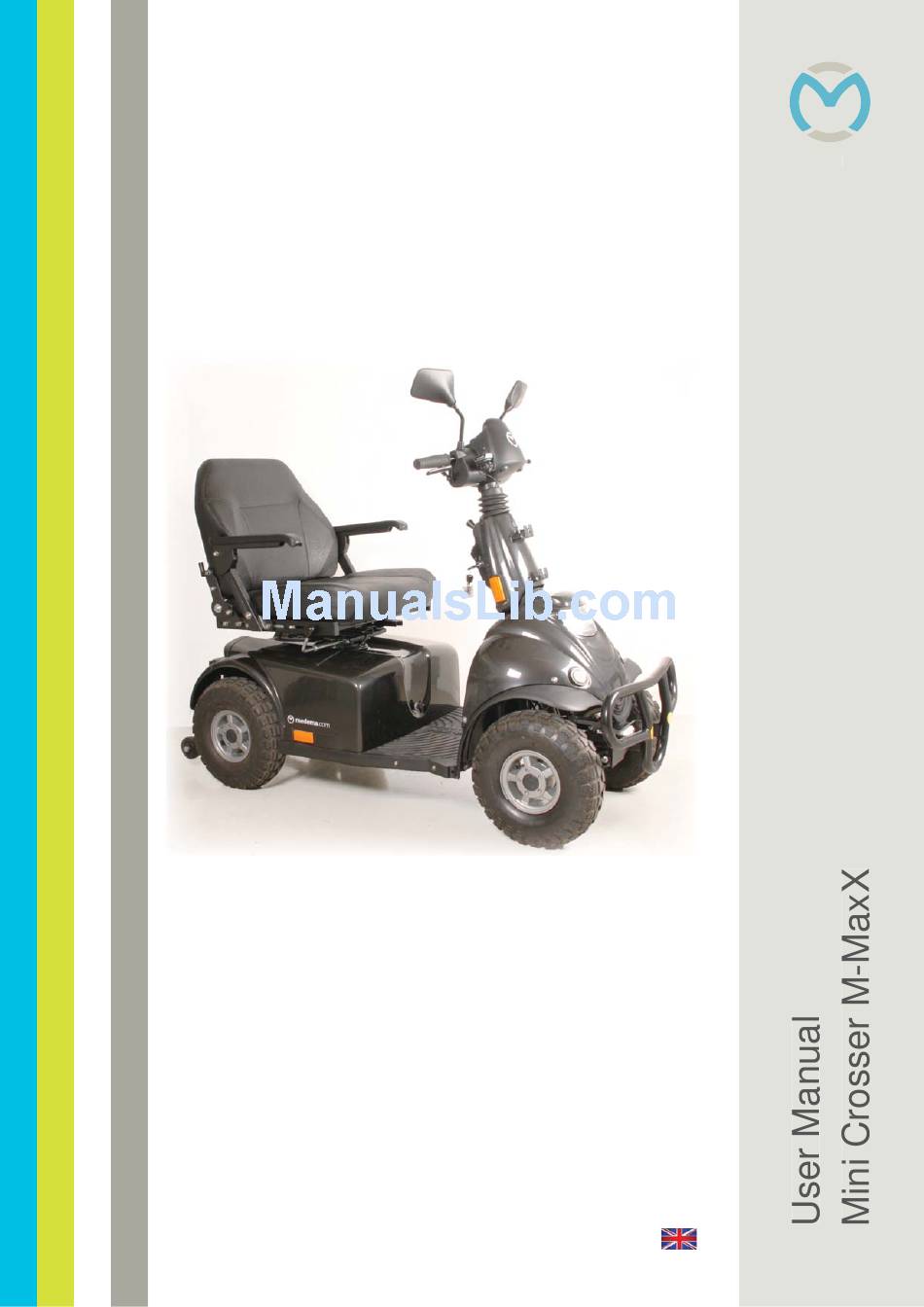

  • Page 1 medemagroup medemagroup P9-0135-B ver. 1.0.3 - July 2012...
  • Page 2 Medema Production A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: User guide P9-0135-B 2 of 52 Version 1.0.3/2012...

  • Page 3: Table Of Contents

    Transporting by motor vehicle ..........34 Transporting by plane ............34 Securing to vehicle fl oor with belts ........35 Dimensioned drawing, Mini Crosser M-MaxX 4W ....37 Introduction to seats - Ergo Standard ......... 38 Introduction to seats - Mando ..........40 Troubleshooting ..............

  • Page 4: Symbols

    Used to indicate sections on electromagnetic compatibility (EMC). Warning! The Mini Crosser M-MaxX is a powerful vehicle, equipped with 2 motors. One on each rear wheel. Therefore, careful training on the use of the vehicle is required. For safety reasons the vehicle must not be lent to persons who are not completely familiar with it.

  • Page 5: Introduction

    As a new user, you should pay particular attention to the section entitled “Driving the Mini Crosser M-MaxX”. The Mini Crosser M-MaxX is designed for safe travel for at least 10 years, up to a max. of 5,000 hours, provided it is serviced and safety-checked every year, corresponding to 500 hours of operation.

  • Page 6: Declaration Of Conformity

    Medema Production A/S Declaration of conformity Medema Production A/S hereby declares that: Machine: Mini Crosser Use: (Prescribed use in User Manual) Model No: M-MaxX Complies with the Medical Device Directive 93/42/EEC The product is made in accordance with the harmonized standard EN 12184 - Electrically powered wheelchairs, scooters and their chargers.

  • Page 7: Control Panel

    Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthorised opening, adjustment or modifi cation of the control panel.
  • Page 8 Medema Production A/S Designation Description Key switch To start the vehicle: Turn the key to driving position (1) When the Mini Crosser is turned on, the control system performs a safety check of the electrical system. The check lasts half a second. If the accelerator is operated during this time, the Mini Crosser will not be able to move until you have turned the key to 0 and back to 1.

  • Page 9: Preparations / Adjustments Prior To Use

    Medema Production A/S Preparations / Adjustments prior to use Adjusting the height of the seat Lift the seat off and remove the rear cover. Press the release button out and adjust the seat tube to the desired position. See the picture on the next page. Check that the seat height is correct and press the release button in again.
  • Page 10 Medema Production A/S Seat tube Release Seat tube in top position. There are fi ve holes for adjusting the seat tube. The release must be in a hole for the seat to be stable. User guide P9-0135-B 10 of 52...

  • Page 11: Seat Rotation

    Medema Production A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. Other seats that can be supplied for the Mini Crosser work on similar principles.

  • Page 12: Steering Column

    Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out.

  • Page 13: Serial Number

    Medema Production A/S Serial number All vehicles have a serial number plate showing the year of production and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc.

  • Page 14: Driving The Mini Crosser M-Maxx

    Mini Crosser. In general the following method should be followed: • Make sure that the Mini Crosser M-MaxX is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently.
  • Page 15 Medema Production A/S Braking systems There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch.
  • Page 16 Medema Production A/S Never drive when under the infl uence. This applies not only to alcohol, but also to drugs and medicines. Reduce speed immediately if you feel you are losing control. Always use the indicators when changing direction. Check that lights and indicators are working before driving off.
  • Page 17 Medema Production A/S New users are urged to practise the following in an area where there is no other traffi c: • Set the Mini Crosser to low speed. Drive forwards and backwards. Gradually turn the speed selector up and feel the change in the speed of the Mini Crosser.
  • Page 18 Medema Production A/S Traffi c regulations The traffi c legislation for scooters varies from country to country. Before starting to use the vehicle outdoors, it is the user’s responsibility to familiarise him/herself with the relevant legislation. The following rules apply in Denmark: Mobility vehicles such as the Mini Crosser with a maximum speed of up to 11.5 km/h count as cycles in traffi...
  • Page 19 Medema Production A/S Electromagnetic compatibility If the Mini Crosser starts making involuntary movements or if the brakes are released, turn the Mini Crosser off as soon as it is safe to do so. In certain circumstances a Mini Crosser can set off shop alarms.

  • Page 20: Specifi C Driving Situations

    Medema Production A/S Specifi c driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle.
  • Page 21 Medema Production A/S Up a ramp/hill • There is a risk of tipping over backwards if the seat is pushed back when you start driving up a slope, e.g. a ramp. • Pull the seat forward! Check that any ramp is stable.

  • Page 22: Long Hills/Diffi Cult Ground

    Medema Production A/S Across a slope • Lean into the slope. • Avoid sudden and sharp movements. This is particularly relevant when reversing. • Always drive at low speed. Long hills/diffi cult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight.

  • Page 23: Anti-Tilt Wheels / Stabilisers

    Medema Production A/S Anti-tilt wheels / stabilisers The Mini Crosser is a very stable vehicle. HOWEVER, in the case of incorrect weight distribution or careless driving there is a risk of tipping over. We therefore recommend fi tting anti-tilt wheels in such circumstances.

  • Page 24: General Care And Maintenance

    Medema Production A/S General care and maintenance A Mini Crosser M-MaxX does not require much maintenance. It should be kept in a generally good condition, however. The following should be checked regularly: • Tyre pressure (if pneumatic tyres are fi tted) •...

  • Page 25: Insurance

    fi re. (For further information see the Service Manual.) Insurance In the eyes of the law a Mini Crosser M-MaxX with a maximum speed of 11.5 km/h is a cycle, so separate insurance is not required.

  • Page 26: Batteries

    Medema Production A/S Batteries The Mini Crosser uses sealed, maintenance-free GEL batteries (Exide 12 V/56 Ah or AGM 12 V/71 Ah). They do not generate gas and do not have to be topped up with water. Charging Please NOTE that the Mini Crosser can be equipped with several types of charger (ask your dealer for information on the various types).
  • Page 27 Medema Production A/S Avoid draining the batteries completely. We recommend charging the batteries in a heated room. If it is not possible to do this every day, it is a good idea to charge the Mini Crosser in a heated room (approx. 20°C) once a week.

  • Page 28: Battery Disposal

    In the case of long-term storage we recommend covering the Mini Crosser M to protect it from dust, rain and sunlight. Cleaning Clean the Mini Crosser M-MaxX with a damp cloth. If necessary, wipe dry with a chamois leather. Wipe the covers dry and polish with car wax.

  • Page 29: Changing The Wheels

    Medema Production A/S Changing the wheels If you get a puncture in one of the pneumatic tyres or if a tyre is so badly worn that it needs to be replaced, follow the instructions below. Tyres and inner tubes can be purchased from the authorised dealer who supplied the Mini Crosser.
  • Page 30 Medema Production A/S Remove the fl ange with the 5 screws (5mm Allen). Replace or patch the tube. Ensure that there are no foreign objects in the tyre before the tube is replaced. Pump in a little air but do not fi...

  • Page 31: Fuses

    Medema Production A/S Fuses The Mini Crosser has the following protection systems: • Automatic overload protection, which limits the current to the motor. This protection is integral to the control system and cannot be adjusted. It prevents both the control system and the motor from being overloaded.

  • Page 32: Brakes

    Medema Production A/S Brakes There are three braking systems on the Mini Crosser M: • Motor brake • Magnetic brake • Motor brake: adjusts vehicle speed also when going downhill. • Magnetic brake: automatic and comes on when accelerator is released.

  • Page 33: Towing

    Medema Production A/S Disengagement lever pushed up Electrical release • Hold the disengagement button pressed in to disengage (can be pushed or towed with max 5 km/h – see section about Towing). As soon as you let go of the disengagement button, the motor brake is working again (normal driving now possible).

  • Page 34: Transporting By Motor Vehicle

    Medema Production A/S Transporting by motor vehicle The Mini Crosser must always be restrained during transport in a motor vehicle or trailer. Avoid lifting by the seat, covers, handlebars and armrests If you just need to lift the scooter slightly, take hold of it between the rear lights and by the front bumper.

  • Page 35: Securing To Vehicle Fl Oor With Belts

    Medema Production A/S Securing to vehicle fl oor with belts Dahl Engineering belt set for securing in motor vehicles. Item No. C2-0242 ALWAYS use four belts at the back and two at the front. The belts must always be attached to approved fi ttings in the vehicle and the four eyes welded to the scooter.
  • Page 36 Medema Production A/S Attachment point Attachment point Greater than the anchorage points on the Greater than scooter the anchorage Centre line points on the scooter User guide P9-0135-B 36 of 52 Version 1.0.3/2012...

  • Page 37: Dimensioned Drawing, Mini Crosser M-Maxx 4W

    Medema Production A/S Dimensioned drawing, Mini Crosser M-MaxX 4W : 290 mm 1030 mm 1500 mm 1620 mm User guide P9-0135-B 37 of 52 Version 1.0.3/2012...

  • Page 38: Introduction To Seats - Ergo Standard

    Medema Production A/S Introduction to seats - Ergo Standard Lever for seat rotation Pull the lever back to release the seat. The seat can then be turned 90° to either side with a stop every 45°. The lever is spring-loaded and the seat locks automatically when the lever is released.
  • Page 39 Medema Production A/S Adjusting the angle of the backrest The angle of the backrest can be adjusted by about 30°. This can be done by undoing the adjusting screw and changing the position of the spacer. Do the screw up again after making the adjustment.

  • Page 40: Introduction To Seats - Mando

    Medema Production A/S Introduction to seats - Mando Adjusting the angle of the backrest: The angle of the backrest can be adjusted by about 30° by raising this lever. Adjusting the angle of the armrest: The angle of the armrest can be adjusted by turning this screw.

  • Page 41: Troubleshooting

    Medema Production A/S Troubleshooting The following is a list of various problems that, in our experience, may occur. The list gives possible causes and remedies. Problem Possible causes Remedy The Mini Crosser will not The key has not been Turn the key and wait 5 turned to start.
  • Page 42 Medema Production A/S Problem Possible causes Remedy The “ready” lamp on the The fuse in the charger Contact supplier. charger lights up even has blown. when partly discharged The switch in the charging Contact suppliers - read batteries are connected.
  • Page 43 Medema Production A/S HPD fault 1. Wrong sequence of KSI, power activation and input data for throttle 2. Wrongly set potentiometer for throttle PROC/WIRING HPD fault displayed 1. Wrongly set throttle FAULT for >5 sec. 2. Potentiometer for throttle defective 3.

  • Page 44: Programming

    Medema Production A/S Programming NOTE! For safety reasons, modifi cations may only be made by trained personnel, such as Mini Crosser service engineers and consultants or authorised service personnel at mobility centres, etc. Technical data M-MaxX General information: Transport height without seat (Steering column folded...
  • Page 45 Medema Production A/S M-MaxX M-127-3-065 13x3.00-8” ext. Ø340 mm Wheel black - T and M-model 3,5 bar T-127-3-068 13x3.00-8” ext. Ø340 mm Wheel black puncture free - T and M-model Classifi cation, ISO Class C Seats: Effective seat width: Ergo Standard...
  • Page 46 Medema Production A/S M-MaxX 110/115 Ah batteries Option Maximum driving distance with new batteries at +20° on 41 km fl at, fi rm surface Optimum battery capacity is reached after approx. 20 charges / discharges. Battery type: Standard: 2 x 12 V / 75 Ah...

  • Page 47: Own Notes

    Medema Production A/S Own notes User guide P9-0135-B 47 of 52 Version 1.0.3/2012...

  • Page 48: International Addresses

    Medema Production A/S International addresses Australia / New Zealand Germany Pride Mobility Products Baden Württemberg Bavaria Tel: +61 3 9706-4611 Draisin GmbH Fax: +61 3 9706-4622 Tel: (+49) 0 78 41 66 77 0 Email: prideaustralia@pride-mobility.com.au Fax: (+49) 0 78 41 66 77 88 Internet: www.pridemobility.com/international/Australia/australia.asp...
  • Page 49 Medema Production A/S Holland Switzerland Richard van Seenus Nederland B.V. Degonda Rehab SA Tel: +31 (0) 36 53 20 450 Tel: +41 033 345 83 00 Fax: +31 (0) 36 53 21 308 Fax: +41 033 345 83 01 Email: info@vanseenus.nl Email: info@turbo-twist.ch...
  • Page 50 Medema Production A/S User guide P9-0135-B 50 of 52 Version 1.0.3/2012...
  • Page 51 Medema Production A/S User guide P9-0135-B 51 of 52 Version 1.0.3/2012...
  • Page 52 medemagroup...
