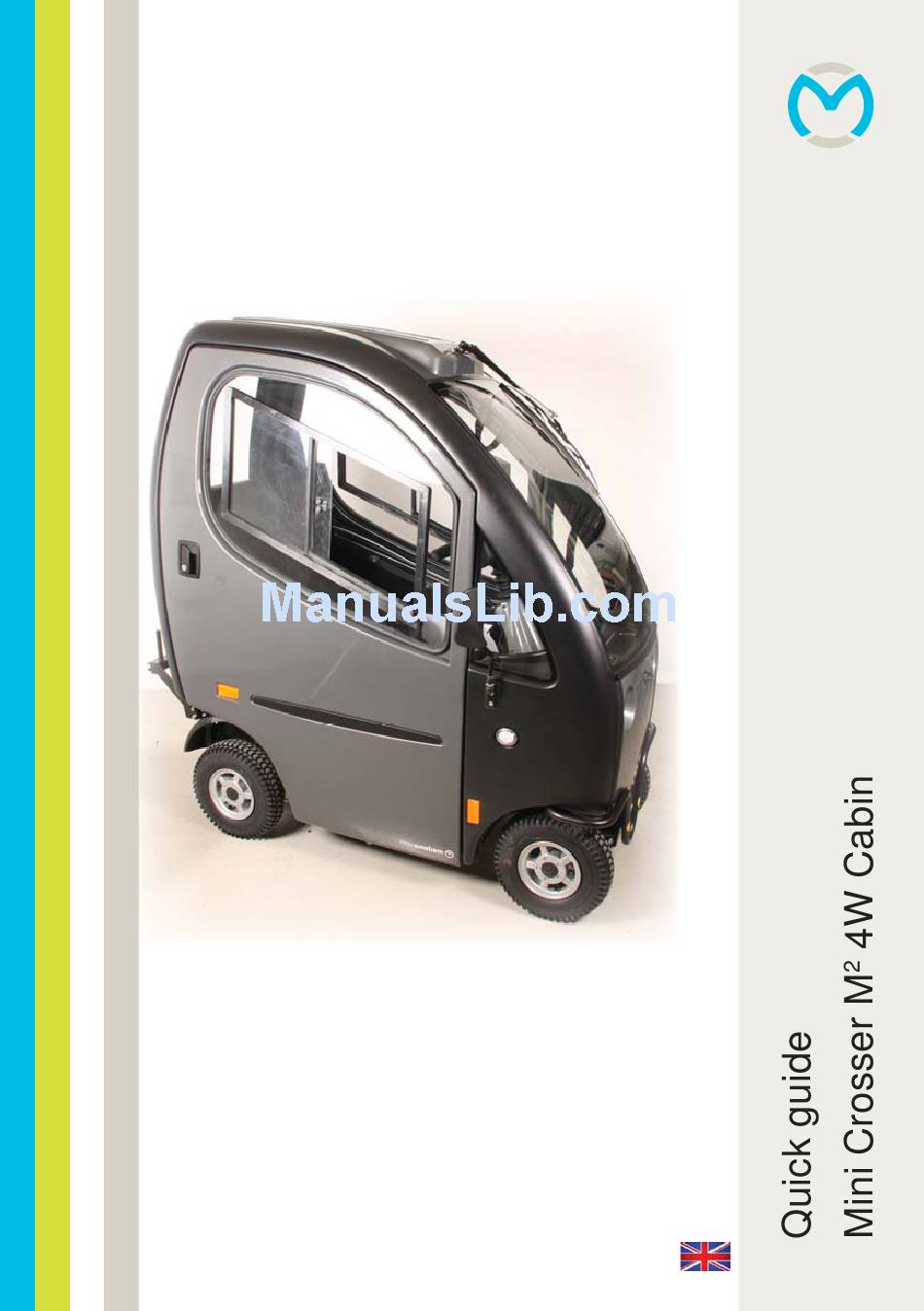

- Page 1 P9-0152-Q ver. 2.0.0 - February 2012...
- Page 2 Medema Production A/S 2 of 24 Quick guide P9-0152-Q Version 2.0.0/2012...
-
Page 3: Table Of Contents
Medema Production A/S Contents Introduction ....................4 Control panel ..................... 5 User menu ....................6 Steering column ..................10 Seat rotation ..................... 11 Fuel for heater..................12 Windscreen wiper / washer ..............13 Driving the Mini Crosser M Cabin ............14 Getting in and out ................. -
Page 4: Introduction
Medema Production A/S Introduction Congratulations on your new Mini Crosser M 4W Cabin electric mobility scooter. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classifi... -
Page 5: Control Panel
Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthorised opening, adjustment or modifi cation of the control panel. Menu / information Actual speed Mileage... -
Page 6: User Menu
Medema Production A/S User menu Term Description Menu / information Press the button and a menu at the top of the display switches between ”Date”, ”Time”, ”Complete km”, ”Complete running time”, ”Battery Voltage” Service ”and” inclination ”.”Slope” is optional, and appears only if it is engaged. Button Menu / information are also used to modify the user parameters. - Page 7 Medema Production A/S Term Description Hand brake Works on the left rear wheel and should only be used as extra brake / emergency brake and parking brake. It can be blocked in the locked position. Also available as a foot brake. Accelerator Front arm activates slowly and the Mini Crosser will start running forward.
- Page 8 Medema Production A/S Term Description Horn Electric horn which can be programmed in volume in the User Menu. Activated by pressing the horn button. Charging socket Turn off the Mini Crosser (key in position 0) during charging. Note that it is not possible to run while the batteries recharge.
- Page 9 Medema Production A/S Term Description Inclination Alarm sideways By exceeding the preset value, the symbol fl ashes and the horn hoots, if the parameter is enabled. Inclination Alarm forw./backw. By exceeding the preset value, the symbol illuminate and the horn hoots, if the parameter is enabled. Overheating step 1 Step 1: The symbol fl...
-
Page 10: Steering Column
Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out. The height of the steering column can be adjusted approx. -
Page 11: Seat Rotation
Medema Production A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. Other seats that can be supplied for the Mini Crosser work on similar principles. -
Page 12: Fuel For Heater
Medema Production A/S Fuel for heater The tank for fuel is placed behind the seat, and fi lled from the outside. Use ONLY paraffi n or diesel. In the front, right side of the Mini Crosser M Cabin, you fi nd the the exhaustion from the heater. -
Page 13: Windscreen Wiper / Washer
Medema Production A/S Knob to: - turn heater on/off - ajusting the temperature - remove fault code. Indicator light for on/off and fault code readout. For more information: see Webasto user guide. Windscreen wiper / washer Start the windscreen wiper by turning this knob. -
Page 14: Driving The Mini Crosser M Cabin
Medema Production A/S Driving the Mini Crosser M Cabin Getting in and out It is important to learn a safe technique for getting in and out of the Mini Crosser. In general the following method should be followed: Cabin • Make sure that the Mini Crosser M is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was... -
Page 15: When Driving In Traffi C
Medema Production A/S When driving in traffi c... Be particularly aware of the following when driving in traffi c: • The Mini Crosser is a low vehicle and not always easy for other road users to see. Make quite sure that other road users have seen you before driving onto the highway. -
Page 16: Braking Systems
Medema Production A/S Braking systems There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch. -
Page 17: Charging
Medema Production A/S Charging The Mini Crosser should be charged while not in use. The charger supplied from the factory switches to trickle charging (very low power consumption) automatically when the batteries are fully charged. You can therefore leave the charger connected until the Mini Crosser is next used. The charger cannot overcharge the batteries. -
Page 18: Serial Number
Medema Production A/S Serial number All vehicles have a serial number plate showing the year of production and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc. -
Page 19: Specifi C Driving Situations
Medema Production A/S Specifi c driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle. Do not stop halfway, but reduce speed once the vehicle is up. - Page 20 Medema Production A/S Down a ramp/hill • Check that any ramp is stable. • Lean back. • Drive slowly down. Avoid stopping midway on short, steep slopes. On long hills, it is advisable to stop every now and again if you feel your speed is getting too high.
-
Page 21: Long Hills/Diffi Cult Ground
Medema Production A/S Long hills/diffi cult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight. To protect the Mini Crosser motor from overheating, there is a built-in thermoswitch, which initially sets the Mini Crosser to half speed. -
Page 22: Flash Codes
Medema Production A/S Flash codes If there is an electronic fault, a number of lamps in the battery indicator will light up. The following table shows what they mean. Lamps Causes Remedy 1 lamp The batteries need charging or the Check all connections between the connection to a battery is poor. -
Page 23: Programming
Medema Production A/S Programming NOTE! For safety reasons, modifi cations may only be made by trained personnel, such as Mini Crosser service engineers and consultants or authorised service personnel at mobility centres, etc. 23 of 24 Quick guide P9-0152-Q Version 2.0.0/2012... - Page 24 medemagroup...
