- Page 1 P9-0101-Q ver. 1.0.0 - March 2011...
- Page 2 Medema Production A/S 2 of 16 Quick guide P9-0101-Q Version 1.0.0/2011...
-
Page 3: Table Of Contents
Medema Production A/S Contents Quick guide to the Mini Crosser Nordic ..........4 Introduction ....................4 Control panel ..................... 5 Seat rotation ....................7 Steering column ..................8 Charging ..................... 9 Serial number................... 11 Driving the Mini Crosser E..............11 Getting in and out ................. -
Page 4: Quick Guide To The Mini Crosser Nordic

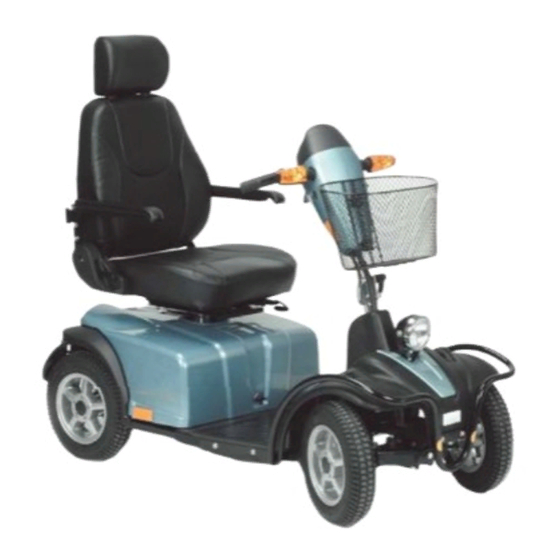

Quick guide to the Mini Crosser Nordic Introduction Congratulations on your new electric mobility scooter, Mini Crosser Nordic. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classifi... -
Page 5: Control Panel
Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. Hazard warning lights Battery indicator Light switch Speed selector Indicator lights, Accelerator (four-fi nger control) Horn Charging socket Accelerator (four-fi... - Page 6 Medema Production A/S Designation Description Key switch To start the vehicle: Turn the key to driving position (1) When the Mini Crosser is turned on, the control system performs a safety check of the electrical system. The check lasts half a second. If the accelerator is operated during this time, the Mini Crosser will not be able to move until you have turned the key to 0 and back to 1.
-
Page 7: Seat Rotation
Medema Production A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. The release lever is normally mounted on the right, but can be put on the left if so wished. -
Page 8: Steering Column
Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out. The height of the steering column can be adjusted up/down. -
Page 9: Charging
Medema Production A/S Charging The Mini Crosser should be charged while not in use. The charger supplied from the factory switches to trickle charging (very low power consumption) automatically when the batteries are fully charged. You can therefore leave the charger connected until the Mini Crosser is next used. The charger cannot overcharge the batteries. - Page 10 Medema Production A/S If there is an electronic fault, a number of lamps in the battery indicator will light up. The following table shows what they mean. Further information: See User manual. Lamps Causes Remedy 1 lamp The batteries need charging or the Check all connections between the connection to a battery is poor.
-
Page 11: Serial Number
Medema Production A/S Serial number All vehicles have a serial number plate showing the year of production and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc. - Page 12 Medema Production A/S General safety advice: • Make sure that the backrest is upright and the seat is as low as possible. • Positioning belts are recommended if the user is unable to maintain a good driving posture independently. • Adjust your driving to road conditions.
-
Page 13: When Driving In Traffi C
Medema Production A/S When driving in traffi c... Be particularly aware of the following when driving in traffi c: • The Mini Crosser is a low vehicle and not always easy for other road users to see. Make quite sure that other road users have seen you before driving onto the highway. -
Page 14: Brakes
Medema Production A/S Brakes There are three braking systems on the Mini Crosser E. • Motor brake • Magnetic brake • Handbrake • Motor brake: adjusts vehicle speed also when going downhill. • Magnetic brake: automatic and comes on when accelerator is released. It also acts as a parking brake when the Mini Crosser is at a standstill. -
Page 15: Own Notes
Medema Production A/S Own notes 15 of 16 Quick guide P9-0101-Q Version 1.0.0/2011... - Page 16 medemagroup...
