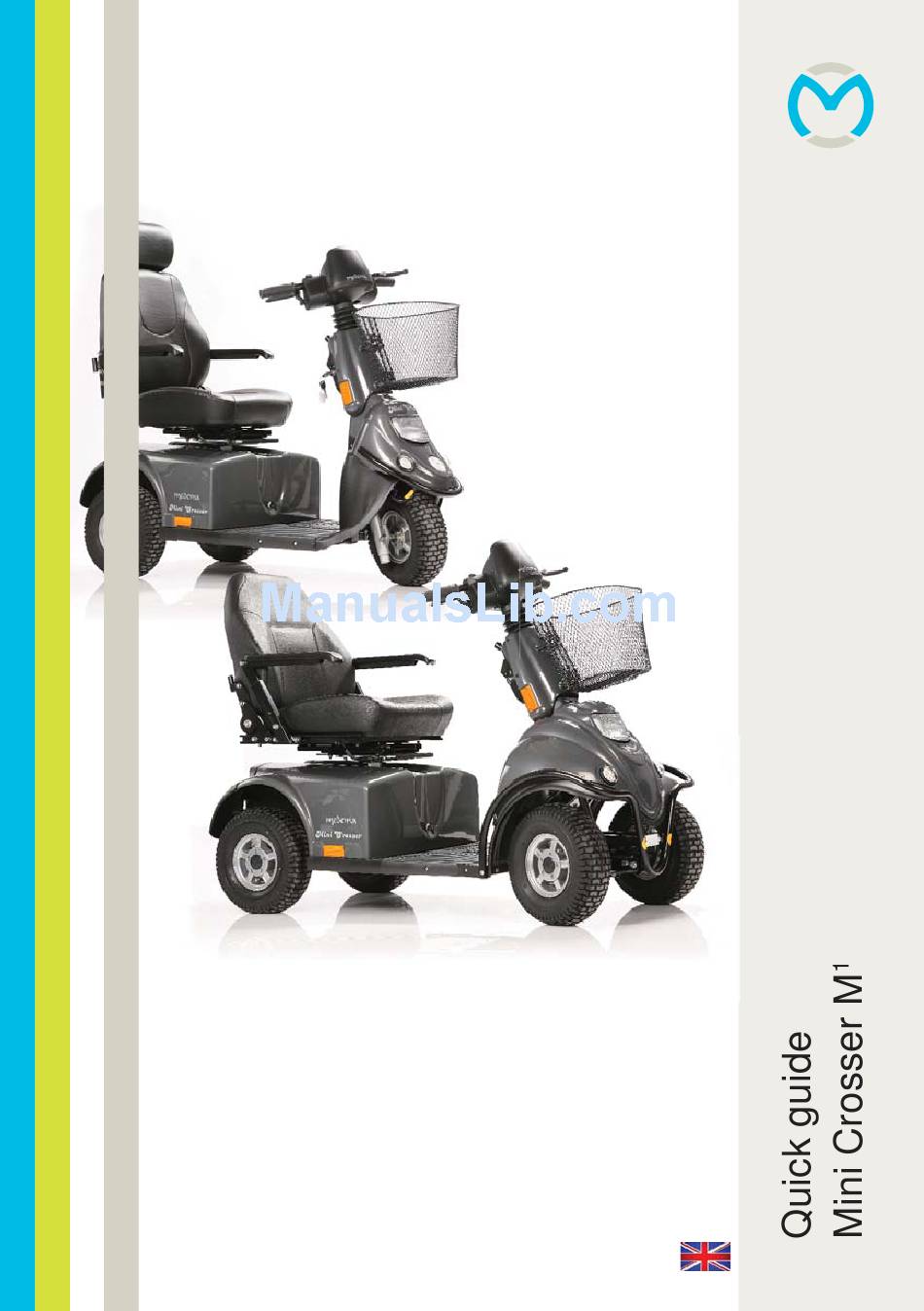

- Page 1 P9-0155-Q ver. 2.0.3 - September 2013...
- Page 2 Medema Production A/S 2 of 16 Quick guide P9-0155-Q Version 2.0.3/2013...
-
Page 3: Table Of Contents
Medema Production A/S Contents Quick guide to the Mini Crosser M ............4 Introduction ....................4 Control panel ..................... 5 Seat rotation ....................7 Steering column ..................8 Charging ..................... 9 Battery indicator ..................10 Serial number................... 12 Driving the Mini Crosser M .............. -
Page 4: Quick Guide To The Mini Crosser M
Medema Production A/S Quick guide to the Mini Crosser M Introduction Congratulations on your new Mini Crosser M electric mobility scooter. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classifi... -
Page 5: Control Panel
Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. Battery indicator Hazard warning lights Light switch Speed selector Handbrake Indicator lights, R/L Indicator lights, Accelerator (four-fi nger control) Horn Horn Lever for adjusting the angle of the... - Page 6 Medema Production A/S Designation Description Key switch To start the vehicle: Turn the key to driving position (1) When the Mini Crosser is turned on, the control system performs a safety check of the electrical system. The check lasts half a second. If the accelerator is operated during this time, the Mini Crosser will not be able to move until you have turned the key to 0 and back to 1.
-
Page 7: Seat Rotation
Medema Production A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. Other seats that can be supplied for the Mini Crosser work on similar principles. -
Page 8: Steering Column
Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out. Adjusting the height of the handlebars. -
Page 9: Charging
Medema Production A/S Charging The Mini Crosser should be charged while not in use. The charger supplied from the factory switches to trickle charging (very low power consumption) automatically when the batteries are fully charged. You can therefore leave the charger connected until the Mini Crosser is next used. The charger cannot overcharge the batteries. -
Page 10: Battery Indicator
Medema Production A/S Battery indicator If there is an electronic fault, a number of lamps in the battery indicator will light up. The following table shows what they mean. For further information on troubleshooting see the User Manual. Lamps Causes Remedy 1 lamp The batteries need charging... - Page 11 Medema Production A/S Lamps Causes Remedy 9 lamps Poor connection to motor Check the connections from brake. brake to controller, or push the brake lever up. Magnetic brake is Check that the vehicle is not disengaged. disengaged. 10 lamps The controller has been Check all connections from supplied with a high voltage the batteries to the controller.
-
Page 12: Serial Number
Crosser. In general the following method should be followed: • Make sure that the Mini Crosser M is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently. - Page 13 Medema Production A/S General safety advice: • Make sure that the backrest is upright and the seat is as low as possible. • Positioning belts are recommended if the user is unable to maintain a good driving posture independently. • Adjust your driving to road conditions.
-
Page 14: When Driving In Traffi C
Medema Production A/S When driving in traffi c... Be particularly aware of the following when driving in traffi c: • The Mini Crosser is a low vehicle and not always easy for other road users to see. Make quite sure that other road users have seen you before driving onto the highway. -
Page 15: Braking Systems
Medema Production A/S Braking systems There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch. - Page 16 medemagroup...
