3.11 Audio Connectors

SAGP-845EV has an onboard audio controller (CMEDIA CMI8738LX) that connects
input and output devices through pin-headers (CN4). The audio controller
supports 5.1 channel sounds including LINEOUT, REAR, and CENTER/BASS.
CD-IN (CDIN1).

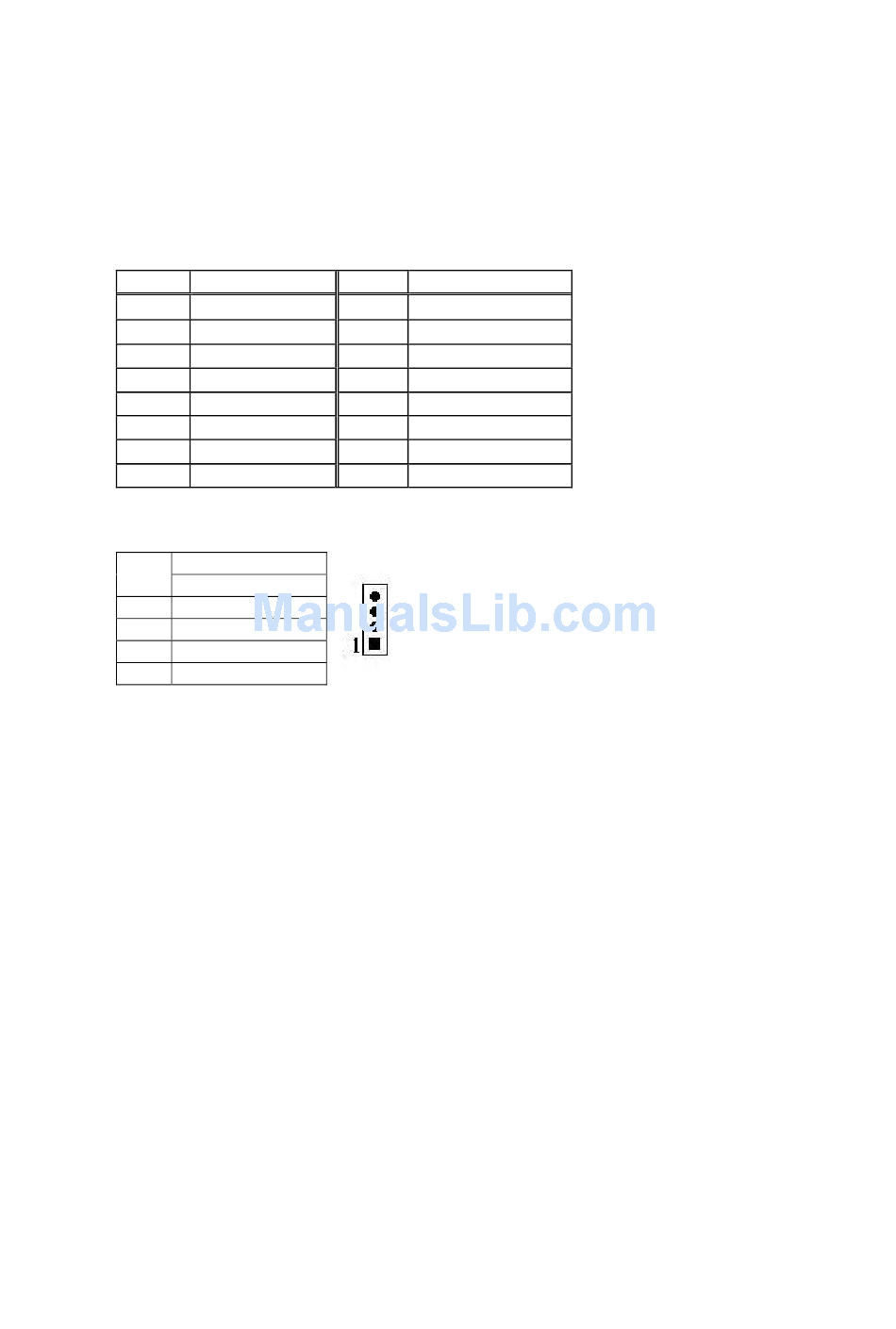

• CN4: Audio Connector (2x8_2.00mm)
PIN Description
1 LINEOUT_L
3 LINEOUT_R
5 CENTER
7 GROUND
9 LININ_L
11 GROUND
13 REAR_L
15 MIN_IN
• CDIN1: CD-IN Connector (1X4_2.54mm pin head)
Description
PIN
CDIN1
1 RIGHT
2 GND
3 GND
4 LEFT
PIN Description
2 GROUND
4 GROUND
6 BASS
8 GROUND
10 LINEIN_R
12 GROUND
14 REAR_R
16 GROUND
