PC-CARD-DAS16/16AO User's Guide
After a conversion is made, the sample is stored in a 4096-word (sample) FIFO buffer from which it may be
retrieved one sample at a time or in blocks via REP-INSW transfers.
How does the FIFO size and design affect throughput?
The 4096-sample FIFO buffer stores samples from the A/D converter as they are being converted. When a
block of samples is ready and when the PC is ready, the FIFO is emptied into system memory. Most FIFO
designs employ a half-full transfer initiation circuit. When the FIFO is half full, the transfer request is made.
Samples continue to fill the second half of the FIFO while the CPU responds to the transfer request and
transfers data to system memory.
A/D pacer clock
Many analog acquisitions can be handled by a simple on-board rate divider created by combining an XTAL
with a programmable counter. For those, the on-board 82C54 programmable rate generator (counter) supplies
the pacing. However, some applications require customized rate control.
The PC-CARD-DAS16/16AO analog conversions may be externally triggered and thereby synchronized with
events external to the computer. Conversions can be held off until some external event, such as a not-to-exceed
condition is met. Conversions may be externally gated so that samples are taken only when an event of interest
is occurring, such as a process going over normal limits.

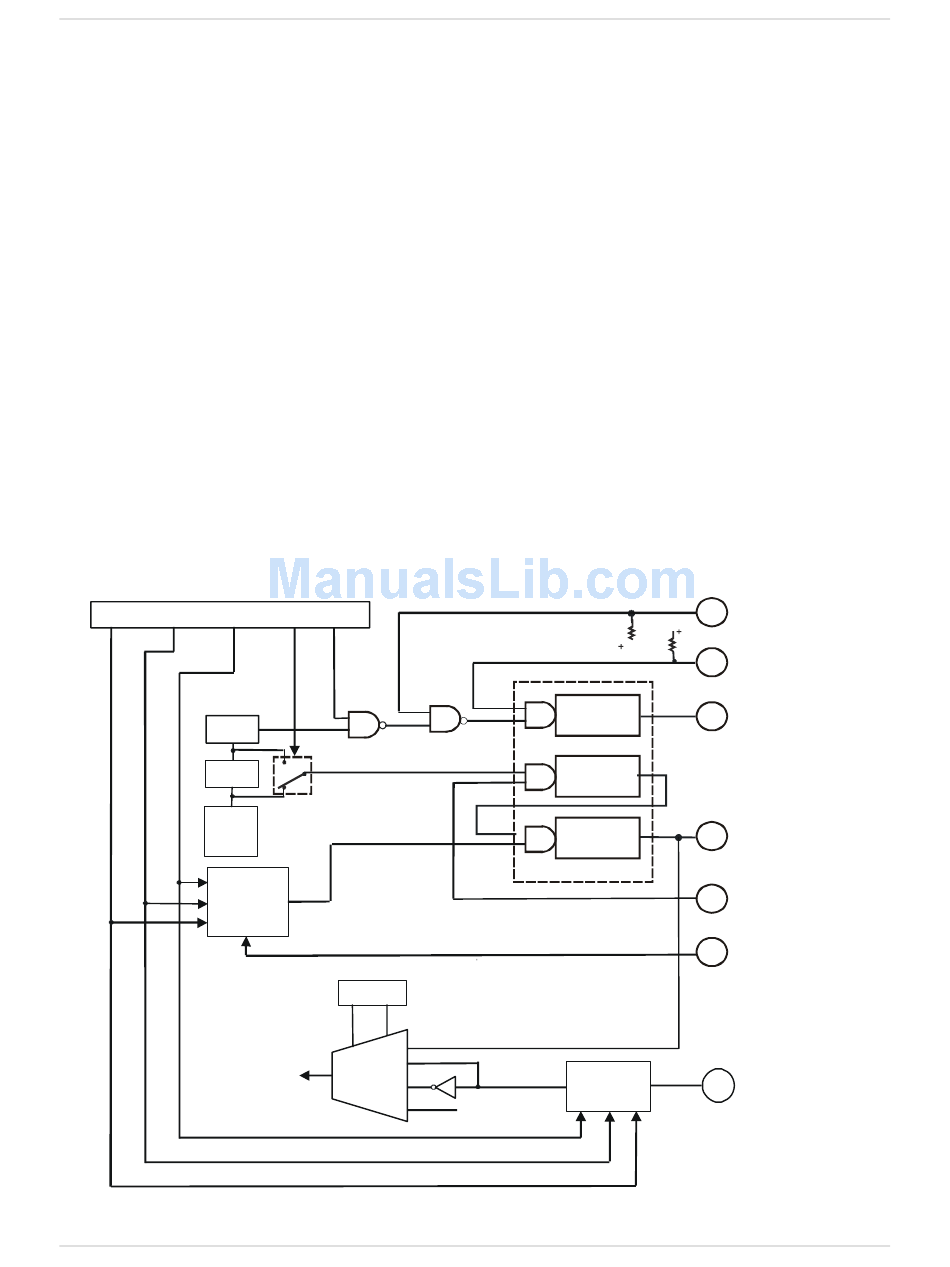

Figure 9
shows a logic diagram of the A/D pacer clock and counters.
Control Register BASE + 6h
TRGPOL TRGSEL
TRGCLR
1/10
1/10
10 MHz
OSC
Trigger
Logic
A/D Convert CLock
CLK2
CTR1
0
1
Control register
TS1
TS0
BASE + 4h
0 3
1
2
MUX
1
0
S/W CONVERT
Figure 9. Counter/pacer logic diagram
10K
5
GATE
Counter 1
CLK
CLK
Counter 2
GATE
CLK
Counter 3
GATE
Trigger
Logic
18
Functional Details
CRT1 CLK
39
5
10K
40
CTR1 GATE
OUT
41
CTR1 OUT
OUT
OUT
A/D INTERNAL
47
PACER OUT
44
A/D PACER GATE
A/D EXTERNAL
45
TRIGGER
A/D EXTERNAL
42
CLOCK
