PC-CARD-DAS16/16AO User's Guide
Caution! Do not exceed the input specifications. There are no socketed or user serviceable parts in a PC-
CARD-DAS16/16AO. Check the specifications and input voltages before connecting any signals.
CPCC-50F-39
49
Key
1
50-pin female IDC connector.
Details on the CPCC-50F-39 cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=105&pf_id=1379.
CPCC-50M-4
If your application requires a cable that is longer than one meter in length, use the CPCC-50M-4 four-inch
cable, and connect to a C50FF-x cable.
50-pin male IDC connector.
Connect to a C50FF-x cable.
Details on the CPCC-50M-4 cable are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=96&pf_id=1380.
50
2

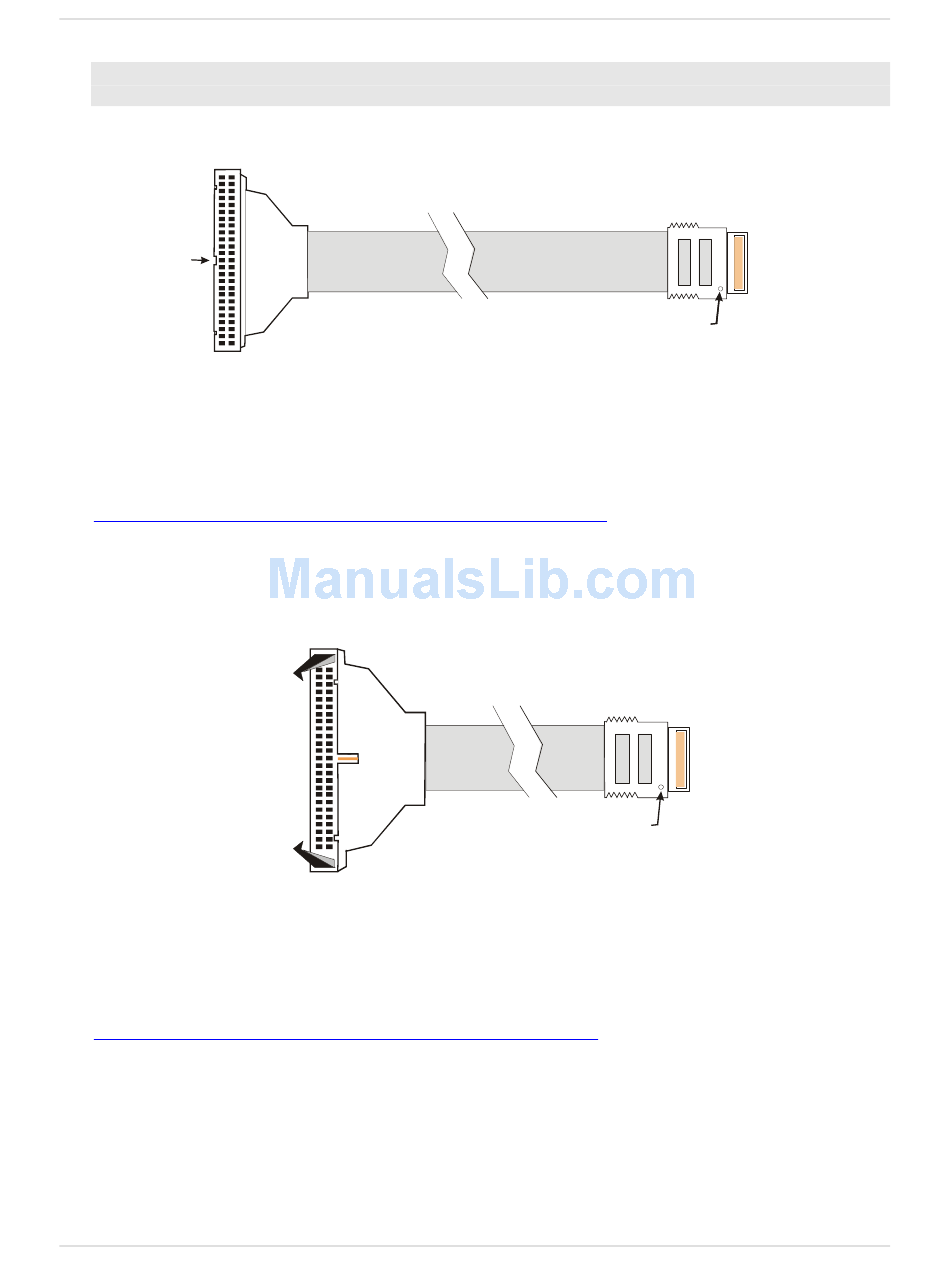

Figure 6. CPCC-50F-39 cable connections
50
49
2
1
Figure 7. CPCC-50M-4 cable connections
Installing the PC-CARD-DAS16/16AO
50-pin micro connector.
Connect to the I/O connector
on the PC-CARD
with the dot facing UP.
Dot
50-pin micro connector.
Connect to the I/O connector
on the PC-CARD
with the dot facing UP.
14
50
1
Dot
50
1
