Audio - Strand Lighting 200 Console Operation Manual

Audio

Audio allows the console the take an audio signal that will
trigger steps of an effect to the beat of the music.

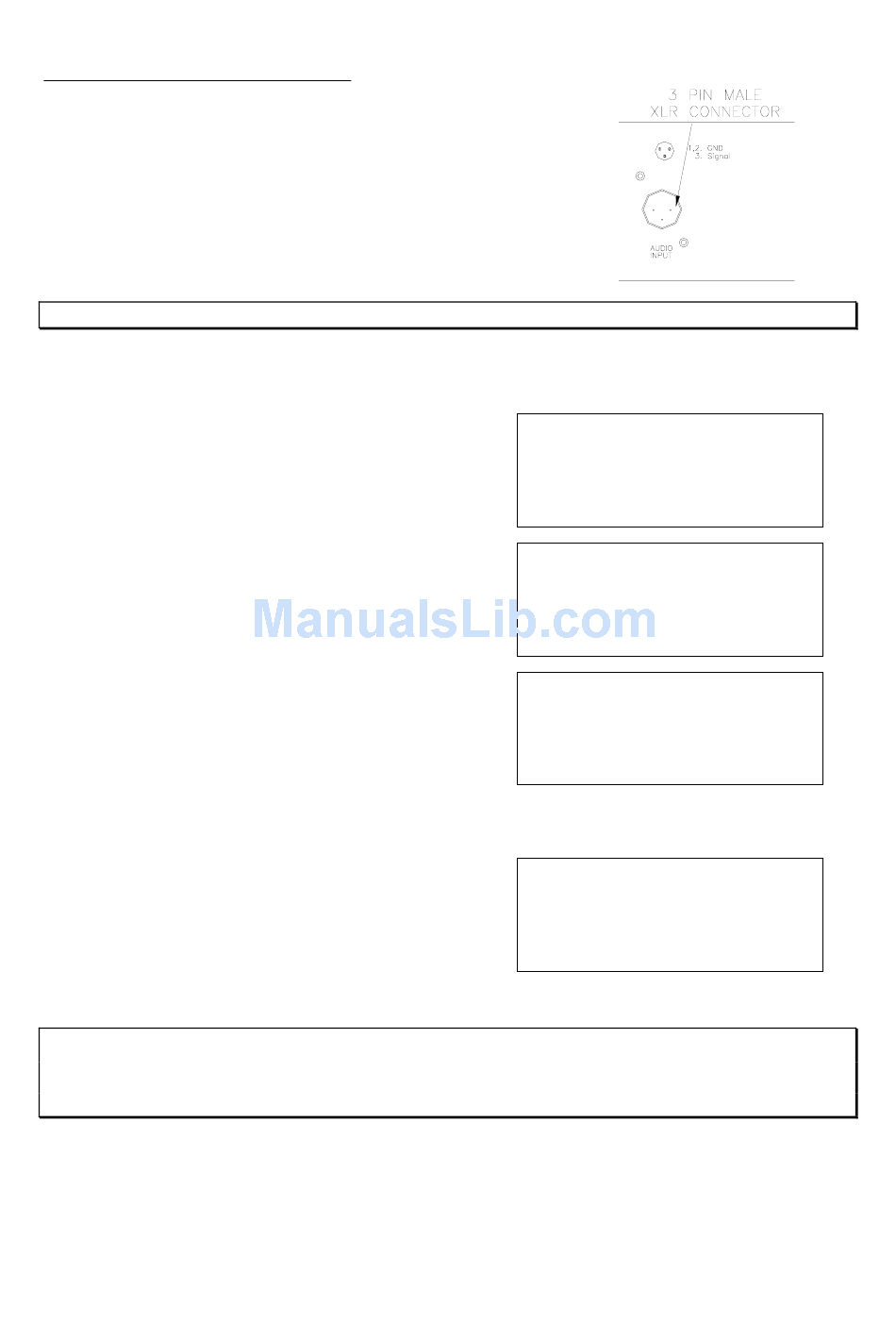

Plug the audio device to the 200 console via the AUDIO
INPUT 3 Pin XLR connector.
Note: Signal input impedance is 4.7K ohm
The audio setup allows the operator to select bandwidth for the signal. Follow the steps
below...
Press F3 to go into the Setup menu.
Notice the cursor flashing over the 1 for patch.
Press Next to go to the next setup screen.
Notice the cursor flashing over the 4 for audio.
Press F3 to Confirm.
This feature allows the operator to select high pass, band pass or low pass audio filter.
Num lock LED will now be on and any effect(s)
disabled. Notice the cursor flashing over the 1 for
high pass. Use the arrow keys to scroll between the
options on screen.
Press F3 to Confirm.
Note : High pass trigger frequency > 1KHz.
Band pass trigger frequency between 300Hz – 1KHz
Low pass trigger frequency < 300Hz
Page 38
Scene Pg: 1
Preset A: FL
Scene FX
1. Patch
2. Self Test
3. Midi
Esc Next
4. Audio
5. LCD setting
6. Show file
Esc Next
1. High pass
2. Band pass
3. Low pass
Esc
Strand 200 Console Manual
Fx Pg: 2
B: 00
Setup
Confirm
Confirm
Confirm
