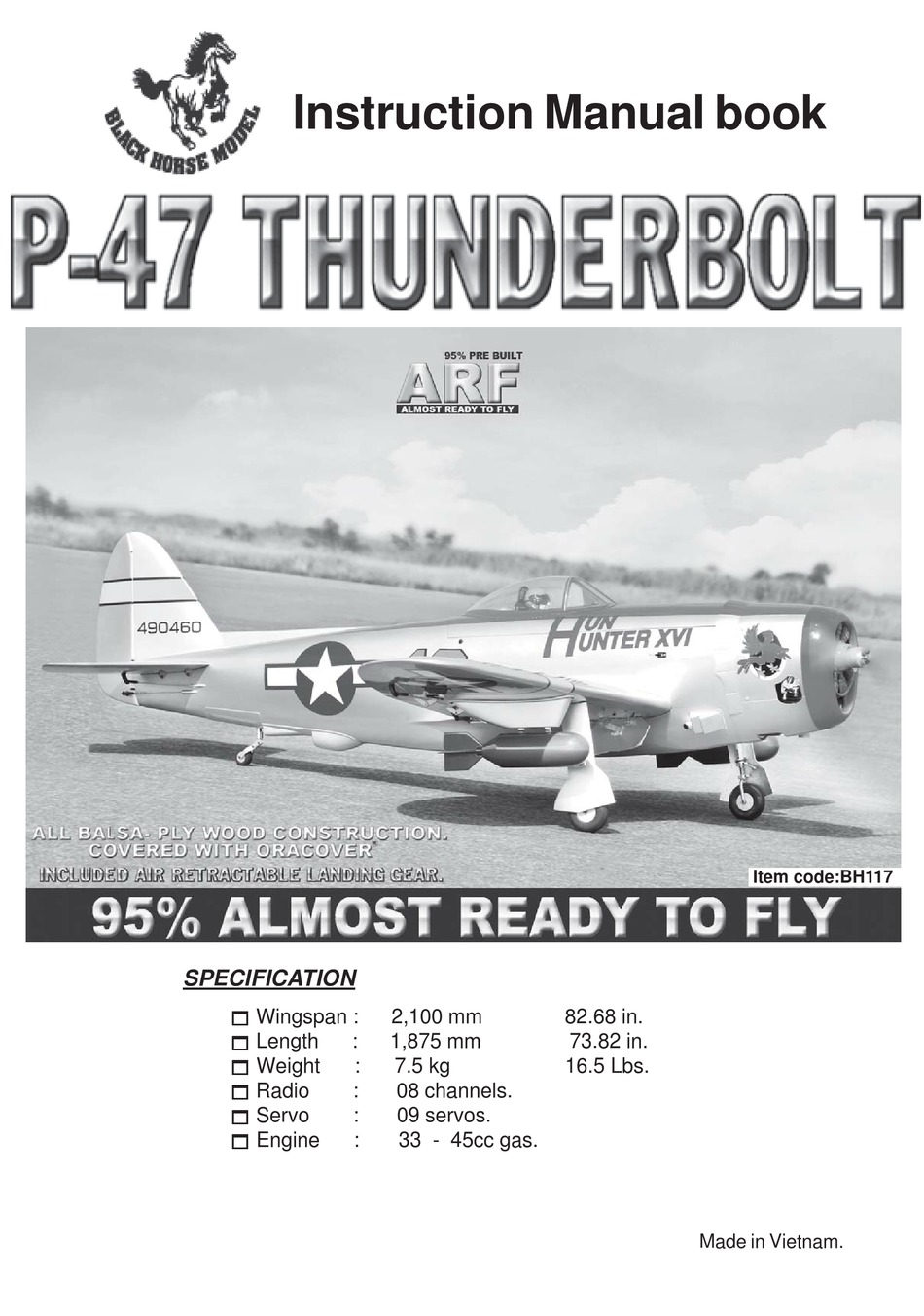

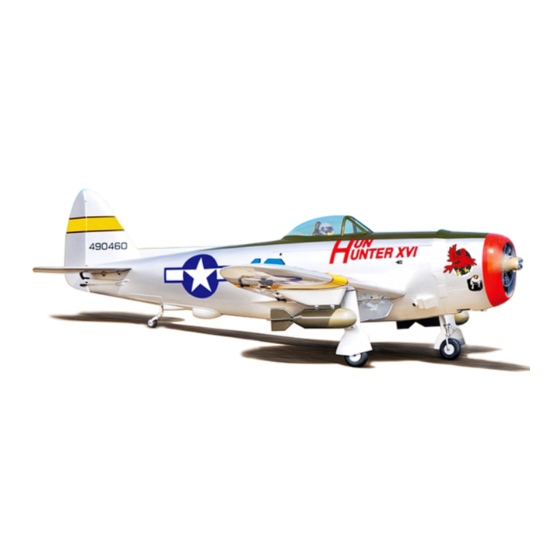

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
:
     Weight
:
     Radio
:
     Servo
:
     Engine
:
2,100 mm
82.68 in.
1,875 mm
7.5 kg
08 channels.
09 servos.
33 - 45cc gas.
73.82 in.
16.5 Lbs.
Made in Vietnam.
Item code:BH117

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47 THUNDERBOLT BH117 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model P-47 THUNDERBOLT BH117

Summary of Contents for Black Horse Model P-47 THUNDERBOLT BH117

  • Page 1 Instruction Manual book Item code:BH117 SPECIFICATION      Wingspan : 2,100 mm 82.68 in.      Length 1,875 mm 73.82 in.      Weight 7.5 kg 16.5 Lbs.      Radio 08 channels.

  • Page 2: Parts List

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your P-47 THUNDERBOLT. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. REPLACEMENT LARGE PARTS A. Cowling. E. Rudder B. Wing panel. F. Aluminium wing dihedral brace. C. Fuselage. G. Decal sheets. D . Horizontal stabilizer. REPLACEMENT SMALL PARTS 4x35mm 4x 20mm...

  • Page 5: Installing The Aileron Servos

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 1. Door mounting wheel. Bottom side 2. Air retract main gear. 3. Wheels. 4. Air tank. Aileron 5.Air line sets. flap. 6. Valve one way. 7. 3 way connector. 8. Valve control.
  • Page 6 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117.   3. Drill 1,5mm pilot holes through the block 5. Instal servo tray with aileron servo into of wood for each of the four mounting screws the wing as same as picture below.

  • Page 7: Installing The Flap Servos

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 3x 10mm. A+B Epoxy PLUS glue A+B Epoxy PLUS glue Install aileron control horn as same as picture below. II. FLAP. 1.INSTALLING THE FLAP SERVOS. Control horn of the aileron Flap Repeat the procedure for the other wing half.
  • Page 8 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 2. INSTALLING THE FLAP CONTROL HORN. Electric wire A+B Epoxy PLUS glue 2x10mm. secure. Control horn of the flap Flap 3.INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut...
  • Page 9 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 3 x 10mm Secure. Aileron Flap Bottom of left wing. Repeat the procedure for the other wing 3x 15mm half. INSTALLING AIR RETRACTABLE LANDING GEAR. Secure.
  • Page 10 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 5 x 35mm Drill a hole 3mm diameter Drill a hole 3mm diameter Secure.
  • Page 11 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. 3x 6mm Secure Gun sets C/A glue 3x 8mm wheel spants Secure 3x 10mm...

  • Page 12: Installing The Engine Mount

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Epoxy glue. Bottom of right wing. Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. See pictures below: 3x 10mm Drill a hole 6mm diameter Secure.

  • Page 13: Installing The Engine

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.

  • Page 14: Installing The Stopper Assembly

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117.  3) Carefully bend the second nylon tube up at a 45 degree angle (using a cigarette lighter). This tube will be the vent tube to the muffler.  4) Carefully bend the third nylon tube down at a 45 degree angle (using a cigarette lighter).
  • Page 15 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117.  6) When satisfied with the alignment of the stopper assembly tighten the 3mm x 20mm machine screw until the rubber stopper ex- pands and seals the tank opening. Do not over tighten the assembly as this could cause the tank to split.
  • Page 16 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117.  2. While keeping the back edge of the COWLING. cowl flush with the marks, align the front of  1. Slide the fiberglass cowl over the en- the cowl with the crankshaft of the engine. The...
  • Page 17 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Trim and cut Mark point Mark point Mark point Mark point Drill a hole 2.2mm diameter...

  • Page 18: Installing The Elevator Servos

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Secure. Drill a hole 2.2mm 3x12mm. INSTALLING THE ELEVATOR SERVOS Secure.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.

  • Page 19: Horizontal Stabilizer

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. HORIZONTAL STABILIZER. See pictures below: 3x 10mm Aluminium 12 mm Bottom side. 300mm 3 x 10mm...

  • Page 20: Elevator Pushrod Installation

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Secure Bottom side Elevator control horn ELEVATOR PUSHROD INSTALLATION. After the epoxy has fully cured, remove the masking tape or T-pins used to hold the  Elevator pushrod install as same as the way stabilizer in place and carefully inspect the of aileron pushrod.
  • Page 21 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. M2 lock nut. Rudder Servo Pushrod wire. Vertical Stabilizer Installation See picture below. Rudder servo install as same as method of elevator servo. See picture below: Push Rudder Servo Bottom side...

  • Page 22: Rudder Control Horn Installa- Tion

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below. Control horn of Rudder. Aluminium A+B Epoxy PLUS Glue.

  • Page 23: Mounting The Tail Wheel Bracket

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. MOUNTING THE TAIL WHEEL BRACKET.      1) Set the tail wheel assembly in place 3mm x 10mm on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.
  • Page 24 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Plastic part for tail gear Secure. Bottom side. Rudder push - pull cable C/A glue. Rudder push - pull cable...
  • Page 25 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. C/A glue. C/A glue Plastic parts for pushrod. Bottom side. INSTALLATION SERVO USING FOR VALUE CONTROL Cut. C/A glue...
  • Page 26 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117.
  • Page 27 P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. INSTALLATION SERVO AIR RETRAC Control Valve TABLE LANDING GEAR . Control Valve valve one way INSTALLATION AIR TANK 3 way connector Air tank. Tie wrap. Secure. Air tank.

  • Page 28: Installing The Receiver And Battery

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Air tank Air supply Valve one way Right main switch of Receiver. gear wing Left main gear wing INSTALLING THE RECEIVER AND BATTERY. Control Valve       1. Plug the servo leads and the switch lead into the receiver.

  • Page 29: Wing Attachment

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Receiver. WING ATTACHMENT. See picture wing attach to fuselage. Locate the aluminium wing dihedral brace. 25mm 760mm Wing bolt. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.

  • Page 30: Plastic Parts

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Plastic parts C/A glue 4x 20mm Secure. Bottom side Plastic bomb tank Secure. 4x 20mm Top side.

  • Page 31: Control Throws

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. Top side BALANCING. CONTROL THROWS.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause      ...

  • Page 32: Pre-Flight Check

    P- 47 THUNDERBOLT Instruction Manual ITEM CODE: BH117. PRE-FLIGHT CHECK.       1) Completely charge your transmitter and receiver batteries before your first day of fly- ing.       2) Check every bolt and every glue joint in your plane to ensure that everything is tight and well bonded.
