Front Panel

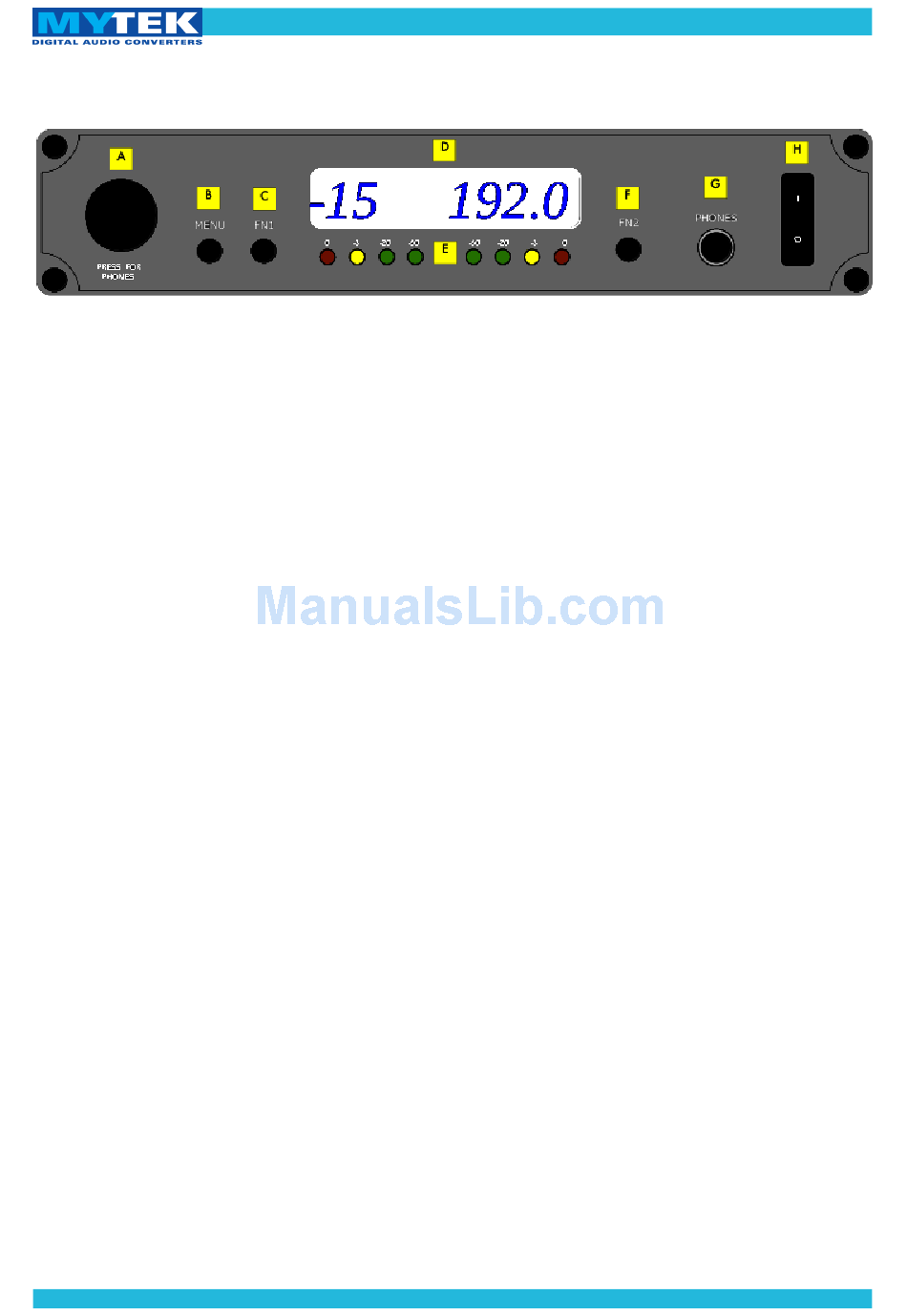

A – Multifunction Rotary Encoder – This encoder is both a
knob and button. It's primary function is to control the volume
level of both the main outputs and headphones. It also
functions as MENU navigation for configuring playback
options.
B – Menu Button – Press this button to enter the main menu,
or to cancel out of it.
C – Function 1 Button – This button is user assignable (via the
main menu.) By default it opens up the Input Selection Menu.
D – LED Display – This is the main display. Volume is shown
on the left and the current sample rate on the right. This also
displays the menu.
E – LED Level Meters (Black front panel only) – These LEDs
represent the signal's digital level.
F – Function 2 Button – A second user programmable switch
(also via the main menu.) By default this is Mute.
G – Headphone Jack – Hi-Fi high-current headphone
amplifier.
H – On/Off Switch – Powers the unit on or off.
