Summary of Contents for MyTek Stereo96 DAC
-
Page 1: User Manual
MASTERING DIGITAL TO ANALOG CONVERTER USER MANUAL VER.8/sep 2010 Use ver.5 manual for earlier units (without toslink) - Page 2 This manual may be updated Download the newest version at: Http://www.mytekdigital.com For technical support, technical tips and support check: Http://www.mytekdigital.com/ or contact Mytek tech support at: Highend@mytekdigital.com or at: tel. (646)-613 1822 fax.(212)-202 5331 Mytek 211 Centre Street New York NY 10013...
-
Page 3: Table Of Contents
Quick Start……………………………………………….3 Introduction..…………………………………….....4 Operation- Internal jumper and trimpots....……...5 Operation- Typical setup -Balanced Output…....…...6 Operation- Analog output alignment……………..………7 Operation- Unbalanced Output...…….......8 Rack mount shelf........….....10 Companion Stereo96 ADC……………………………..11 Specifications…………………………………………..12 Warranty conditions……………………………………..13... -
Page 4: Quick Start
Quick Start Output volume knob sets the output volume with range from mute to max. This is factory default. The knob can be disabled with internal jumpers. Additionally internal precision 10 turn trimpots can be used to set the overall Input selection. -
Page 5: Introduction

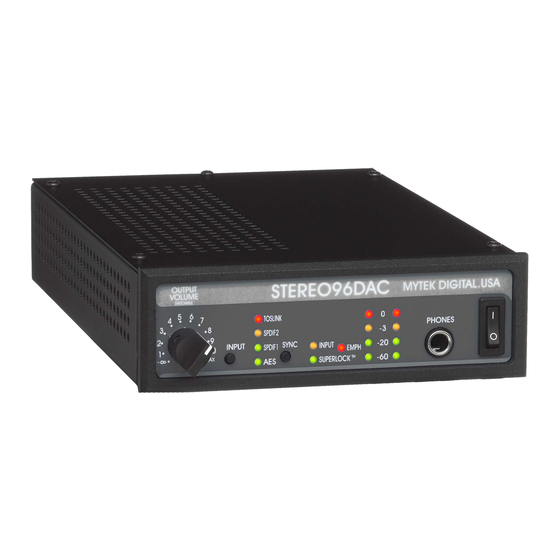

Introduction to Stereo96 Series Converters The MYTEK Stereo96 series consists of two 1/3 rack units- the Stereo96 ADC and the Stereo 96 DAC. They are also a part of an extended family of 1/3 rack units which also includes Stereo192 converters, SRC and Studio Clock. -
Page 7: Operation- Typical Setup -Balanced Output
Typical Setup Balanced Output Stereo96 DAC is equipped with 2 XLR analog outputs. For best signal to noise performance it is recommended that the signal destination has a typical kOhm impedance (1-20kOhm) input with standard +4dB line level balanced signal. Alternatively a more sensitive unbalanced signal destination can be used as described in subsequent paragraph. -
Page 8: Operation- Analog Output Alignment
Analog Output Alignment 1. Turn the output pot all the way up or disable it. 2. Play a digital audio source (DAW generator, test CD etc.) set to approx. 1kHz at the peak operating level you have chosen (let's say you have chosen -18dB). -
Page 9: Operation- Unbalanced Output
Output driving unbalanced destination Stereo96 DAC is equipped with 2 XLR analog outputs. For best signal to noise performance it is recommended the signal destination has a typical kOhm impedance (1-20kOhm) input with standard +4dB line level balanced signal. It might be desirable to use a superior sounding amplifier equipped with unbalanced ins to an inferior one which has balanced inputs. - Page 10 3. Play the program- you should be seeing level on the meters as well as hearing the signal at output XLRs and headphones. Turn up the volume knob if necessary. If levels at your power amp are inadequate for the volume knob position- change the out alignment using trimpots.
-
Page 11: Rack Mount Shelf
The Stereo96 DAC is 1/3 rack space wide and 1U tall. Mytek provides a 1U rack mount shelf as an accessory to mount up to 3 of the 1/3 rack units. The units are attached to the shelf with a small screw connecting the shelf to the bottom through a threaded hole on the bottom of the unit. -
Page 12: Companion Stereo96 Adc
Companion Stereo96 ADC Stereo96 ADC is a two channel hi-end Analog to Digital converter for recording and mastering applications. The main feature of this converter is its outstanding sound quality which makes it suitable for the most demanding projects when preserving the original signal quality is required. -
Page 13: Specifications
Specifications Conversion: 2-channel, 24bit, PCM 192-kHz D-to-A conversion in SuperLock(tm) mode ( 96-kHz D- to-A conversion in input sync mode when digital input sync is used) All sample rates playback with 100-kHz analog bandwidth in SuperLock(tm) mode Resolution: 24 bit (16-24 bit input accepted) Dynamic Range: 120dB A-weighted, 117dB Total THD+Noise: -107dB (<0.0005%) -
Page 14: Warranty Conditions
Warranty This Stereo96DAC digital audio converter is warranted by Mytek to the original purchaser against defects in workmanship and materials used in manufacture for a period of one year from the date of purchase. Faults due to customer misuse, unauthorized modifications or accidents are not covered by this warranty.
