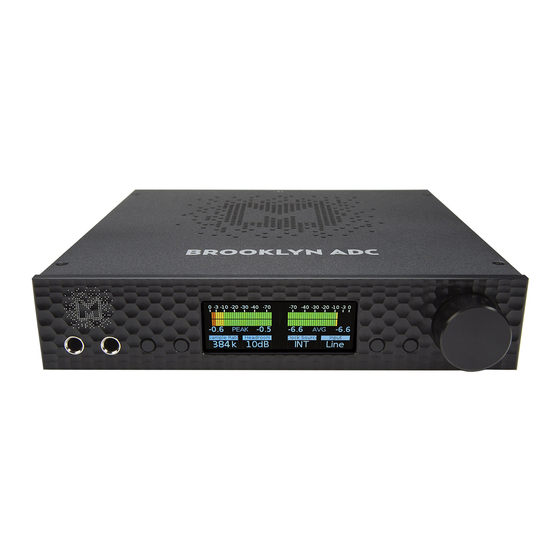

MyTek Brooklyn ADC Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ADC
Owner's Manual
M/C
M/M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brooklyn ADC and is the answer not in the manual?

Questions and answers

Related Manuals for MyTek Brooklyn ADC

Summary of Contents for MyTek Brooklyn ADC

  • Page 1 Owner’s Manual...
  • Page 3 Owner's Manual Ver. 1.5 / April 2018 © Mytek 2018 The Brooklyn ADC firmware can be easily updated via Mytek USB Control Panel. As the firmware is updated, Mytek will be posting new firmware releases in the support/downlaod section on Mytek website. Frimware may alter details of Mytek operation and consequently there will be periodic updates to this manual.

  • Page 4: Table Of Contents

    4.3 Quick Start – Immediate recording / playback ........9 5. Windows installation and configuration ..........9 5.1 Windows – Mytek Control Panel installation process......11 6. Brooklyn ADC OSX installation .............. 12 6.1 OSX – USB 2.0 - no driver required ............ 12 6.2 OSX –...

  • Page 5: Introduction

    User’s Manual 1. Introduction Thank you for choosing the Brooklyn ADC from Mytek Digital and welcome to the Mytek users community. Over 20 years of experience in building mastering grade converters and other audio equipment has been utilized to create this analog to digital converter. Its state-of-the-art audio path is designed to deliver reference, pristine sound for your master recordings.

  • Page 6: Package Content

    • TOSLINK - PCM up to 192 kHz, DSD up to x64 (DoP) • USB (Mytek proprietary USB 2.0 Class 2) – PCM 32bit / 384 kHz, DSD x256, llows to send digital data to AES, SPDIF, Toslink amd SDIF outputs.

  • Page 7: Quick Start

    User’s Manual 4. Quick Start 4.1 Front Panel 1. Mytek backlit logo. The color and brightness are user adjustable. Color follows the color of the Mytek Control Panel software and may indicate specific functionality when implemented in the future firmware.

  • Page 8: Rear Panel

    3. AES/EBU Digital Output - professional balanced XLR output which sends digital signal up to 192 kHz/24bit, DSD up to x64 (DoP). Sample rate of 384 kHz is possible if the Brooklyn ADC is connected to Brooklyn DAC+. It can also be used to transmit digital audio from computer (USB2).

  • Page 9: Quick Start - Immediate Recording / Playback

    3. Connect WordClock cables if you use this protocol for clocking. Note that clocking via AES, SPDIF, Toslink is also possible. Next turn the Brooklyn ADC on and set clock mode to internal / master [INT] or external / slave [WCK] mode.
  • Page 10 „C:\Program Files\Mytek Digital\Mytek USB 2.0 Driver”.We recommend leaving this as it is. If you wish to customize the install choose the 8. Connect the Brooklyn ADC to USB2 port in your location by selecting browse. Click „Install”. computer.

  • Page 11: Windows - Mytek Control Panel Installation Process

    „Finish” button. icon and selecting "Extract Here". 2. To install The Mytek Control double click the extracted Windows Installer Package file. When MytekControl Setup Wizard appears click „Next” then accept license and click „Next” again.

  • Page 12: Brooklyn Adc Osx Installation

    Driverless operation basically means „plug and play”. The Brooklyn ADC will automatically show up in your computer’s list of supported audio devices as „Brooklyn ADC”. Simply choose that as your default audio playback device and the system will work.

  • Page 13: Firmware Update [Windows And Os X]

    ADC firmware is shown in the MytekControl „General” tab. • The firmware can be updated by using USB2 port and Mytek Control Panel application. It requires already installed USB2 driver (PC only) and Mytek Control Panel application. To download the current firmware as well as drivers please visit https://mytekdigital.com/hifi/support/...

  • Page 14: Menu

    / value you need. Pressing the button again unhighlights the field. When no field is highlighted, turning the knob, turns the menu page to next one showing next set of control fields. Turn the knob round to navigate between all available parameters. Press and hold the knob to switch the Brooklyn ADC off / on.

  • Page 15: Menu Operation

    Word Clock Physical connections examples: A. The Brooklyn ADC is a master and the external device is a slave: Brooklyn ADC WCK OUT -> external device WCK IN B. The Brooklyn ADC is a slave and the external device is a master: Brooklyn ADC WCK IN -> external device WCK OUT 8.2.3 Headroom -...
  • Page 16 • AUTO – the ADC remembers last mode 8.2.13 Device (Device Info) • INFO- shows firmware version and unique serial number of the unit. • RESTORE – restores to default factory settings. Note! All above settings can also be changed by using the Mytek Control Panel application.

  • Page 17: Technical Specification

    • S/PDIF Coaxial Output: PCM up to 384kHz single wire, DSD up to x128 (DoP) • SDIF DSD Output: DSD x64, x128, x256 • WordClock I/O: BNC, 75 Ohm • Clock: <1ps jitter Mytek Femtoclock (tm) generator. GENERAL • Firmware: upgradable via USB Control panel, updates available online, periodic feature upgrades •...

  • Page 18: Warranty

    Mytek extends affordable repair service for all units manufactured to date that are not covered by this Warranty. Mytek repair centers are located at Mytek Headquarters in Brooklyn / New York, and in Warsaw / Poland (at Mytek EU Distribution Office).
  • Page 19 User’s Manual Warning Excessive sound pressure from speakers and headphones can cause hearing loss. In order to use this product safely, avoid prolonged listening at excessive sound pressure levels. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
