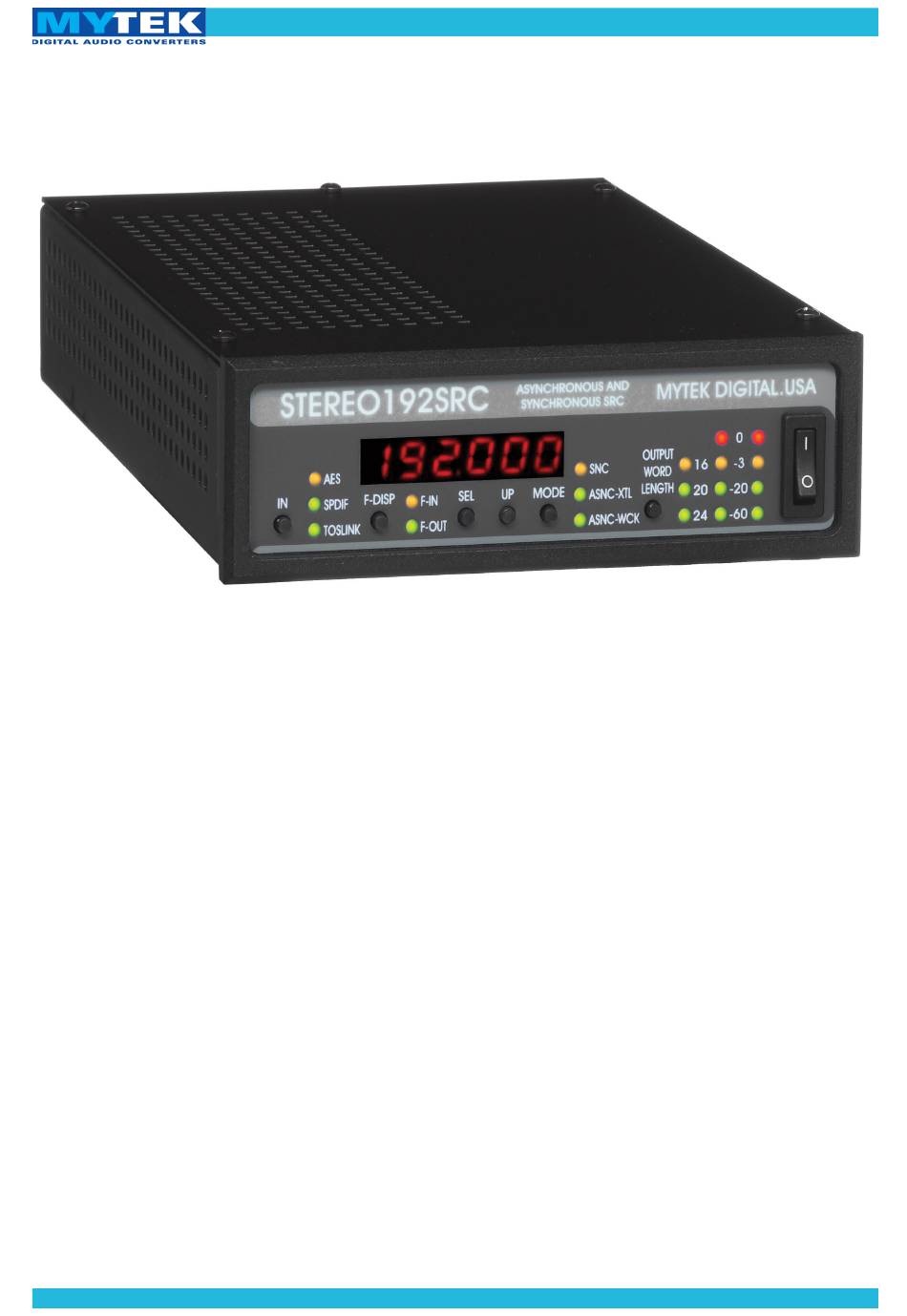

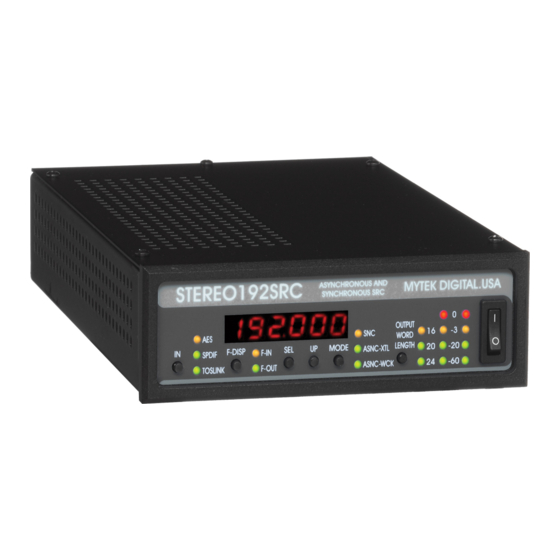

- Page 1 Mytek Stereo 192 Sample Rate Converter – User Manual Stereo 192 Sample Rate Converter User Manual ver. 1.2 / May 2011 © Mytek Digital 2011 www.mytekdigital.com Page: 1 / 12...
- Page 2 Mytek Stereo 192 Sample Rate Converter – User Manual This manual may be updated Download the newest version at: http://www.mytekdigital.com/download_library/ For technical support, technical tips and support check: http://www.mytekdigital.com or contact Mytek tech support at: highend@mytekdigital.com or at: tel. (347) 384-2687 fax.
-
Page 3: Table Of Contents
Mytek Stereo 192 Sample Rate Converter – User Manual Content Introduction..................4 Quick Start..................5 Front Panel..................6 Back Panel..................7 Functions..................7 Frequency Selections..............8 Mode Selections................10 Error Messages................10 Important Safety Instructions...........11 www.mytekdigital.com Page: 3/12... -
Page 4: Introduction
Mytek Stereo 192 Sample Rate Converter – User Manual Introduction The Mytek Stereo 192 Sample Rate Converter is a hardware SRC that is capable of synchronous and asynchronous operation. It can convert between any frequency between 32,000 Hz and 192,000 Hz with 1 Hz accuracy. -
Page 5: Quick Start
Mytek Stereo 192 Sample Rate Converter – User Manual Quick Start 1. Connect Digital Input and Output Connect the output of your digital device to an input on the SRC. Select this input on the front panel with the “IN” button. A solid LED will tell you that the source is valid. -
Page 6: Front Panel
Mytek Stereo 192 Sample Rate Converter – User Manual Front Panel AS YNCHRONOUS AND STEREO192SRC MYTEK DIGITAL.USA S YNCHRONOUS S RC 1 9 2 0 0 0 O UTPUT WO RD LENGTH SPDIF F-DISP F-IN ASNC-XTL MO DE F-O UT... -
Page 7: Back Panel
Mytek Stereo 192 Sample Rate Converter – User Manual Back Panel 110/220VAC AES OUT AES IN S PDIF TOS LINK IN S PDIF O UT WWW.MYTEKDIGITAL.CO M SWITCH AND FUSE INSIDE DESIGNED IN USA A – IEC Power socket B – Wordclock BNC Input C –... -
Page 8: Frequency Selections
Mytek Stereo 192 Sample Rate Converter – User Manual Frequency Selections There are 3 modes of frequency selection: Quick – pressing the UP button will cycle between 44100 Hz • 48000 Hz • 88200 Hz • 96000 Hz • 176400 Hz •... - Page 9 Mytek Stereo 192 Sample Rate Converter – User Manual P. up • 44144 Hz ◦ 45937 Hz ◦ 48048 Hz ◦ 50000 Hz ◦ Once the desired frequency is selected push SEL to confirm. Custom Value – hold down SEL until the first digit starts For user defined flashing.
-
Page 10: Mode Selections
Mytek Stereo 192 Sample Rate Converter – User Manual Mode Selections The Stereo 192 SRC is capable of synchronous or asynchronous operation. Synchronous operation means that the output clock is locked to and following the input clock, even if it's a different frequency. -
Page 11: Important Safety Instructions
Mytek Stereo 192 Sample Rate Converter – User Manual Important Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. - Page 12 Mytek Stereo 192 Sample Rate Converter – User Manual WARNING Excessive sound pressure from speakers and headphones can cause hearing loss. In order to use this product safely, avoid prolonged listening at excessive sound pressure levels. For the customers in the U.S.A.
