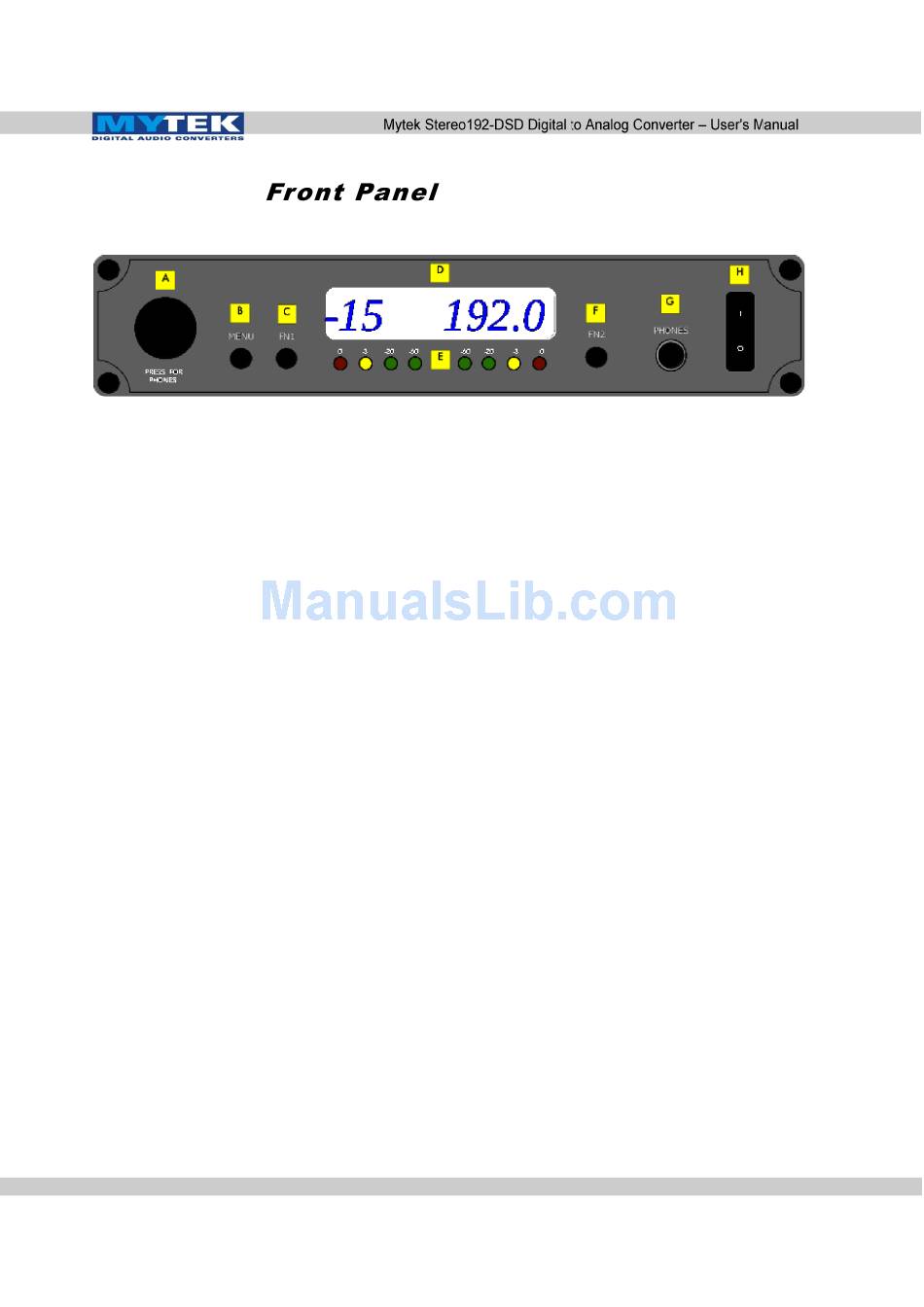

A Multifunction Rotary Encoder. This encoder is both a knob and a
Button. Pressing the knob engages the button function of the
encoder. It's primary function is to control the volume level of
both the main outputs and headphones. It also functions as
MENU navigation for configuring playback options. The first
function of the Encoder Button is to
volume control or the headphone volume control. Two dots next
to the two digit volume value on the display indicate headphone
fader. A single dot indicates the digital volume control option has
been selected by the user.
In MENU mode the Encoder Button functions as "Enter" or a
forward command.
B Menu Button. Press this button to enter the main menu, or to
cancel out of it.
C FN1 (Function 1) Button. This button is user assignable (via the
main menu.) Default opens up the Input Selection Menu.
D LED Display. This is the main display. Volume is shown on the
left and the current sample rate on the right. It's also used to
display the menu selections.
E LED Level Meters (Black Preamp or Black Mastering only).
These LEDs represent the signal's digital level.
F FN2 (Function 2) Button. A second user programmable switch
(also via the main menu.) Default is Mute.
G Headphone Output:
amplifier capable of driving the most demanding heaphones.
H On/Off Switch. Powers the unit on or off.
