Sapido BRC70x User Manual

Wired router value cloud
Hide thumbs Also See for BRC70x:
Table of Contents

Advertisement

Quick Links

Download this manual
http://www.sapido.com.tw/
1

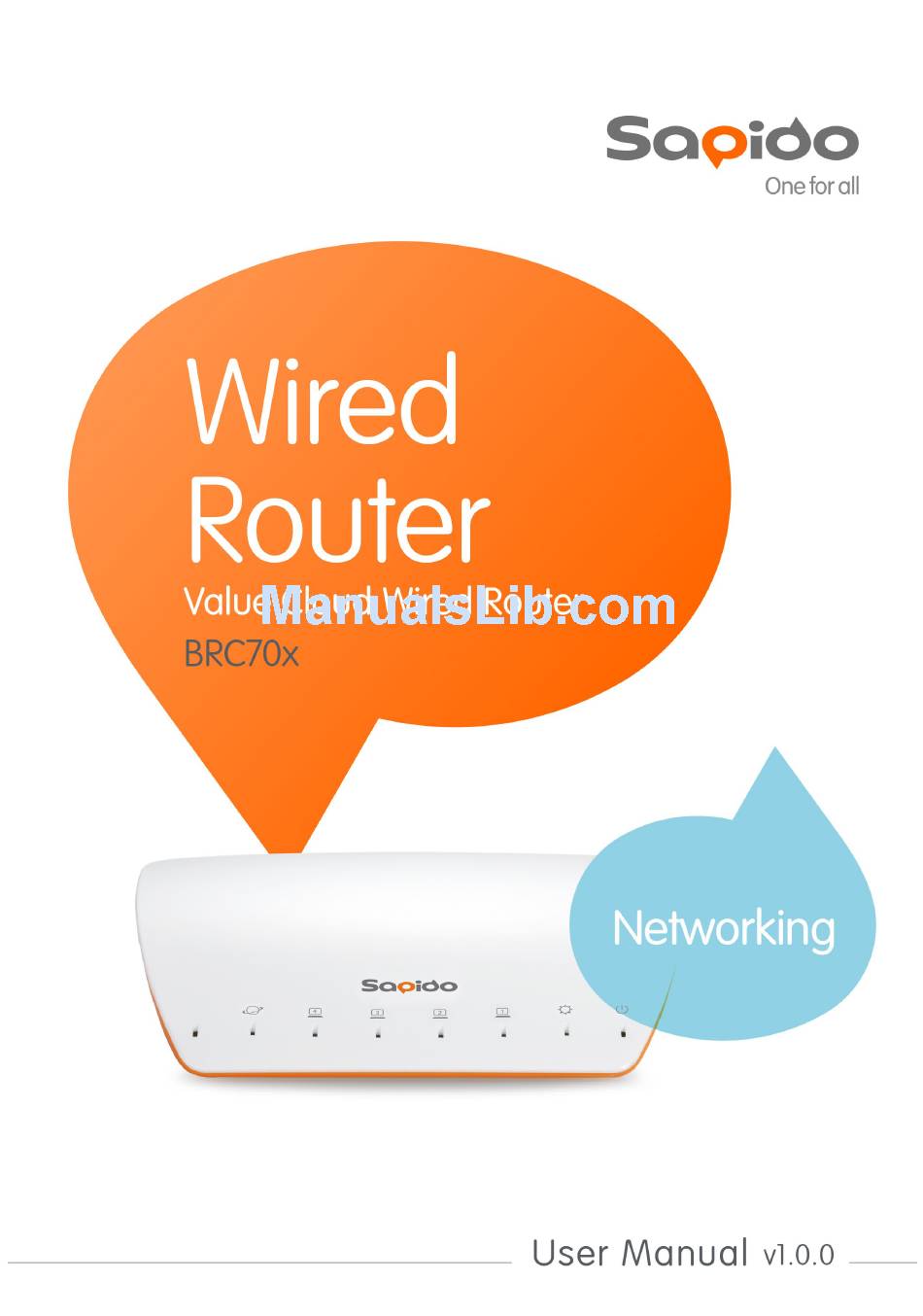

User Manual v1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRC70x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapido BRC70x

Summary of Contents for Sapido BRC70x

  • Page 1 User Manual v1.0.0...

  • Page 2: Ce Statement Of Conformity

    Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC; 93/68/EEC) http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 3: Chapter 1 Introduction

     DC Jack Connect  BSMI  LED Indicators  Power LED x1  Status LED x1 (Reset Indicator)  WAN LED x 1  LAN LED x 4  Security Certification  FCC  CE  BSMI http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 4 Reset or firmware upgrade in (120ms) progress WAN port activity Green On 100Mbps Ethernet is WAN x 1 connected Blinking 100Mbps Ethernet Tx/Rx (30ms) activity Green On 10Mbps Ethernet is connected Blinking 10Mbps Ethernet Tx/Rx (120ms) activity http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 5 LAN port activity Green On 100Mbps Ethernet is LAN x 4 connected Blinking 100Mbps Ethernet Tx/Rx (30ms) activity Green On 10Mbps Ethernet is connected Blinking 10Mbps Ethernet Tx/Rx (120ms) activity http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 6: Chapter 2 System And Network Setup

    Chapter 2 System and Network Setup The BRC70X is an easy to setup device for various application and environment, especially for large installs such as hotels, offices space, warehouses, hot-spots and more. To begin with BRC70X, you must have the following minimum system requirements. If your system can’t correspond to the following requirements, you might get some unknown...

  • Page 7: Network Setup

    Click “Start” button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Dial-up Connections icon, double click Local Area Connection, and Local Area Connection Properties window will appear. Select “Internet Protocol (TCP/IP)”, then click “Properties”. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 8: Windows Xp

    Click “Start” button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click “Properties”. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 9: Windows Vista / Windows 7

    Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. 2.3.3 Windows Vista / Windows 7 Click “Start” button (it should be located at lower-left corner of your computer), then http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 10 Connections. Right-click Local Area Network, then select “Properties”. Local Area Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 11: Router Ip Address Lookup

    Input “cmd”, and then click “OK”. Input “ipconfig”, then press “Enter” key. Please check the IP address followed by “Default Gateway” (In this example, the gateway IP address of router is 192.168.1.1) http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 12 IP address of the router in address bar, and the following message should be shown. Please click “admin” to login the BRC70X. Enter the User name and Password in to the blank and then Click Login. The default values for User Name and Password are admin (all in lowercase letters).

  • Page 13: Chapter 3 Internet Connection

    Input User Name and New Password, then input Confirm Password again. Chapter 3 Internet Connection This Chapter describes how to setup BRC70X to the internet. The BRC70X is delivered with the following factory default parameters. Default IP address: 192.168.1.1 Default IP subnet mask: 255.255.255.0...
  • Page 14 Enter the User name and Password into the blank and then click Login. The default values for User Name and Password are admin (all in lowercase letters). Status page Download pdadd Logout Home button menu Click Home button icon to enter MENU as below. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 15 You can use URL filter and MAC address filter schedule to limit access Internet. Firmware Upgrade This function allows you upgrade the BRC70X firmware to new version. Please note do not power off the device during the upload because it may crash the system.
  • Page 16 You can maintain the system time by synchronizing with a public time server over the Internet. Factory Default You could reset the current configuration to factory default. Reboot This function is used to reboot logout This page is used to logout. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 17: Internet Setup

    Click Internet Setup icon to enter WAN setup as below. The Internet Setup is depended on the service that you contract with the provider. The BRC70X provides five selections for the Internet Mode type, PPPoE, DHCP, Static IP , PPTP and L2TP. Check with your ISP if you don’t know the WAN type.
  • Page 18 User Name Input your user name provided by your ISP. If you don’t know, please check with your ISP. Password Input the password provided by your ISP. 3.3.2 DHCP Item Description MAC type Select "Universal” or “Specific" http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 19 IP Address Enter the IP address which is provided by your ISP. Subnet Mask Please enter the Subnet Mask address Gateway Input ISP Default Gateway Address. Input DNS information which is provided by your ISP 3.3.4 PPTP http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 20 PPTP connection that is between the VPN client and VPN server. Enable IGMP Proxy Enable IGMP Proxy to provide the service for IP hosts and adjacent multicast routers to establish multicast group memberships. 3.3.5 L2TP http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 21 ISP. User Name Input PPTP account provided by your ISP. Password Input the password provided by your ISP. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 22: Chapter 4 Gui Function Setup

    Chapter 4 GUI Function Setup Status You could check WAN, LAN, Client network information  WAN information  LAN information http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 23: Parental Control

     Client information Manage client can access internet or not Parental Control Control Parental provide URL Filtering and MAC Filter Schedule for setup http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 24: Url Filtering

    Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Notes: This function will not be in effect when the Virtual Server is enabled. Please disable Virtual Server before activate the URL Filtering function. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 25: Mac Filter Schedule

    4.2.2 MAC Filter Schedule When enabled, filtering will be based on the MAC address of LAN computers. Any computer with its MAC address on this list will be blocked from accessing the Internet. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 26: Firmware Upgrade

    Firmware Upgrade This function can upgrade the firmware of the router. There are two method for user upgrade firmware: Auto upgrade and Manual upgrade. Note: The firmware upgrade will not remove your previous settings. 4.3.1 Auto upgrade http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 27: Manual Upgrade

    The QoS can let you classify Internet application traffic by source/destination IP address and port number. To assign priority for each type of application and reserve bandwidth can let you have a better experience in using critical real time services like Internet phone, video conference … http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 28 Percentage Download Bandwidth LAN device bandwidth of download bandwidth Percentage Add the setting data Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 29 Home: Item Description Home Home Check “ ” to enable DoS function for prevention. You also can No Prevention check “ ” to disable DoS function. Enterprise: http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 30 ” to disable DoS function. IP Binding This function allows you reserve IP addresses, and assign the same IP address to the network device with the specified MAC address any time it requests an IP address. This is http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 31: Vpn Server

    / computer and office local area network to establish a secure network connection. And User can safe login office local area network and access to personal documents, files Sharing and other resources. It provides the most convenient VPN encryption. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 32 Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. NAT Management http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 33: Virtual Server

    This section contains configurations for the BRC70X ’s advanced functions such as: virtual server, and DMZ to provide your network under a security environment. 4.8.1 Virtual Server The Virtual Server feature allows users to create Virtual Servers by re-directing a particular range of service port numbers (from the WAN port) to a particular LAN IP address.
  • Page 34 Internet gaming or videoconferencing. When enabled, this feature opens all ports to a single station and hence renders that system exposed to intrusion from outside. The port forwarding feature is more secure because it only opens the ports required by that application. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 35 This is the way Internet users can access the router through a domain name instead of its IP address. Note: make sure that you have registered with a DDNS service provider before enabling this feature. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 36: Remote Management

    WAN is changed, and the information will be updated to DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish BRC70X embedded in User Name/Email User name is used as an identity to login Dynamic-DNS service. Password/Key Password is applied to login Dynamic-DNS service.

  • Page 37: Factory Default

    4.11 Time Zone Users can select time zone and synchronize the local clock on the router. Item Description Time Zone Select Please select the time zone. 4.12 Factory Default You could reset the current configuration to factory default. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 38 4.13 Reboot This function is used to reboot 4.14 Logout This page is used to logout http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 39: Advance Setup

    User Name Input your user name provided by your ISP. If you don’t know, please check with your ISP. Password Input the password provided by your ISP. Service Name Input the service name provided by your ISP. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 40 (OS). Advanced users can set it manually. Select Attain DNS Automatically. Or select Set DNS Manually, if you want to specify the DNS, and enter the DNS provided by your ISP in DNS 1 2 3. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 41 Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MAC Address" Save & Apply Click on Save to save the setting date, the Apply button for execute current configuration. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 42 Microsoft client devices. The MPPC algorithm is designed to optimize bandwidth utilization in order to support multiple simultaneous connections. The MPPC algorithm uses a Lempel- Ziv (LZ) based algorithm with a continuous history buffer, called a http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 43 If you don’t know, please check with your ISP. User Name Input PPTP account provided by your ISP. Password Input the password provided by your ISP. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 44 LAN setting page to configure the settings you want. Item Description IP Address The default value of LAN IP address is 192.168.1.1 for this router. Subnet Mask Input Subnet Mask, normally it is 255.255.255.0. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 45 This is the way Internet users can access the router through a domain name instead of its IP address. Note: make sure that you have registered with a DDNS service provider before enabling this feature. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 46: Ipv6 Config

    WAN is changed, and the information will be updated to DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish BRC70X embedded in User Name/Email User name is used as an identity to login Dynamic-DNS service. Password/Key Password is applied to login Dynamic-DNS service.
  • Page 47 Check ISP to get IP address and default gateway IP address Router Name Router domain DNSv6 Select Attain DNS Automatically. Or select Set DNS Manually, if you want to specify the DNS, and enter the DNS provided by your ISP in http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 48 This section contains configurations for the BRC70X ’s advanced functions such as: virtual server, and DMZ to provide your network under a security environment. 5.4.1 The DMZ feature allows one local user to be exposed to the Internet for special-purpose applications like Internet gaming or videoconferencing.
  • Page 49 Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Please find the following figure to know that what the virtual server is. The web server is located on 192.168.1.100, forwarding port is 80, and type is TCP+UDP. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 50 VPN Server: PPTP/L2TP Setup Please refer VPN server Firewall 5.6.1 Please refer 5.5.2 QoS http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 51 Set QoS by IP Address or MAC address Local IP Address Set local IP Address if the address type is by IP Address MAC Address Set MAC Address if the address type is by MAC Address http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 52: Port Filtering

    It will display all ports that are filtering now. Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Port 80 has been blocked as the following illustrate. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 53 Click on Apply to add the setting data Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 54 5.5.5 Mac Filter Schedule Please refer Mac Filter Schedule 5.5.6 URL Filtering Please refer URL Filtering 5.5.7 IP Binding Please refer IP Binding 5.5.8 VLAN 5.5.9 VLAN VLAN Settings Item Description Add VLAN tag to packet Set VLAN ID（1~4096） http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 55 Priority It indicates the frame priority level. Values are from 0 (best effort) to 7 (highest); 1 represents the lowest priority Enable or Disable CIF http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 56: Change Password

    WOL. Otherwise you need to install a PCI NIC that is WOL capable. 5.6.3 Change Password Users can set or change user name and password used for accessing the web management interface in this section. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 57: Profiles Save

    This is especially useful in the event you need to reset the router to its default settings. Save Configuration (1). Click Save (2). Please click “Save” to save the configuration to your computer. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 58 (3). Select the location which you want to save file, then click Save. Load configuration file (1). Tap “browse” and select configuration file then click Open http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 59 (2). Click Upload to upload configuration file to BRC70X . (3). After 60 seconds, BRC70X will reboot automatically. 5.6.6 Remote Management Please refer Remote Management 5.6.7 Time Zone Users can synchronize the local clock on the router to an available NTP server (optional).
  • Page 60 Universal Plug and Play (UPnP) is a standard of networking protocols promulgated by the UPnP Forum. The goals of UPnP are to allow devices to connect seamlessly and to simplify the implementation of networks in the home (data sharing, communications, and entertainment) and in corporate http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 61: Route Setup

    BRC70X supports UPnP function, and can cooperate with other UPnP devices. When you activate UPnP, please click My Network Places. Users will see an Internet Gateway Device icon. By click the icon, users can enter the GUI of the router.

  • Page 62: Vpn Passthough

    Metric number on router’s routing table Interface Static route rule for LAN or WAN interface 5.6.10 VPN Passthough Virtual Private Networking (VPN) is typically used for work-related networking. For VPN tunnels, the router supports IPSec, Pass-through, PPTP Pass-through, and L2TP Pass-through. http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 63: Wan Type Auto Detection

    To allow the L2TP network traffic to be forwarded to its destination without the network address translation tasks. IPV6 Pass-through Allow IPV6 packet to be forwarded to its destination without the network address translation tasks. 5.6.11 Wan Type Auto Detection http://www.sapido.com.tw/ User Manual v1.0.0...

  • Page 64: Installation

    LAN cable, the changes cannot be made, or password is lost. A: In case BRC70X is inaccessible; you can try to restore its factory default settings. Please press the “Reset” button and keep it pressed for over 7 seconds and the light of STATUS will vanish.
  • Page 65 A: There are two ways to know. Way 1: Check with your Internet Service Provider. Way 2: Check the setting screen of BRC70X. Click on Status & Log item to select Network Configuration on the Main Menu. WAN IP is shown on the WAN interface.
  • Page 66 Click on Edit > Preferences > double-click Advanced in the Category window. Click on Proxies > select Direct connection to the Internet > click on OK button. Click on Edit again and then click on Preferences. Under category, double-click on Advanced and then click on Proxies. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 67 Q: Why does BRC70X’s setup page shut down unexpectedly? A: If one of the pages appears incompletely in BRC70X ’s setup pages, please click on Logout item on the Main Menu before shutting it down. Don’t keep it working. Then, close Internet browser and open it again for going back to the previous page.
  • Page 68 Q: BRC70X couldn’t save the setting after click on Apply button? A: BRC70X will start to run after the setting finished applying, but the setting isn’t written into memory. Here we suggest if you want to make sure the setting would be written into memory, please reboot the device via Reboot under System Management directory.

  • Page 69: Operating Systems

    FireFox ver. 2.0.0.11 and the following related versions.3. Safari ver. 3.04 and the following related versions. 7.7 Communications Regulation Information Should any consumers need to learn more information, services and supports, please contact the supplier of your product directly. http://www.sapido.com.tw/ User Manual v1.0.0...
