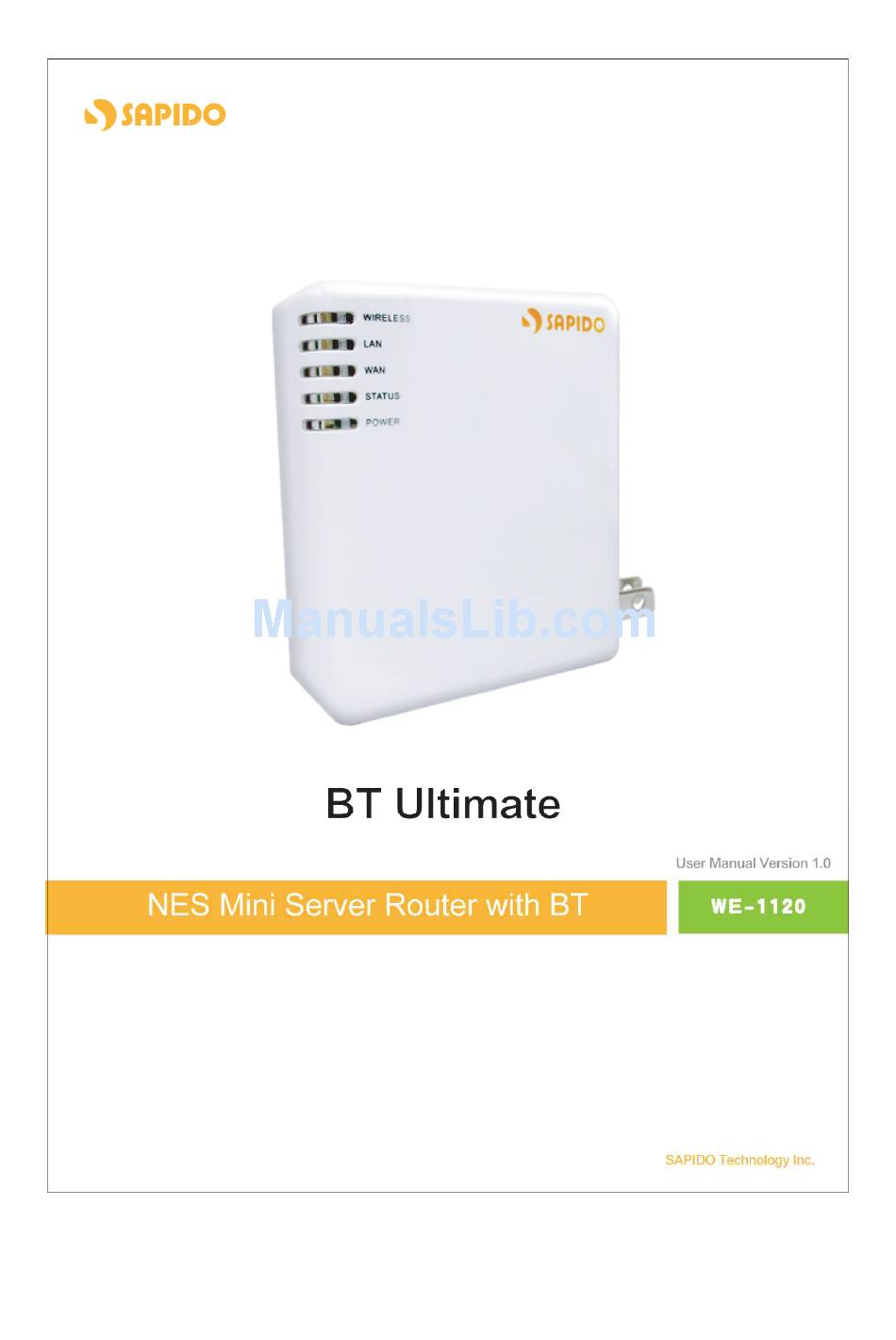

Sapido We-1120 BT Ultimate User Manual

Nes mini server router with bt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the We-1120 BT Ultimate and is the answer not in the manual?

Questions and answers

Related Manuals for Sapido We-1120 BT Ultimate

Summary of Contents for Sapido We-1120 BT Ultimate

  • Page 2: Table Of Contents

    Table of Content COPYRIGHT STATEMENT ........................8 WARRANTY............................9 FCC CAUTION ............................ 10 SAFE SEATING GESTURES:......................11 CE STATEMENT OF CONFORMITY ....................11 CHAPTER 1 INTRODUCTION ......................12 ..........................12 VERVIEW ..........................13 EATURES ........................14 PECIFICATIONS 1.3.1 Product Appearance Introduction ................15 .......................
  • Page 3 3.2.6 USB Disk Management Setup................. 39 3.2.7 User Account Management Setup................40 3.2.8 Firewall Setup......................41 3.2.9 QoS Configuration Setup ..................42 3.2.10 FTP Server Setup ..................... 43 3.2.11 Printer Server Setup ....................44 3.2.12 Web Camera Server Setup ..................45 3.2.13 Samba Server Configuration Setup ...............
  • Page 4 3.5.4.3.2.2 Personal Application................92 3.5.5 Printer Server ......................93 3.5.5.1 Printer Setting on PC................... 94 ......................100 YSTEM MANAGEMENT 3.6.1 Reboot ........................100 3.6.2 Change Password ....................101 3.6.3 Firmware Upgrade....................102 3.6.4 Profile Save......................103 3.6.5 Remote Management ..................... 104 3.6.6 Time .........................
  • Page 5 4.2.10 Samba Server Setup ....................138 4.2.11 Quick Setup Finish....................138 IP C .......................... 139 ONFIG 4.3.1 LAN .......................... 139 4.3.2 Wireless ........................141 ..........................146 ERVER 4.4.1 Samba Server ......................146 4.4.1.1 How to enter the sharing floder ............... 147 4.4.2 FTP Server ......................
  • Page 6 4.8.1 Anonymous ......................186 4.8.2 My Document......................187 4.8.3 My Webcam ......................188 4.8.4 My Status ........................ 189 ........................... 190 CHAPTER 5 CLIENT MODE ......................191 ............... 191 DMINISTRATOR UICK ETUP NSTRUCTION ........................193 UICK ETUP 5.2.1 Site Survey......................195 5.2.2 Wireless Setup .......................
  • Page 7 5.4.5.1 Printer Setting on PC..................228 ....................... 235 YSTEM ANAGEMENT 5.5.1 Reboot ........................235 5.5.2 Change Password ....................236 5.5.3 Firmware Upgrade....................237 5.5.4 Profile Save......................238 5.5.5 Remote Management ..................... 239 5.5.6 Time ......................... 241 5.5.8 User Account Management................... 243 5.5.9 Folder Management ....................

  • Page 8: Copyright Statement

    DETAIL, WHOLE CREATION, EVEN PART OF CREATION CANNOT BE PUBLISHTED VIA THE MENTIONED METHODS BY OTHERS. FOR INSTANCE, DOCUMENTATION OF TRANSLATION OR MODIFICATION IS PROHIBITED. All trademarks and trade names are the properties of their respective owners. COPYRIGHT © 2007 ALL RIGHTS RESERVED BY SAPIDO.

  • Page 9: Warranty

    Warranty One-Year Warranty is provided for consumer products. This warranty is subject to the conditions and limitations set forth herein. ("We") warrants and tests the Product to be free from defects in material and workmanship and to conform to published specifications. During the warranty period, should the Product fail under normal use in the recommended environment due to improper workmanship or materials, we will repair the Product or replace it with a comparable one.

  • Page 10: Fcc Caution

    FCC Caution 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. 2.

  • Page 11: Safe Seating Gestures

    Safe Seating Gestures: You should follow the manufacturer’s instructions for adjusting the backrest to fit your body properly. An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor.

  • Page 12: Chapter 1 Introduction

    Chapter 1 Introduction Overview WE-1120 (NES Mini Server Router with BT) in order to combine functions, such as Router, Bridge, AP and USB port application...etc., you can share the USB printer and files to users of the LAN with SAMBA method, or match with an USB web camera to be used as instant supervision tool, can also mount USB HDD or flash drive, then become a FTP server.

  • Page 13: Features

    Features WE-1120’s main functions, including Wireless Access, Webcam Server, Printer Server, FTP Server, Samba Server, BT Torrent Download and IP Sharing are shown as below. These features are belonging to WE-1120 and applying instructions of the User’s Manual will not only fulfill your requirements, but also ease your inconvenience from the job.

  • Page 14: Specifications

    Specifications Connector: 1x RJ-45,10/100 Base TX for WAN Router Mode 1x RJ-45,10/100 Base TX for LAN Three Mode AP Mode Connector: 2x RJ-45,10/100 Base TX for LAN Connector: 2 RJ-45, 10/100 Base TX to LAN Wireless to Client Mode Access Point. Interface Connector: Wireless WLAN...

  • Page 15: Product Appearance Introduction

    1.3.1 Product Appearance Introduction System Requirements To begin with NES Mini Server Router with BT, you must have the following minimum system requirements. If your system can’t correspond to the following requirements, you might get something unknown troubles on your system. XDSL/Cable Modem and broadband Internet Account.

  • Page 16: Get Your Ip Automatically & Manually

    Get your IP Automatically & Manually After NES Mini Server Router with BT connected with your computer, please make sure your IP is in the automatic IP position or you adjust it as manually in order to activate the network from home to Internet.
  • Page 17 【Step2】 Click on Properties button. 【Step3】 Double click on Internet Protocol (TCP/IP).
  • Page 18 【Step4-1】 For getting IP automatically if you are one of the users under WE-1120, please skip “Use the following IP address” and then select “Obtain an IP address automatically” and “Obtain DNS server address automatically” and then click on “OK” button. 【Step4-2】...

  • Page 19: Network Testing

    IP Address: 192.168.1.xxx (xxx can be any number between 2 and 253, but it can’t repeat, we use 10 to be the example.) Subnet Mask: 255.255.255.0 Gateway: 192.168.1.254 (this is the IP address of the WE-1120 in AP Mode) DNS: 192.168.1.254 (use the WE-1120’s IP address or on your own choice). Notice: IP address and Default gateway couldn’t be the same.

  • Page 20: Testing With Internet Browser

    1.5.1.1 Testing with Internet Browser Open an Internet Browser, such as Internet Explore or Netscape. Input a valid web address you like http://www.yahoo.com for example in the web address blank and then press Enter. If it can work, the website will appear, that means your Network to the Internet is under normal situation.

  • Page 21: Testing Wirh Dos (Windows Xp Platform)

    1.5.1.2 Testing wirh DOS (Windows XP platform) 【 【 【 【 Step1】 】 】 】 Go to start > Run. 【 【 【 【 Step2】 】 】 】 Input cmd in the blank, and then click on OK button. The DOS icon will appear. 【...
  • Page 22 If it can’t work, it will show Request timed out.

  • Page 23: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Diagram of connecting hardware to WE-1120 The NES Mini Server Router with BT is a portable and convenient wireless solution for the traveling business person delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps. Use it in conference rooms, hotel rooms, or even at hotspots. The Wireless Pocket Router/AP might be small in size, but huge in functionality, supporting multiple operation modes, including Access Point (AP) mode, Router mode, and Wireless Client mode.

  • Page 24: Clint Mode Hardware Connection And Application

    Router with BT via LAN port or Wireless (WDS). The administrator can do the Quick Setup including LAN Setup, Wireless Setup, USB Disk Management Setup, User Account Management Setup, FTP Server Setup, BT Torrent Download, Web Camera Setup, Time, Password Setup, Samba Server Setup and Printer Server Setup. 2.1.3 Clint Mode Hardware connection and application As Client Mode, NES Mini Server Router with BT will be a Wireless Adapter, and users can...

  • Page 25: Chapter 3 Router Mode

    Chapter 3 Router Mode Administrator Quick Setup Instruction Make sure to switch the mode into Router Mode, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.1 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 26 User Name and Password The default values for Username and Password are “admin” and “admin” (all in lowercase letters). Notice: Only the password can be changed, please read setup “3.2.5 Password Setup” or “3.6.2 Change Password”. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 27: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 28 Quick Setup Basic Table List Click “Basic” button to begin setup including WAN Setup, LAN Setup, Wireless Setup, Time Server Setup and Password Setup. Default setting and has to be set Quick Setup of Basic instruction WAN Setup: Setup the connecting type provided by your ISP, 4 modes of WAN connection are supported by WE-1120 –...

  • Page 29: Wan Setup (Internet Connection)

    3.2.1 WAN Setup (Internet Connection) WAN is short for Wide Area Network. The WAN settings can be referred to as the Public setting. All IP information in the WAN settings is public IP addresses which are accessible on the Internet. The WE-1120 supports 4 connection types to WAN. Select one of the WAN connection modes required by your ISP in below Internet Connection Configuration page, the WAN setting pages will differ depending on what kind of WAN Type you select.

  • Page 30: Wan Type - Static Ip

    3.2.1.1 WAN Type – Static IP Choose Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter in the IP address, IP Netmask and IP Gateway provided by your ISP. Each IP address entered in the fields must be in the appropriate IP form, which are four IP octets separated by a dot (x.x.x.x).

  • Page 31: Wan Type - Dynamic Ip

    3.2.1.2 WAN Type – Dynamic IP Choose Dynamic IP to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services. If ISP provided you DNS information, please select “Specify DNS Server IP”;...

  • Page 32: Wan Type - Pppoe

    3.2.1.3 WAN Type – PPPoE This option is typically used for DSL services. Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses PPPoE connection. Your ISP will provide you with a username and password. MTU stands for Maximum Transmission Unit. For PPPoE connections, you may need to change the MTU setting in order to work correctly with your ISP.

  • Page 33: Wan Type - Pptp

    3.2.1.4 WAN Type – PPTP This option is typically used for DSL services. Some DSL service providers supply a special DSL modem. This kind of modem only supports the PPTP tunnel to access the Internet, you should create a PPTP tunnel that carries a PPP session and terminates on the DSL model.

  • Page 34: Lan Setup

    3.2.2 LAN Setup If you are using the WE-1120 with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You must assign a unique IP address to each device residing on your LAN. The LAN IP address identifies the router as a node on your network;...

  • Page 35: Wireless Setup

    3.2.3 Wireless Setup WE-1120 is based on industry standards to provide compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the router will allow you to access the data you want, when and where you want it.

  • Page 36: Time Server Setup

    3.2.4 Time Server Setup The section provides to change the Time. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the router’s date and time does not affect the date and time on your PCs. Select your time zone from the “Time Zone”...

  • Page 37: Password Setup

    3.2.5 Password Setup Here suggest changing the password for logging into the configuration manager under security reason. The password may consist of A-Z, a-z, 0-9, underscores, and a single dot (.) For changing password, please fills the password information into above blanks, and then clicks on “Next”...
  • Page 38 Quick Setup Application Table List Click “Application” botton to begin setup including USB Disk Management Setup, User Account Management Setup, Firewall Setup, QoS Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup. Default setting and has to be set. Default setting and has to be set.

  • Page 39: Usb Disk Management Setup

    3.2.6 USB Disk Management Setup Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting via click on the button in this page. Select the USB Disk and click on “OK”...

  • Page 40: User Account Management Setup

    3.2.7 User Account Management Setup Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text. Input the user’s name and password, and set each user’s right and space arrangement and then click on “Add”.

  • Page 41: Firewall Setup

    3.2.8 Firewall Setup The Firewall rules of WE-1120 are an advance feature used to deny or allow traffic from passing through the router. The default setting for Firewall Protection Level security is in Low Level, which Attacks Blocking Policy, allow all Inbound and Outbound IP Filter Policy, and allow all router service access policy from WAN;...

  • Page 42: Qos Configuration Setup

    3.2.9 QoS Configuration Setup QoS management helps to set and evaluate QoS policies and goals. It is the particular concern for the continuous transmission of high-bandwidth video and multimedia information. Transmitting this kind of content dependably is difficult in public networks using ordinary best effort protocols.

  • Page 43: Ftp Server Setup

    3.2.10 FTP Server Setup WE-1120 can be the FTP Server provides users to transmit files, also for the guest can download the files from assign website. Moreover, by connecting USB HDD, USB Flash to the router, user can easily set up a FTP Server to share or download files for local or remote users.

  • Page 44: Printer Server Setup

    3.2.11 Printer Server Setup WE-1120 supports LPR Protocol to setting printer, you can share the printer from LAN / WAN. If the printer isn’t connected, you can’t choose “Enable”. Enable these servers on your demand and click on “Next” button to connect to next setup. Notice: After above Printer Server in Quick Setup finish, the related printing setting on WE-1120 and PC have to be set also.

  • Page 45: Web Camera Server Setup

    3.2.12 Web Camera Server Setup If you plan to use the WE-1120 as a Web Camera site, connect a supported USB Web Camera to the USB port of the WE-1120. To enable the webcam server and access from WAN as demand, and the Image format can be selected. Make sure the webcam already connected to WE-1120, and then select “Enable”...

  • Page 46: Samba Server Configuration Setup

    3.2.13 Samba Server Configuration Setup Samba is a software package that gives network administrators flexibility and freedom in terms of setup, configuration, and choice of systems and equipment. Support NetBIOS protocol, the consumer sharing file and printer which provides as the My Network Places.

  • Page 47: Ip Config

    IP Config This function allows you to add routing rules into WE-1120. It is useful if you connect several computers behind WE-1120 to share the same connection to Internet. 3.3.1 Select WAN under the IP Config menu. WE-1120 supports four WAN connection types, i.e. Static IP, Dynamic IP, PPPoE and PPTP.
  • Page 48 3.3.1.1 Static IP The WAN (Wide Area Network) page shows the settings that are used to connect to your ISP (Internet Service Provider). Please select the Static IP for your specific ISP. If you applied for a Static IP connection type from ISP, please follow the steps to setup your WAN connection.
  • Page 49 3.3.1.2 Dynamic IP If you applied for a Dynamic IP connection type from ISP, please follow the steps to setting your WAN connection. Cable modem providers typically use dynamic assignment of IP Address. 1. Host Name The host name is optional; but if your ISP requires you to input a specific host name, please input it in, for example WE-1120 applied for from ISP.
  • Page 50 3.3.1.3 PPPoE If you applied for a PPPoE connection type from ISP, please follow the steps to setup your WAN connection. 1. User Name Input your User Name supplied by ISP. If you don’t know, please check with your ISP. 2.
  • Page 51 restarted or if the connection is dropped. 6. DNS If ISP provided you DNS information, please select “Specify DNS Server IP” and input the DNS information into the blank; otherwise, select “No Default DNS Server”. 7. Apply & Cancel Click on Apply button to continue. Click on Cancel button to clean the setting on this page.
  • Page 52 3. PPTP Password Input the Password supplied by ISP. 4. Retype your Password Retype the password into this blank for confirming. 5. PPTP Server IP Input the Server IP supplied by ISP. If you don’t know, please check with your ISP. 6.

  • Page 53: Lan

    3.3.2 Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want. 1.

  • Page 54: Wireless

    This field specifies the first address in the pool to be assigned by the DHCP server in your local network. Default setting is from 2. 5. End IP This filed specifies the last address in the pool to be assigned by the DHCP server in your local network.
  • Page 55 1. Wireless Select AP/Bridge or WDS to allow or disallow the wireless operation. 2. Wireless Mode This field indicates the 802.11g interface mode. “802.11G” prevents the 802.11b clients from accessing the router. “802.11B/G” allows both 802.11b and 802.11g clients to access the router.
  • Page 56 3. ESSID You can use the default ESSID and radio channel unless more than WE-1120 or Access Point is deployed in the same area. Under this situation, you should use a different ESSID and radio channel for each WE-1120 or Access Point. All WE-1120 and your wireless LAN card must have the same ESSID to allow a wireless mobile client to roam between WE-1120s.
  • Page 57 flow, only minor modifications to the value range between 256 and 2346 are recommended. 10. Authentication Mode Four authentication methods are supported: Open and Shared. Select Open, your wireless network would be intruded by anonymous. Not only your network bandwidth would be shared;...
  • Page 58 symbols in the blank, the WE-1120 uses an algorithm to generate four WEP keys for encryption. If you want to type in the keys manually, leave this filed blank. Note: This function eases users from having to remember their passwords. But this isn’t as secure as manual assignment.
  • Page 59 Radius with 802.x: Check this circle to enable Radius client function. WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key. RADIUS Server IP: The IP address of RADIUS server. RADIUS Server Port: The UDP port number that the RADIUS server is listed.

  • Page 60: Ddns

    3.3.4 DDNS Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static Please s hostname. Please configure the dynamic DNS below. elect DDNS under the IP Config menu, and follow the instructions below to enter the DDNS setting page to configure the settings you want.

  • Page 61: Advance

    Advance There are NAT settings, Firewall setting and QoS setting included in Advance setting. The Advanced setting is in Router Mode only. 3.4.1 NAT is a method of mapping one or more IP addresses and/or services ports into different specified services, where NAT stands for Network Address Translation. It allows the internal IP addresses of many computers on a Local Area Network (LAN) to be translated to one public address, saving users’...

  • Page 62: Virtual Server

    3.4.1.1 Virtual Server To make services, like WWW, FTP, provided by a server in your local network accessible for outside users, you should specify a local IP address to the server. Then, add the IP address and network protocol type, port number, and name of the service in the following list.
  • Page 63 5. Private Port: Specify the private port number of the service offered by the internal host. 6. Public Port: Specify the public port number of the service in Internet. 7. Schedule: Setup the schedule for server. 8. Add: Click on “Add” button to record this setting. 9.

  • Page 64: Virtual Dmz

    3.4.1.2 Virtual DMZ Virtual DMZ (De-Militarized Zone） allows you to expose one computer to Internet, so that all inbound packets will be redirected to the computer you set. It is useful while you run some applications that use uncertain incoming ports. Please use it carefully. 1.

  • Page 65: Firewall

    3.4.2 Firewall The Firewall function helps protect your local network against attack from outside. It also provides a way of restricting users on the local network from accessing the Internet. Additionally, it can filter out specific packets to trigger the router to place an outgoing connection.
  • Page 66 Service (DoS) attacks, Ping of Death (illegal ping packet sizes or excessive ICMP messages), SYN Flood, LAND Attack, and IP Spoofing. Enable it if you need. 3. Blocking ICMP Ping from WAN Side: The purpose of ICMP is to provide feedback regarding the network and datagram, it is not to make IP a reliable transport mechanism.
  • Page 67 users. (“SYN” is short for SYN chronize”; this is the first step in opening an Internet connection). You can select this box if you wish to protect the network from TCP SYN flooding. WinNuke: Check or un-check this option to enable or disable protection against WinNuke attacks.
  • Page 68 ICMP Verbose: Check or un-check this option to enable or disable protection against ICMP error message attacks. ICMP messages can be used to fold your network with undesired traffic. Max IP Fragment Count: Enter the maximum number of fragments the Firewall should allow for every IP packet.

  • Page 69: Ip Filter

    3.4.2.2 IP Filter Use IP Filter to deny LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for the specific IP address. 1. Enable IP Filter: Check Enable or Disable to apply IP Filter function. 2.
  • Page 70 7. Listen: To check if a computer is on the Internet. It sends ping packets and listens for replies from the specific host. 8. Time Ranges: Apply IP filter by setting time ranges. 9. Action: Select Deny, the IP filter will deny for above time range, otherwise, to allow IP filter in above time.

  • Page 71: Mac Filter

    3.4.2.3 MAC Filter Use MAC Filters to deny LAN computers by their MAC addresses from accessing the Internet. You can manually add a MAC address that is currently connected to the WE-1120. 1. MAC Filter Action: To Deny or Allow all MAC Filter action. 2.
  • Page 72 6. Time Ranges: Apply MAC Filter by setting time ranges. 7. Add, Apply & Cancel After finish above setting, click Add button to create the MAC configuration rule. Click on Apply button to add the settings into the list table. Click on Cancel button to clean the setting on this page.

  • Page 73: Url Filter

    3.4.2.4 URL Filter Keyword based URL （Uniform Resource Locator） filtering allows you to define one or more keywords that should not appear in URL’s. Any URL containing one or more of these keywords will be blocked. This is a policy independent feature i.e. it cannot be associated to ACL rules.
  • Page 74 5. Time Ranges: Apply URL Filter by setting Time ranges. 6. Add, Apply & Cancel After finish above setting, click Add button to create the URL rule. Click on Apply button to add the settings into the list table. Click on Cancel button to clean the setting on this page. 7.

  • Page 75: Qos

    3.4.3 Quality of Service (QoS) refers to the capability of a network to provide better service to selected network traffic over various technologies, including Frame Relay, Asynchronous Transfer Mode (ATM), Ethernet and 802.1x networks, and IP-routed networks that may use any or all of these underlying technologies.
  • Page 76 4. Application: Including FTP, HTTP, E-mail, Telnet, Voice, Games, IM and Video priority setting. 5. Apply & Cancel Click on Apply button to save the setting. Click on Cancel button to clean the setting on this page.

  • Page 77: Server

    Server The WE-1120 provides Samba Server, FTP Server, Bit Torrent Donwnload, Web Camera Server and Printer Server application. 3.5.1 Samba Server Support NetBIOS Protocol, the consumer sharing file or printer which provides as the “My Network Places”. 1. Enable Samba Server Enable or disable this function.

  • Page 78: How To Enter The Sharing Floder

    4. Server Description You can input description of the server, default is “BT Server Router!”. 5. Apply & Cancel Click on Apply button to finish setting. Click on Cancel button to clean the setting on this page. 3.5.1.1 How to enter the sharing floder Please follow below step.
  • Page 79 Step 4: Appear following menu, can open following to share internal data. Note: The most meetings appear four icons. 1. If connected USB flash or HDD, and then enable samba server function, it will appear a samba folder. 2. If connected USB printer, and then enable printer server function, it will appear a printer icon.

  • Page 80: Ftp Server

    3.5.2 FTP Server By directly connecting USB storage devices to any USB port, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or MP3 music form the same storage device in most easy and timely fashion.
  • Page 81 5. Idle connection Time-Out: When a specific time value is added, FTP Server will be de-activated if it has no activity within the time limit. 6. Apply & Cancel Click on Apply button to continue. Click on Cancel button to clean the setting on this page.

  • Page 82: Bit Torrent Download

    3.5.3 Bit Torrent Download Support downloads file of BT from internet. BT application is just only for administrator use. 1. Torrent: Click “Browse…” button, to search BT file in your PC. 2. Target Path: Create save path of folder in the download folder. 3.

  • Page 83: Web Camera Server

    3.5.4 Web Camera Server The WE-1120 has built-in Web Camera Server. By connecting web camera to the router, it allows user to monitor their home or office from remote locations. Motion Detection function also been built-in and allows user to use webcam to detect any motion at their home or office and send email alert with captured images.

  • Page 84: Web Camera Advanced Configuration

    3.5.4.2 Web Camera Advanced Configuration Click on “Record Setting” button, and the screen will appear as below. 1. Enable save image: If you want to save the image from webcam, please check on Enable. 2. Save image interval: For saving image, you can set the save interval time, the default value is 5 seconds.

  • Page 85: Application For Web Camera

    8. Remote FTP password: Input the remote password. 9. Remote FTP Directory: To provide option of which folder should be used for saving webcam image. 10. Back: Click on Back button for returning to Webcam Basic Setting screen. 11. Apply & Cancel Click on Apply button to continue.

  • Page 86: Web Camera Monitoring Via Wan Connecting

    3.5.4.3.1.1 Web Camera Monitoring via WAN connecting For viewing the image via webcam from WAN connecting, below is the diagram. How to check your WAN IP address To monitor the image via webcam from outside door, you need to now the WAN IP address. Select “Network Configuration”...
  • Page 87 Monitor the image via webcam from WAN Input the WAN IP Address (as you see in above screen) into browser blanks, and you will see the personal account login screen appear then input your own user account and password. After login by personal, your will see the personal control panel screen as below, please click on “My Webcam”.

  • Page 88: Web Camera Motoring Via Wifi Mobile Phone

    3.5.4.3.1.2 Web Camera Motoring via WiFi mobile phone Also, you may view the monitor live action through WiFi mobile phones. Please key in the WAN IP address plus “/webcam.html” (ex: http://210.64.134.25/webcam.html) into the mobile phone’s browser blank and you will see the webcam user login screen appeared.

  • Page 89: Web Camera Recording

    After login by your own account, you will see the monitor image from web camera via WiFi mobile phone. 3.5.4.3.2 Web Camera Recording 3.5.4.3.2.1 Administrator Setting WE-1120 also can record the pictures from Webcam; only Administrator can do the settings. Select Web Camera Server from main Menu and Enable this function, click on Record Setting button for further setting.
  • Page 90 To setup the Webcam Advanced Configuration for each blank, and the image from webcam will be recorded into your USB HDD or Remote FTP, please refer to User’s Manual for the detail setting. Click on Apply after setup finish. For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files.
  • Page 91 After click on Disk Explorer, you will see the folder screen appear including all the folders inside the WE-1120. (Below is the example.) All the image files will be saved in the folder “webcam_recorded_files”, please open the file for checking.

  • Page 92: Personal Application

    3.5.4.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam recording images from My Document. Please login by your own personal account. For viewing your own folder, please click on “My Document”. After click on “My Document”, you will see below folder screen appeared. Notice: If you can’t open the folder inside the FTP router, please check with administrator to setup your FTP &...

  • Page 93: Printer Server

    3.5.5 Printer Server The WE-1120 has USB ports for connection with printers to be shared on the local area network. Follow the below steps to setup your PC to connect to a Printer server. 1. Enable Printer Server: Check Enable for applying printer server. 2.

  • Page 94: Printer Setting On Pc

    3.5.5.1 Printer Setting on PC After Enable Printer Server in Quick Setup and Printer Server Configuration, please follow below steps to set the detail LPR settings in your PC. (Below example is for Windows XP platform.) Step 1: After setting USB printer in WE-1120’s setting screen, please go to start >...
  • Page 95 Step 3: Click “Next” Step 4: Click the “Local printer attached to this computer”, and then click “Next”...
  • Page 96 Step 5: Click the “Create a new port” and select the “Standard TCP/IP Port”, and then click “Next” Step 6: Click “Next”...
  • Page 97 Step 7: Input the IP address of WE-1120: 192.168.1.1 (Router Mode), and then click “Next” Step 8: Select the “Custom” and click the “Settings”, and then click “Next”...
  • Page 98 Step 9: Select “LPR” and give it the same “Queue Name” as USB Printer Name as shown, and mark “LPR Byte Counting Enabled”. Finally, click on “OK” button. Step 10: Click the “Finish”...
  • Page 99 Step 11: Select the “Manufacturer” and “Printers”. If your printer doesn’t listed in the table, please install its driver CD and then click on “Have Disk…” button for installation. Or click on “Next” button to finish the setting. You can name your printer, set it as default printer and share your printer in the next screens, the Printer Server setting is getting finally.

  • Page 100: System Management

    System management The WE-1120 provides system management including Reboot, Change Password, Firmware Upgrade, Profile Save, Remote Management, Time, UPnP Setting, User Account Management, Folder Management and Email Alert. Following is each setting. 3.6.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your WE-1120 by this setting.

  • Page 101: Change Password

    3.6.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the username for administrator is “admin” and can’t be changed anymore. 1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3.

  • Page 102: Firmware Upgrade

    3.6.3 Firmware Upgrade You can upgrade the firmware of the WE-1120 at this page. Make sure the firmware you want to use is on the local hard drive of the computer 1. Update Firmware: Click on “Browse…” button to browse the local hard drive and locate the firmware to be used for upgrade.

  • Page 103: Profile Save

    3.6.4 Profile Save To backup the current configuration setting or load the backup data, also you can restore the WE-1120 to default setting by this function. 1. Save Settings To PC: Click on “Save” button for saving the configuration setting into assigned location.

  • Page 104: Remote Management

    3.6.5 Remote Management Remote Management allows the WE-1120 to be configured from the Internet by a web browser. In general, only a member of your network can browse the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.
  • Page 105 4. Description: Enter the description for the remote configuration. 5. Add, Apply & Cancel Click on Add button to increase the remote rule, click on Apply button to continue, or click on Cancel button to clean the setting on this page. 6.

  • Page 106: Time

    3.6.6 Time The System time is the time used by the WE-1120 for scheduling services. You can manually set the time or connect to a NTP (Network Time Protocol) server. If a NTP server is set, you will only need to set the time zone. If you manually set the time, you may also set Daylight Saving dates and the system time will automatically adjust on those dates.
  • Page 107 each drop-down list. 6. Set Time Set the time of manual into the router. 7. Apply & Cancel Click on Apply button to continue, or click on Cancel button to clean the setting on this page.

  • Page 108: Upnp Setting

    3.6.7 UPnP Setting （Universal Plug and Play，UPnP） UPnP allows users to connect their UPnP-enabled broadband router, printer server and other devices right to the network with zero-configuration, meaning easier setup for installing the device on the network. The automatic discovery feature enables the device to obtain an IP address, present and describe itself to other devices and PCs on the network without having to install drivers, and then configure and use those devices.

  • Page 109: User Account Management

    3.6.8 User Account Management Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text. 1.
  • Page 110 3. Password: Setup the user’s password. 4. Group Right: Enable the use to view the webcam’s recording files. 5. User Right: Allow the user to monitor from webcam or use FTP server and Samba server. 6. Activated: Click on “On” to allow the user’s right can be applied immediately. 7.

  • Page 111: Folder Management

    3.6.9 Folder Management Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting / partition via click on the button in this page. 1.

  • Page 112: Email Alert

    3.6.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And the WE-1120 provides the email alert facility so that the Log messages can packed as an e-mail for someone who wants to receive these messages. In the following, here explain how to setup the email alert function.
  • Page 113 4. SMTP Auth: If the email alert needs to be send via SMTP authentication, please check on this item, and then enter the data into the blanks of Account and Password. 5. Account & Password: Enter the email account and password which you want to send the alert.

  • Page 114: Log & Status

    Log & Status The WE-1120 provides the log list and status of connection, user’s account. 3.7.1 Network Configuration Network Configuration shows all the connecting situation of LAN, WAN, Wireless and USB devices plugging. Each block shows configuration status, you may click on Refresh button to update the screen list, or Release button to release WAN IP and Renew button to get new IP address.

  • Page 116: User Account List

    3.7.2 User Account List This section shows the entire user’s account right and status. Check the user name, status and opened directory/file in this screen. 3.7.3 Event Log The WE-1120 provides system log data for review. The system log detail list is shown on this screen. Logout To logout the router and system will return to Login homepage.

  • Page 117: Personal Configuration

    Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.1 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not. If you don’t know how to do, please refer to “1.5 Get your IP Automatically &...
  • Page 118 Personal Panel Screen shows the Personal Panel for each right under the setting by administrator including Anonymous, My Document, My Webcam, and My Status. WE-1120 provides personal control panel for each user to entrance to each application screen, please click on each icon for application. The icons will be in gray color and can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 119: Anonymous

    3.9.1 Anonymous "Anonymous" display the administrator store the file in the USB hard drive, can look into folder or make duplicate file to PC, the folder follows of detailed. After selecting "Anonymous", the data which appears administrator to share folder, can download file to go to consumer personal hard drive.

  • Page 120: My Document

    3.9.2 My Document “My Document” will show all the files in the HDD under each user’s account. Also can create the folder or copy file into web HD directly. Below description is the detail folder inside. Click on “My Document” and it’ll open another web page to show all the files in your own Web HD.

  • Page 121: My Webcam

    3.9.3 My Webcam “My Webcam” can view the on time image when turn on the web camera. The image can be viewed by “My Webcam” as below example image. Notice: If the image from webcam can’t be viewed, it may cause by Internet Security setting and need to be corrected or install the Java program.

  • Page 122: My Status

    3.9.4 My Status “My Status” shows all the login information for your personal account. Click on “Main Menu” text to back to Personal Panel and select the other personal application.

  • Page 123: Site Map

    3.10 Site Map The WE-1120 provides site map clicking for each icon and do the setting easily from the home page.

  • Page 124: Chapter 4 Ap Mode

    Chapter 4 AP Mode Administrator Quick Setup Instruction Make sure to switch the operation mode into AP Mode, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 125 Username and Password The factory default values for Username and Password are “admin” and “admin” (all in lowercase letters). Notice: Only the password can be changed, please read setup “4.2.4 Password Setup” or “4.5.2 Change Password”. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 126: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, Wireless and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 127 Quick Setup full function table list Click “Basic” botton to begin setup including LAN Setup、Wireless Setup、Time Server Setup and Password Setup. Default setting and has to be set Quick Setup of Basic instruction LAN Setup: Setup the IP Address for LAN and Group. If you are using the Router with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch.

  • Page 128: Lan Setup

    4.2.1 LAN Setup If you are using the WE-1120 with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You must assign a unique IP address to each device residing on your LAN. The LAN IP address identifies the router as a node on your network;...

  • Page 129: Wireless Setup

    4.2.2 Wireless Setup WE-1120 is based on industry standards to provide compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the router will allow you to access the data you want, when and where you want it.

  • Page 130: Time Server Setup

    4.2.3 Time Server Setup The section provides to change the Time. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the router’s date and time does not affect the date and time on your PCs. You may set the time by manual.

  • Page 131: Password Setup

    4.2.4 Password Setup Here suggest changing the password for logging into the configuration manager under security reason. The password may consist of A-Z, a-z, 0-9, underscores, and a single dot (.) For changing password, please fills the password information into above blanks, and then clicks on “Next”...
  • Page 132 Quick Setup Application Table List Click “Application” button to begin setup including USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup. Default setting and has to be set. Default setting and has to be set.

  • Page 133: Usb Disk Management Setup

    4.2.5 USB Disk Management Setup Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting via click on the button in this page. Select the USB Disk and click on “OK”...

  • Page 134: User Account Management Setup

    4.2.6 User Account Management Setup Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text. Input the user’s name and password, and then click on “Add”, and you will see the user information appear on the “User Account List”.

  • Page 135: Ftp Server Setup

    4.2.7 FTP Server Setup WE-1120 can be the FTP Server provides users to transmit files, also for the guest can download the files from assign website. Moreover, by connecting USB HDD, USB Flash to the router, user can easily set up a FTP Server to share or download files for local or remote users.

  • Page 136: Printer Server Setup

    4.2.8 Printer Server Setup WE-1120 supports LPR Protocol to setting printer, you can share the printer from LAN / WAN. If the printer isn’t connected, you can’t choose “Enable”. Enable these servers on your demand and click on “Next” button to connect to next setup. Notice: After above Printer Server in Quick Setup finish, the related printing setting on WE-1120 and PC have to be set also.

  • Page 137: Web Camera Server Setup

    4.2.9 Web Camera Server Setup If you plan to use the WE-1120 as a Web Camera site, connect a supported USB Web Camera to the USB port of the WE-1120. To enable the webcam server and access from WAN as demand, and the Image format can be selected. Make sure the webcam already connected to WE-1120, and then select “Enable”...

  • Page 138: Samba Server Setup

    4.2.10 Samba Server Setup Samba is a software package that gives network administrators flexibility and freedom in terms of setup, configuration, and choice of systems and equipment. Support NetBIOS protocol, the consumer sharing file and printer which provides as the My Network Places.

  • Page 139: Ip Config

    IP Config This function allows you to add routing rules into WE-1120. It doesn’t support WAN and DDNS functions. 4.3.1 Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want.
  • Page 140 3. IP Gateway Input the default gateway of your LAN. 4. DHCP Enable or Disable DHCP services. The DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer if Enabled. 5. Start IP This field specifies the first address in the pool to be assigned by the DHCP server in your local network.

  • Page 141: Wireless

    4.3.2 Wireless The WE-1120 enables fastest 54 Mbps IEEE802.11g wireless transmissions and keeps compatibility with existing IEEE 802.11b devices. The WE-1120 complies with IEEE 802.11b standard. Please select Wireless under the Main menu. Follow the instructions to enter the Wireless setting page to configure the settings you want. 1.
  • Page 142 ESSID and radio channel for each WE-1120 or Access Point. All WE-1120 and your wireless LAN card must have the same ESSID to allow a wireless mobile client to roam between WE-1120s. By default, the ESSID is set to “BT_Server_Router”. 4.
  • Page 143 10. Authentication Mode Four authentication methods are supported: Open and Shared. Select Open, your wireless network would be intruded by anonymous. Not only your network bandwidth would be shared; but also transmitting data might be intercepted. Select Shared function and it can be taken effect. 11.
  • Page 144 WEP Key: At most four keys can be set. A WEP key is either 10 or 26 hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in the WEP drop-down list. The WE-1120 must have at least the same default key. 12.
  • Page 145 Radius with 802.x: Check this circle to enable Radius client function. WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key. RADIUS Server IP: The IP address of RADIUS server. RADIUS Server Port: The UDP port number that the RADIUS server is listed.

  • Page 146: Server

    Server The WE-1120 provides Samba Server, FTP Server, Bit Torrent Download, Web Camera Server and Printer Server application. 4.4.1 Samba Server Support NetBIOS Protocol, the consumer sharing file or printer which provides as the “My Network Places”. 1. Enable Samba Server Enable or disable this function.

  • Page 147: How To Enter The Sharing Floder

    4. Server Description You can input description of the server, default is “BT Server Router!”. 5. Apply & Cancel Click on Apply button to finish setting. Click on Cancel button to clean the setting on this page. 4.4.1.1 How to enter the sharing floder Please follow below step.
  • Page 148 Step 4: Appear following menu, can open following to share internal data. Note: The most meetings appear four icons. 1. If connected USB flash or HDD, and then enable samba server function, it will appear a samba folder. 2. If connected USB printer, and then enable printer server function, it will appear a printer icon.

  • Page 149: Ftp Server

    4.4.2 FTP Server By directly connecting USB storage devices to any USB port, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or MP3 music form the same storage device in most easy and timely fashion.
  • Page 150 5. Idle connection Time-Out: When a specific time value is added, FTP Server will be de-activated if it has no activity within the time limit. 6. Apply & Cancel Click on Apply button to continue. Click on Cancel button to clean the setting on this page.

  • Page 151: Bit Torrent Download

    4.4.3 Bit Torrent Download Support downloads file of BT from internet. BT application is just only for administrator use. 1. Torrent: Click “Browse…” button, to search BT file in your PC. 2. Target Path: Create save path of folder in the download folder. 3.

  • Page 152: Web Camera Server

    4.4.4 Web Camera Server The WE-1120 has built-in Web Camera Server. By connecting web camera to the router, it allows user to monitor their home or office from remote locations. Motion Detection function also been built-in and allows user to use webcam to detect any motion at their home or office and send email alert with captured images.

  • Page 153: Web Camera Advanced Configuration

    4.4.4.2 Web Camera Advanced Configuration Click on “Record Setting” button, and the screen will appear as below. 1. Enable save image: If you want to save the image from webcam, please check on Enable. 2. Save image interval: For saving image, you can set the save interval time, the default value is 5 seconds.

  • Page 154: Application For Web Camera

    8. Remote FTP password: Input the remote password. 9. Remote FTP Directory: To provide option of which folder should be used for saving webcam image. 10. Back: Click on Back button for returning to Webcam Basic Setting screen. 11. Apply & Cancel Click on Apply button to continue.

  • Page 155: Web Camera Monitoring Via Wan Connecting

    4.4.4.3.1.1 Web Camera Monitoring via WAN connecting For viewing the image via webcam from WAN connecting, below is the diagram. Please setting your IP address of WAN, refer the below following introduction. Step 1: First connected to LAN, input the 192.168.1.254 in the address of Web Browser. And then click on “Administrator”...
  • Page 156 Step 2: Input Username and Password of administrator; enter the setting home page. Step 3: Select the LAN under IP Config section. Your IP address must be changed to same net segment with upper network. Such as IP Address: 192.168.2.49; IP Gateway: 192.168.2.1, then select “Disable”...
  • Page 157 Step 4: Select the “Remote Management” under System Management section. Change to 800 of HTTP Connection Port. And then click on the “Apply” button. Step 5: Connected to the WAN Port of WE-1120, catch your new IP address via Release and Renew command.
  • Page 158 Step 6: Input Username and Password of your own. You will see like as below monitor screen.

  • Page 159: Web Camera Recording

    4.4.4.3.2 Web Camera Recording 4.4.4.3.2.1 Administrator Setting WE-1120 also can record the pictures from Webcam; only Administrator can do the settings. Select Web Camera Server from main Menu and Enable this function, click on Record Setting button for further setting. To setup the Webcam Advanced Configuration for each blank, and the image from webcam will be recorded into your USB HDD or Remote FTP, please refer to User’s Manual for the detail setting.
  • Page 160 For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files. After click on Disk Explorer, you will see the folder screen appear including all the folders inside the WE-1120.

  • Page 161: Personal Application

    4.4.4.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam recording images from My Document. Please login by your own personal account. For viewing your own folder, please click on “My Document”. After click on “My Document”, you will see below folder screen appeared. Notice: If you can’t open the folder inside the FTP router, please check with administrator to setup your FTP &...

  • Page 162: Printer Server

    4.4.5 Printer Server The WE-1120 has USB ports for connection with printers to be shared on the local area network. Follow the below steps to setup your PC to connect to a Printer server. 1. Enable Printer Server: Check Enable for applying printer server. 2.

  • Page 163: Printer Setting On Pc

    4.4.5.1 Printer Setting on PC After Enable Printer Server in Quick Setup and Printer Server Configuration, please follow below steps to set the detail LPR settings in your PC. (Below example is for Windows XP platform.) Step 1: After setting USB printer in WE-1120’s setting screen, please go to start >...
  • Page 164 Step 3: Click “Next” Step 4: Click the “Local printer attached to this computer”, and then click “Next”...
  • Page 165 Step 5: Click the “Create a new port” and select the “Standard TCP/IP Port”, and then click “Next” Step 6: Click “Next”...
  • Page 166 Step 7: Input the IP address of WE-1120: 192.168.1.254 (AP Mode), and then click “Next” Step 8: Select the “Custom” and click the “Settings”, and then click “Next”...
  • Page 167 Step 9: Select “LPR” and give it the same “Queue Name” as USB Printer Name as shown, and mark “LPR Byte Counting Enabled”. Finally, click on “OK” button. Step 10: Click the “Finish”...
  • Page 168 Step 11: Select the “Manufacturer” and “Printers”. If your printer doesn’t listed in the table, please install its driver CD and then click on “Have Disk…” button for installation. Or click on “Next” button to finish the setting. You can name your printer, set it as default printer and share your printer in the next screens, the Printer Server setting is getting finally.

  • Page 169: System Management

    System Management The WE-1120 provides system management including Reboot, Change Password, Firmware Upgrade, Profile Save, Remote Management, Time, UPnP Setting, User Account Management, Folder Management and Email Alert. Following is each setting. 4.5.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your WE-1120 by this setting.

  • Page 170: Change Password

    4.5.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the username for administrator is “admin” and can’t be changed anymore. 1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3.

  • Page 171: Firmware Upgrade

    4.5.3 Firmware Upgrade You can upgrade the firmware of the WE-1120 at this page. Make sure the firmware you want to use is on the local hard drive of the computer 1. Update Firmware: Click on “Browse…” button to browse the local hard drive and locate the firmware to be used for update.

  • Page 172: Profile Save

    4.5.4 Profile Save To backup the current configuration setting or load the backup data, also you can restore the WE-1120 to default setting by this function. 1. Save Settings To PC: Click on “Save” button for saving the configuration setting into assigned location.

  • Page 173: Remote Management

    4.5.5 Remote Management Remote Management allows the WE-1120 to be configured from the Internet by a web browser. In general, only a member of your network can brose the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.
  • Page 174 4. Description: Enter the description for the remote configuration. 5. Add, Apply & Cancel Click on Add button to increase the remote rule, click on Apply button to continue, or click on Cancel button to clean the setting on this page. 6.

  • Page 175: Time

    4.5.6 Time You can set date and time, system time will automatically change time via PC’s time in the WE-1120. 1. Local Time Default time of Router. 2. Set the Time Select this item to setup time by manual, select the date and time from each drop-down list.

  • Page 176: Upnp Setting

    4.5.7 UPnP Setting Universal Plug and Play，UPnP) UPnP ( allows users to connect their UPnP-enabled broadband router, printer server and other devices right to the network with zero-configuration, meaning easier setup for installing the device on the network. The automatic discovery feature enables the device to obtain an IP address, present and describe itself to other devices and PCs on the network without having to install drivers, and then configure and use those devices.

  • Page 177: User Account Management

    4.5.8 User Account Management Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text. 1.
  • Page 178 3. Password: Setup the user’s password. 4. Group Right: Enable the use to view the webcam’s recording files. 5. User Right: Allow the user to monitor from webcam or use FTP server and Samba Server. 6. Activated: Click on On to allow the user’s right can be applied immediately. 7.

  • Page 179: Folder Management

    4.5.9 Folder Management Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting / partition via click on the button in this page. 1.

  • Page 180: Email Alert

    4.5.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And the WE-1120 provides the email alert facility so that the Log messages can packed as an e-mail for someone who wants to receive these messages. In the following, here explain how to setup the email alert function.
  • Page 181 4. SMTP Auth: If the email alert needs to be send via SMTP authentication, please check on this item, and then enter the data into the blanks of Account and Password. 5. Account & Password: Enter the email account and password which you want to send the alert.

  • Page 182: Log & Status

    Log & Status The WE-1120 provides the log list and status of connection, user’s account. Network Configuration Network Configuration shows all the connecting situation of LAN, Wireless and USB devices plugging. Each block shows configuration status, you may click on Refresh button to update the screen list.

  • Page 183: User Account List

    User Account List This section shows the entire user’s account right and status. Check the user name, status and opened directory / file in this screen. Event Log The WE-1120 provides system log data for review. The system log detail list is shown on this screen. You can click “Refresh” button to update this screen information.

  • Page 184: Logout

    Logout To logout the router via click on Logout button in Menu, and system will return to Login homepage. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 185 Personal Panel Screen shows the Personal Panel for each right under the setting by administrator including Anonymous, My Document, My Webcam, and My Status. WE-1120 provides personal control panel for each user to entrance to each application screen, please click on each icon for application. The icons will be in gray color and can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 186: Anonymous

    4.8.1 Anonymous "Anonymous" display the administrator store the file in the USB hard drive, can look into folder or make duplicate file to PC, the folder follows of detailed. After selecting "Anonymous", the data which appears administrator to share folder, can download file to go to consumer personal hard drive.

  • Page 187: My Document

    4.8.2 My Document “My Document” will show all the files in the HDD under each user’s account. Also can create the folder or copy file into web HD directly. Below description is the detail folder inside. Click on “My Document” and it’ll open another web page to show all the files in your own Web HD.

  • Page 188: My Webcam

    4.8.3 My Webcam “My Webcam” can view the on time image when turn on the web camera. The image can be viewed by “My Webcam” as below example image. Notice: If the image from webcam can’t be viewed, it may cause by Internet Security setting and need to be corrected or install the Java program.

  • Page 189: My Status

    4.8.4 My Status “My Status” shows all the login information for your personal account. Click on “Main Menu” text to back to Personal Panel and select the other personal application.

  • Page 190: Site Map

    Site Map The WE-1120 provides site map clicking for each icon and do the setting easily from the home page.

  • Page 191: Chapter 5 Client Mode

    Chapter 5 Client Mode Administrator Quick Setup Instruction Make sure to switch the mode into Client Mode, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://10.64.64.64 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 192 Username and Password The default values for Username and Password are “admin” and “admin” (all in lowercase letters). Notice: Only the password can be changed, please read setup “5.2.4 Password Setup” or “5.5.2 Change Password”. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 193: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 194 Quick Setup Basic Table List Click “Basic” button to begin setup including Site Survey、Wireless Setup、Time Server Setup and Password Setup. Default setting and has to be set Quick Setup of Basic instruction Site Survey: Search the wireless signal of AP to connect. Wireless Setup: Define the Wireless Mode, ESSID, TxRate, Channel and other wireless settings.

  • Page 195: Site Survey

    5.2.1 Site Survey You can see which AP singal in your range. Click “Rescan” button to search all wireless singal. Selecting you want to connec SSID, like Mini_Broadband_Router and then click “Next” button. 5.2.2 Wireless Setup Appear wireless signal information of Mini_Broadband_Router. If it has setting encryption type, you must setup the same encryption type and the same key, too.

  • Page 196: Time Server Setup

    5.2.3 Time Server Setup The section provides to change the Time. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the router’s date and time does not affect the date and time on your PCs. After finish setting, please click “Next”...

  • Page 197: Password Setup

    5.2.4 Password Setup Here suggest changing the password for logging into the configuration manager under security reason. The password may consist of A-Z, a-z, 0-9, underscores, and a single dot (.) For changing password, please fills the password information into above blanks, and then clicks on “Next”...
  • Page 198 Quick Setup Application Table List Click “Application” button to begin setup including USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup. Default setting and has to be set. Default setting and has to be set.

  • Page 199: Usb Disk Management Setup

    5.2.5 USB Disk Management Setup Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting via click on the button in this page. Select the USB Disk and click on “OK”...

  • Page 200: User Account Management Setup

    5.2.6 User Account Management Setup Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text.

  • Page 201: Ftp Server Setup

    5.2.7 FTP Server Setup WE-1120 can be the FTP Server provides users to transmit files, also for the guest can download the files from assign website. Moreover, by connecting USB HDD, USB Flash to the router, user can easily set up a FTP Server to share or download files for local or remote users.

  • Page 202: Printer Server Setup

    5.2.8 Printer Server Setup WE-1120 supports LPR Protocol to setting printer, you can share the printer from LAN / WAN. If the printer isn’t connected, you can’t choose “Enable”. Enable these servers on your demand and click on “Next” button to connect to next setup.

  • Page 203: Web Camera Server Setup

    5.2.9 Web Camera Server Setup If you plan to use the WE-1120 as a Web Camera site, connect a supported USB Web Camera to the USB port of the WE-1120. To enable the webcam server and access from WAN as demand, and the Image format can be selected. Make sure the webcam already connected to WE-1120, and then select “Enable”...

  • Page 204: Samba Server Configuration Setup

    5.2.10 Samba Server Configuration Setup Samba is a software package that gives network administrators flexibility and freedom in terms of setup, configuration, and choice of systems and equipment. Support NetBIOS protocol, the consumer sharing file and printer which provides as the My Network Places.

  • Page 205: Ip Config

    IP Config This function allows you to add routing rules into WE-1120. It is useful if you connect several computers behind WE-1120 to share the same connection to Internet. Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want.
  • Page 206 4. Start IP This field specifies the first address in the pool to be assigned by the DHCP server in your local network. Default setting is from 65. 5. End IP This filed specifies the last address in the pool to be assigned by the DHCP server in your local network.

  • Page 207: Site Survey

    Site Survey Please select “Site Survey” under the “IP Config” menu. Link Mode Please select “Infrastructure” or “Ad_hoc”, to enable wireless. RTS Threshold This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended.
  • Page 208 Frag Threshold This value should remain at its default setting of 2346. The range is 256-2346 bytes. It specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation.
  • Page 209 Support 64bits and 128bits WEP encryption, WEP can protect your data from eavesdroppers. The “128bits” method is more secure than the “64bits”. Key Type For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals can be inputed. For 128bits WEP key, either 13 ASCII characters or 26 hexadecimal digits can be inputed.

  • Page 210: Server

    Server WE-1120 provides Samba Server, FTP Server, Bit Torrent Download, Web Camera Server and Printer Server application. Samba Server Support NetBIOS Protocol, the consumer sharing file or printer which provides as the “My Network Places”. 1. Enable Samba Server Enable or disable this function. 2.

  • Page 211: How To Enter The Sharing Floder

    Input the server name, default is “WE-1120”. 4. Server Description You can input description, default is “BT Server Router!”. 5. Apply & Cancel Click on Apply button to finish setting. Click on Cancel button to clean the setting on this page. 5.4.1.1 How to enter the sharing floder Please follow below step.
  • Page 212 password, then press the "OK". Step 4: Appear following menu, can open following to share internal data. Note: The most meetings appear four icons. 1. If connected USB flash or HDD, and then enable samba server function, it will appear a samba folder. 2.

  • Page 213: Ftp Server

    FTP Server By directly connecting USB storage devices to any USB port, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or MP3 music form the same storage device in most easy and timely fashion.

  • Page 214: Bit Torrent Download

    Allow FTP access from WAN side by checking on Enable for this item. 4. FTP Server Port Define the FTP command transfer service port. If you want to change this port number, remember to change the service port setting of your FTP client, also. 5.

  • Page 215: Web Camera Server

    3. Add, Clear & Show Click “Add” button to start download. Click “Clear” button to clear the setting. Click “Show” button will appear the Download Process List like below, you can click “Stop” to stop download or click “Clear” to delete file. 4.

  • Page 216: Web Camera Server Basic Setting

    5.4.4.1 Web Camera Server Basic Setting 1. Enable webcam server Allow using this function for checking on Enable. 2. Access from WAN Allow webcam can access from WAN side by checking on Enable for this item. 3. Image format There are CIF & QCIF format can be selected for webcam. 4.

  • Page 217: Web Camera Server Advanced Configuration

    5.4.4.2 Web Camera Server Advanced Configuration Click on “Record Setting” button, and the screen will appear as below. Enable save image If you want to save the image from webcam, please check on Enable. Save image interval For saving image, you can set the save interval time, the default value is 5 seconds.

  • Page 218: Application For Web Camera

    Remote FTP port Input the FTP port number under URL to save image. Remote FTP user & password Enter the user’s name and password you like and it will be used to save the webcam image into the FTP server. Remote FTP Directory To provide option of which folder should be used for saving webcam image.
  • Page 219 Please setting your IP address of WAN, refer the below following introduction.
  • Page 220 Step 1: Selecting the “Log & Status” under “Network configuration”, check the IP address of wireless AP. Step 2: Open the web browser and input http://192.168.10.1 to address, it will appear the Homepage of Router Mode, this is homepage of WE-1100. Select Log & Status under Network Configuration menu, to check IP of WAN is 192.168.1.14.
  • Page 221 Step 3: Select the Virtual Server of NAT under Advance menu, and Enable virtual server function. Input 192.168.10.3 to the Private IP. Prvate Port and Public Port both input 80. Click Add to add list, and then click Apply to save setting.
  • Page 222 Step 4: Link the cable of WAN to PC, open web browser and input http://192.168.1.14/webcam.html to address; it will appear the Login screen. Step 5: After input your Username and Password, you will see the web camera monitor screen.

  • Page 223: Web Camera Recording

    5.4.4.3.2 Web Camera Recording 5.4.4.3.2.1 Administrator Setting WE-1120 also can record the pictures from Webcam; only Administrator can do this setting. Select Web Camera Server from main Menu and Enable this function, click on Record Setting button for further setting. To setup the Webcam Advanced Configuration for each blank, and the image from webcam will be recorded into your USB HDD or Remote FTP, please refer to User’s Manual for the detail setting.
  • Page 224 For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files. After click on Disk Explorer, you will see the folder screen appear including all the folders inside the WE-1120.

  • Page 225: Personal Application

    5.4.4.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam recording images from My Document. Please login by your own personal account. For viewing your own folder, please click on “My Document”. After click on “My Document”, you will see below folder screen appeared.

  • Page 226: Printer Server

    Notice: If you can’t open the folder inside the FTP router, please check with administrator to setup your FTP & Webcam’s right. Printer Server The WE-1120 has two USB ports for connection with printers to be shared on the local area network. Follow the below steps to setup your PC to connect to a Printer server.
  • Page 227 3. Printer Model: The printer model will be shown when plug the USB printer. 4. Printer Name: Input the name of printer you like. 5. Printer Description: Input the description of printer as your demand. 6. Apply & Cancel Click on Apply button to continue. Click on Cancel button to clean the setting on this page.

  • Page 228: Printer Setting On Pc

    Printer Setting on PC After Enable Printer Server in Quick Setup and Printer Server Configuration, please follow below steps to set the detail LPR settings in your PC. (Below example is for Windows XP platform.) Step 1: After setting USB printer in NES Mini Server Router’s setting screen, please go to start >...
  • Page 229 Step 2: Click “Add a printer” Step 3: Click “Next”...
  • Page 230 Step 4: Click the “Local printer attached to this computer”, and then click “Next” Step 5: Click the “Create a new port” and select the “Standard TCP/IP Port”, and then click “Next”...
  • Page 231 Step 6: Click “Next” Step 7: Input the IP address of WE-1120: 10.64.64.64 (Client Mode), and then click “Next”...
  • Page 232 Step 8: Select the “Custom” and click the “Settings”, and then click “Next” Step 9: Select “LPR” and give it the same “Queue Name” as USB Printer Name as shown, and mark “LPR Byte Counting Enabled”. Finally, click on “OK” button.
  • Page 233 Step 10: Click the “Finish” Step 11: Select the “Manufacturer” and “Printers”. If your printer doesn’t listed in the table, please install its driver CD and then click on “Have Disk…” button for installation. Or click on “Next” button to finish the setting. You can name your printer, set it as default printer and share your printer in the next screens, the Printer Server setting is getting finally.
  • Page 234 Step 12: Click on Finish button and all steps of setting printer server are completely.

  • Page 235: System Management

    System Management The WE-1120 provides system management including Reboot, Change Password, Firmware Upgrade, Profile Save, Remote Management, Time, UPnP Setting, User Account Management, Folder Management and Email Alert. Following is each setting. 5.5.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your WE-1120 by this setting.

  • Page 236: Change Password

    5.5.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the username for administrator is “admin” and can’t be changed anymore. 1. Old Password: Enter the original password you set. 2. New Password: Enter the new password you want to change. 3.

  • Page 237: Firmware Upgrade

    5.5.3 Firmware Upgrade You can upgrade the firmware of the WE-1120 at this page. Make sure the firmware you want to use is on the local hard drive of the computer 1. Update Firmware: Click on Browse button to browse the local hard drive and locate the firmware to be used for update.

  • Page 238: Profile Save

    5.5.4 Profile Save To backup the current configuration setting or load the backup data, also you can restore the WE-1120 to default setting by this function. 1. Save Settings To PC: Click on Save Button for saving the configuration setting into assigned location.

  • Page 239: Remote Management

    5.5.5 Remote Management Remote Management allows the WE-1120 to be configured from the Internet by a web browser. In general, only a member of your network can brose the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.
  • Page 240 4. Description: Enter the description for the remote configuration. 5. Add, Apply & Cancel Click on Add button to increase the remote rule, click on Apply button to continue, or click on Cancel button to clean the setting on this page. 6.

  • Page 241: Time

    5.5.6 Time You can set date and time, system time will automatically change time via PC’s time in the WE-1120. 1. Local Time Default time of Router. 2. Set the Time Select this item to setup time by manual, select the date and time from each drop-down list.
  • Page 242 5.5.7 UPnP Setting Universal Plug and Play, UPnP) UPnP ( allows users to connect their UPnP-enabled broadband router, printer server and other devices right to the network with zero-configuration, meaning easier setup for installing the device on the network. The automatic discovery feature enables the device to obtain an IP address, present and describe itself to other devices and PCs on the network without having to install drivers, and then configure and use those devices.

  • Page 243: User Account Management

    5.5.8 User Account Management Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users right will be showed in User Account List and can do the edit or delete by clicking the meaning text.
  • Page 244 2. User Name: Create the user name in this blank. 3. Password: Setup the user’s password. 4. Group Right: Enable the use to view the webcam’s recording files. 5. User Right: Allow the user to monitor from webcam or use FTP server. 6.

  • Page 245: Folder Management

    5.5.9 Folder Management Easy to check all the USB storage devices connected to your WE-1120, view the entire data folder inside each storage devices, and you can do the disk formatting / partition via click on the button in this page. 1.

  • Page 246: Email Alert

    5.5.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And the WE-1120 provides the email alert facility so that the Log messages can packed as an e-mail for someone who wants to receive these messages. In the following, here explain how to setup the email alert function.
  • Page 247 4. SMTP Auth: If the email alert needs to be send via SMTP authentication, please check on this item, and then enter the data into the blanks of Account and Password. 5. Account & Password: Enter the email account and password which you want to send the alert.

  • Page 248: Log & Status

    Log & Status The WE-1120 provides the log list and status of connection, user’s account. 5.6.1 Network Configuration Network Configuration shows all the connecting situation of LAN, Wireless and USB devices plugging. Each block shows configuration status, you may click on Refresh button to update the screen list.

  • Page 249: User Account List

    5.6.2 User Account List This section shows the entire user’s account right and status. Check the user name, status and opened directory/file in this screen. 5.6.3 Event Log The WE-1120 provides system log data for review. The system log detail list is shown on this screen. You can click “Refresh” button to update this screen information.

  • Page 250: Logout

    Logout To logout the router via click on Logout button in Menu, and system will return to Login homepage. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://10.64.64.64 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 251 Personal Panel Screen shows the Personal Panel for each right under the setting by administrator including Anonymous, My Document, My Webcam, and My Status. WE-1120 provides personal control panel for each user to entrance to each application screen, please click on each icon for application. The icons will be in gray color and can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 252: Anonymous

    5.8.1 Anonymous "Anonymous" display the administrator store the file in the USB hard drive, can look into folder or make duplicate file to PC, the folder follows of detailed. After selecting "Anonymous", the data which appears administrator to share folder, can download file to go to consumer personal hard drive.

  • Page 253: My Document

    5.8.2 My Document “My Document” will show all the files in the HDD under each user’s account. Also can create the folder or copy file into web HD directly. Below description is the detail folder inside. Click on “My Document” and it’ll open another web page to show all the files in your own Web HD.

  • Page 254: My Webcam

    5.8.3 My Webcam “My Webcam” can view the on time image when turn on the web camera. The image can be viewed by “My Webcam” as below example image. Notice: If the image from webcam can’t be viewed, it may cause by Internet Security setting and need to be corrected or install the Java program.

  • Page 255: My Status

    5.8.4 My Status “My Status” shows all the login information for your personal account. Click on “Main Menu” text to back to Personal Panel and select the other personal application.

  • Page 256: Site Map

    Site Map The WE-1120 provides site map clicking for each icon and do the setting easily from the home page.

  • Page 257: Chapter 6 Appendix

    The USB equipment of WE-1120 supports, row form as follows. Web Camera The table below is just for reference. We will update it irregularly. We suggest you refer to the information in our website. Vender Name Product Name SAPIDO AW-0001 0x2470 Gsmart mini 3Com Home Connect Lite...
  • Page 258 Aiptek Pocket DV5300 Aiptek Mini PenCam 2M Aiptek PocketCam 3M Aiptek PocketCam 2M Aiptek PenCam SD 2M Aiptek/Sunplus Mini Pencam 1.3 Aiptek/Sunplus Generic spca536a Aiptek/Sunplus Mini PenCam-1.3 Apex Digital/Sunplus Digitrex 2110 Arowana 300kCmos BenQ DC 1016 BenQ DC 1300 BenQ DC 3410 BenQ DC 35...
  • Page 259 Creative Webcam Mobile Creative Creative NX Pro Creative Creative NX Pro2 Creative Creative Live! Creative PC Cam 600 Creative PC Cam 350 Creative PC Cam 750 Creative NX Ultra Creative Vista Creative Vista Plus Creative Labs WebCam (model PD1001, alternate version) WebCam Plus ("WebCam Mini";...
  • Page 260 Generic Qcam 350k Generic 350 Mp Generic Generic webcam Genius VideoCamV2 Genius VideoCamV3 Genius VideoCam Web Genius Cam Look312p Genius VideoCam Express Genius VideoCam GE111 Genius VideoCam GE112 Genius VideoCam Express V2 Genius Dsc-1.3M Smart Genius NB350 GigaTechCompagny/Sunplus TDC 202A GrandTec V.Cap Hama...
  • Page 261 Labtec Webcam Pro Labtec NoteBooks Labtec Webcam Elch2 Labtec Labtec Webcam LDLC LDLC LDLC Sweety Cam LPC-UM10 LPC-UM15 Lic 100 Logitech QuickCam Orbit/Sphere Logitech QuickCam 3000 Pro Logitech QuickCam 4000 Pro Logitech QuickCam Notebook Pro Logitech Traveler Logitech Clicksmart 310 Logitech Clicksmart 420 Logitech...
  • Page 262 Logitech QuickCam Image Logitech QuickCam Cool Logitech QuickCam IM/Connect Logitech QuickCam Messenger MagicVision DRCM200 Maxell Compact Pc PM3 Meade Microcular Megapix Megapix V4 Mercury Cyberpix S550v MercuryDigital Mercury Digital Pro 3.1 Mp MercuryDigital Mercury Digital Pro 2.1 Mp Micro Innovation IC 50C Micro Innovation IC 200...
  • Page 263 OmniVision OV7110 Eval Board OmniVision OV511+/OV7120 Eval Board OmniVision OV511+/OV7620 Eval Board Opti Media Optimedia Orite SC120 Orite I-Cam Palmpix DC-85 Pcam Pcam PCcam168 PcCam168 Philips PCVC720K/40 "ToUCam XS" Philips PCVC675K "Vesta" Philips PCVC680K "Vesta Pro" Philips PCVC690K "Vesta Scan" Philips PCVC730K "ToUCam Fun"...
  • Page 264 Sangha Qcam Sangha Sangha Teddy Cam Samsung Anycam MPC-M10 Samsung MPC-C10 Samsung MPC-C30 Samsung Pleomax SamPwc3800N SanSun SanSun508 Sangha Sn-535 Sigma-Apo PetCam Smile International smile Sonix Sonix generic Speed NVC350K Sweex 350 Mp Terratec TeraCam2 move1.3 ToptroIndus Toptro Trust Wb 1200P Trust WB-1400T Trust...

  • Page 265: Usb Storage Device

    X-eye X-eye X10 VA11A USB Capture Zebronics ZEB 100W (V1) Zebronics ZEB 100W (V2) Update: Aug.19.2008 USB Storage Device WE-1120 support FAT16 and FAT32 file system. USB Flash Drive Brand Product Model Note Panram MEMORY BLOCK USB2.0 A-DATA RB2 Lover Flash Drive USB2.0 A-DATA My Flash PD1 (512MB)

  • Page 266: Web Browser

    Web Browser 1. Internet Explorer 5 above editions 2. Safari 2.03 above editions SADOGO Utility Micosoft: Windows XP（For English and Traditional Chinese）...

This manual is also suitable for:

Ultimate we-1120

Table of Contents
