Quick Installation Guide (V2.1)
Quick Installation Guide (V2.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB-1232V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapido RB-1232V2

Summary of Contents for Sapido RB-1232V2

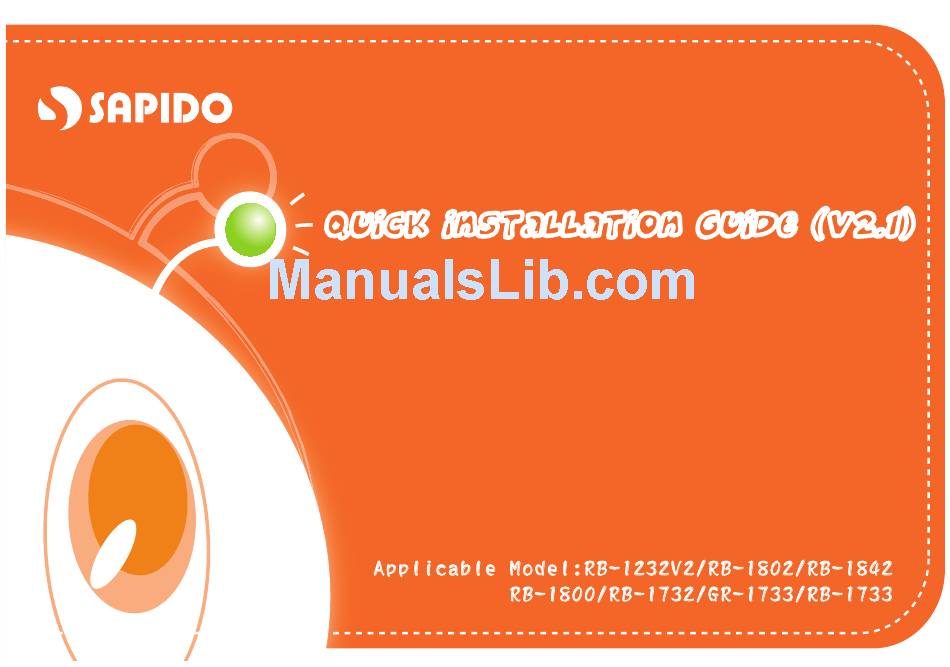

  • Page 1 Quick Installation Guide (V2.1) Quick Installation Guide (V2.1)

  • Page 2: Important Information

    Important Information D e f a u l t I P : 1 9 2 . 1 6 8 . 1 . 1 ( R o u t e r M o d e ) 1 9 2 . 1 6 8 . 1 . 2 5 4 ( A P M o d e ) 1 9 2 .

  • Page 3: Table Of Contents

    Table of Contents Basics Getting to Know your Router Installing the Router Configuration Logging into your Router Connecting this Router to a Cable/DSL Modem Connecting this Router to a 3G/4G Modem 10-11 Connecting this Router to a Smartphone 12-13 Connecting this Router to a WiMAX Modem 14-15 Connecting to an Existing WiFi Router(Public WiFi) 16-17...

  • Page 4: Getting To Know Your Router

    Getting to Know Your Router RB-1800 Package Contents Power Indicator When the light is green, 1 Router the device is receiving power. 1 Power Adapter, 1 Quick Installation Guide WAN Indicator LAN Indicator WPS/Wireless Indicator WPS/ When this light is green, wireless is active.When this light starts to Power Connector flash and turns to reddish orange.

  • Page 5: Package Contents

    RB-1802 Package Contents 1 Router. 1 Power Adapter, Power Indicator 1 Quick Installation Guide When the light is green, the device is receiving power. WAN Indicator LAN Indicator WAN Port This connects to your DSL/ Cable Modem. WPS/Wireless Indicator /WPS When this light is green, wireless is active.When this light starts to flash and turns to reddish orange.
  • Page 6 RB-1842 WAN Port This connects to your DSL/ Package Contents Cable Modem. WPS Button 1 Router. See the WPS one-button setup 1 Power Adapter, section for additional information. 1 Quick Installation Guide Power Connector LAN Port Reset Button Use these ports to Back to factory setting.
  • Page 7 RB-1232 V2 Power Indicator Package Contents When the light is green, the device is receiving power. 1 Router Status Indicator 1 Power Adapter, 1 Base Holder, When the green light is on, system is ready to work. When the light is blinking means reset or 1 Antenna,(detachable) firmware update is in progress.
  • Page 8 Power Connector RB-1732/GR-1733/RB-1733 Reset Button Package Contents Back to factory setting. USB Port 1 Router Use this port to connect a 1 Power Adapter, 3G/4G/WiMAX modem or 2 Antennas,(some are detachable) smartphone. 1 Quick Installation Guide LAN Port Use these ports to connect to your computer.

  • Page 9: Installing The Router

    Installing the Router DSL/Cable Modem : Use an Ethernet cable to connect the modem to the WAN port of the SAPIDO router. Use Ethernet cable to connect PC and LAN port of the SAPIDO router. Ethernet Cable Wired xDSL/Fiber/ Cable Modem...
  • Page 10 Connecting to an Existing WiFi Network(Public WiFi) : 1. No physical connection is required to receive the signal. 2. Use Ethernet cable to connect PC and LAN port of the SAPIDO router. Ethernet Cable WiFi Hotspot Ethernet Cable Wireless Modem...

  • Page 11: Configuration

    Configuration Logging Into Your Router : Enter the router IP address (defaults below) into your browser and hit “Enter”. Router Mode : 192.168.1.1 Access Point & WiFi Access Point Mode : 192.168.1.254 Enter Login Information (default below) and click “Login”. Username : admin / Password : admin Connecting this Router to a Cable/DSL Modem It can be configured without Internet.
  • Page 12 Wired xDSL/Fiber/Cable modem Choose “Ethernet Port”. Dynamic IP, which is the default, is the most common setting, and will work with most cable modems. Try this first! Unfortunately, WAN Access Type varies by company, so if this does not work please contact your Internet service provider and ask them what “WAN Access Type”...

  • Page 13: Connecting This Router To A 3G/4G Modem

    Connecting this Router to a 3G/4G modem : (RB-1800/RB-1802 are not supported) ※The quality of wireless signal depends on strength of 3G/4G signal. ※Please find update support list at SAPIDO offical website. Fill in default Username and Password to Open IE browser, type IP 192.168.1.1(P1), or open login(P3).
  • Page 14 3G/4G modem Choose “3.5G USB dongle”. "Auto Switch" is recommended to avoid any disconnection when 3G/ 3.5G signal is unavailable. input SIM PIN/ APN/ User Name/ Password/ Phone Number required by your ISP. If you are not sure about local ISP 3.5G system or APN setting information, please contact your ISP.

  • Page 15: Connecting This Router To A Smartphone

    (Do not need to enter into GUI setting page for set-up.) Enable the “Internet Tethering”, and it’s ready to share Internet access. ※If you’re using an iPhone, please change the “Auto-lock” to never, and connect it to SAPIDO router after enable the Internet Tethering feature.
  • Page 16 Smartphone Choose “3.5G USB dongle”. According to your smartphone system, select your service as Nokia, Blackberry, etc. "Auto Switch" is recommended to avoid any disconnection when 3G/ 3.5G signal is unavailable. This is the name of your wireless network. Change it to something that will be easy for you to identify (e.g.

  • Page 17: Connecting This Router To A Wimax Modem

    (RB-1800/RB-1802/RB-1842 are not supported) ※We suggest using WiMAX modem with a USB extended cable for the best performance. ※Please find update support list at SAPIDO offical website. Fill in default Username and Password Open IE browser, type IP 192.168.1.1(P1), or open to login(P3).
  • Page 18 WiMAX Choose your time zone. Enter a new router password to replace the default one to log into the router (this is different from your wireless password). Choose “WiMAX”. Select Operator and enter account Info. This is the name of your wireless network. Change it to something that will be easy for you to identify (e.g.

  • Page 19: Connecting To An Existing Wifi Router(Public Wifi)

    Connecting to an Existing WiFi Router (Public WiFi) It can be configured without Internet. Fill in default Username and Password Open IE browser, type IP 192.168.1.1(P1), or open to login(P3). “My Network Place”, and click SAPIDO_GR-1733 (P2). 192.168.1.1 admin admin (P1) (P3) SAPIDO_GR-1733...

  • Page 20: One Button Setup

    Public WiFi/Wireless modem Choose “Wireless”. Select the network you would like to connect. Select the encryption type of upper network you connect and fill in its encryption key. If the wireless is from Public WiFi, please select Dynamic IP. If the wireless is from wifi modem, please select the WAN type and enter account information provided by your ISP.

  • Page 21: Connecting To An Existing Wired Ip Router

    Connecting this Router to a wired IP router : If ADSL/Fiber/Cable is connected to a wired router, connect the wired router to your SAPIDO router. Then you can turn wired Internet to wireless and share Internet to multiple devices such as in hotel.
  • Page 22 Configuration steps Step 1 Step 2 Choose your time zone. SAPIDO_GR-1733 Click “Next” to the following step. Click “Next” to the following step. Step 3 This is the name of your wireless network. Change it to something that will be easy for you to identify (e.g.

  • Page 23: Connecting To Another Wifi Network To Extend The Signal

    1. Press the WPS button on the 11N product that you would like to connect till the WPS LED starts to flash. 2. Press the WPS button on the SAPIDO router till the WIRELESS/WPS LED turns to reddish orange. Then the WiFi AP setup is done.

  • Page 24: Configuration Steps

    Configuration steps Select the network you would like to connect. Select the encryption type of upper network you connect and fill in its Click "Next" to the following step. encryption key. This is the name of your wireless network. Change it to something that will be easy for you to identify (e.g.

  • Page 25: Samba

    System will create a file folder which is called “sda1”, and then the files in this folder can be shared through the samba function. ※Please visit SAPIDO website for more detailed setting steps. Optional Firmware Upgrade : Please visit SAPIDO website www.sapidotech.com...

  • Page 26: Resetting Your Router Back To Factory Settings

    Note : This will erase all of your configuration settings. To restore the router to factory default settings. Please do the following. GR-1733/RB-1733/RB-1732/RB-1232V2 Power on SAPIDO router, and wait till the Wireless/WPS light is lit. /WPS Press the reset button on the back of the router with a pencil or paper clip, and hold it down for 10 seconds, until the status light blinks 3-4 time, then release.

  • Page 27: Frequently Asked Questions

    1. Why can’t I login SAPIDO router? (1) Please make sure your connection is right. Your computer should connect to the LAN port of SAPIDO router. (2) Confirm the browser you used is Microsoft Internet Explorer, and type the IP 192.168.1.1. Enter the default username and password : admin.
  • Page 28 S A P I D O T e c h n o l o g y I n c . ADD 383, Sec. 2, Minsheng Rd.,West Central District, Tainan City700, Taiwan E - m a i l service.tw@sapido.com.tw...

This manual is also suitable for:

Rb-1800Rb-1802Rb-1732Rb-1842Gr-1733Rb-1733
