Summary of Contents for Sapido HF-3205

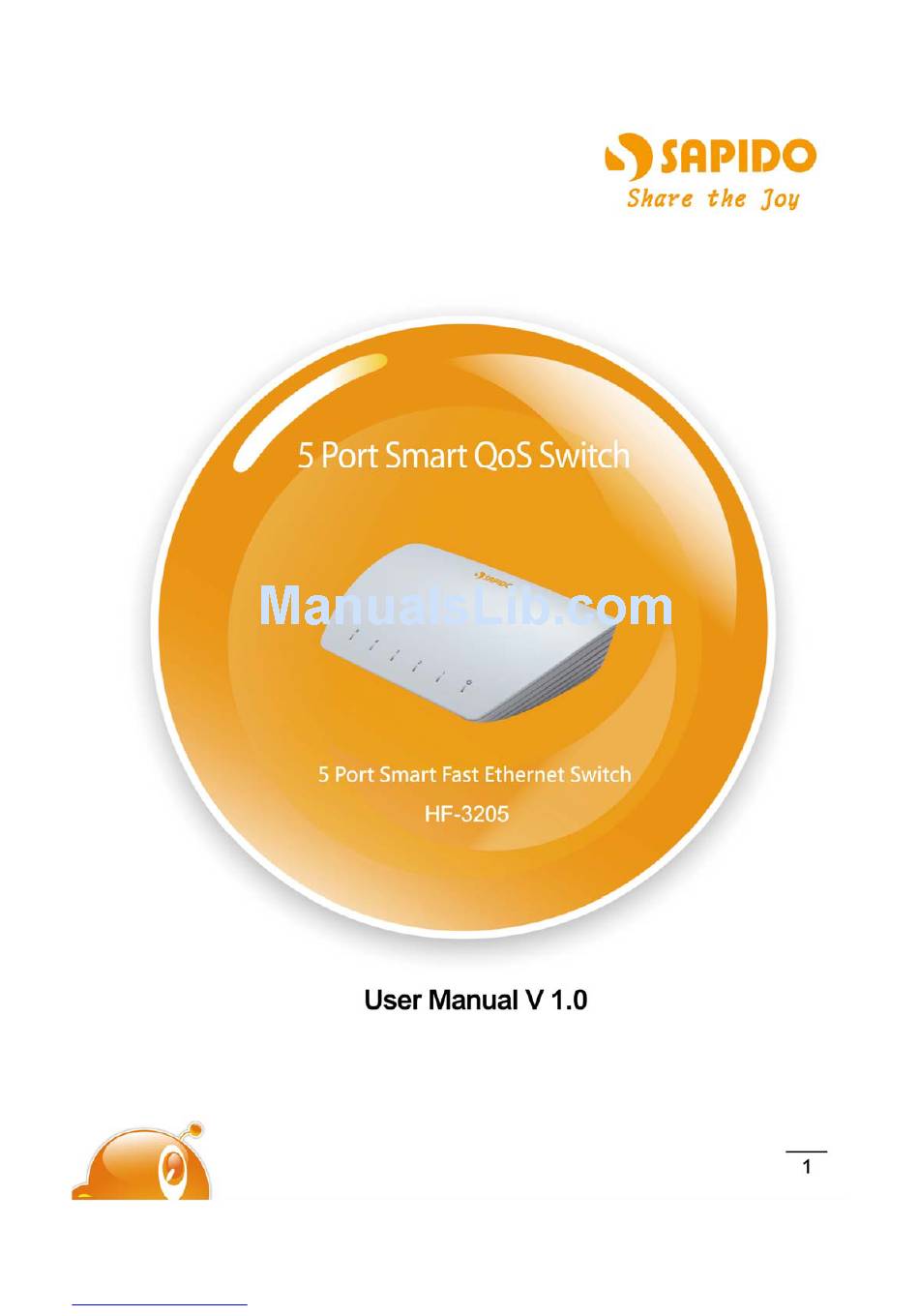

  • Page 1 User Manual v1.0.0...
  • Page 2: Port

    IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 3 "Council Directive on the Approximation of the Laws of the Member Sates relating to Electromagnetic Compatibility" (89/336/EEC; 92/31/EEC; 93/68/EEC). The Declaration of Conformity can be found at the Sapido regional website. www.sapidotech.de CE Information of Disposal The electric and electronic equipment or unit which is labeled with crossed-out wheeled bin may not be disposed of with household waste.
  • Page 4: Table Of Contents

    1.3 The Front Panel 1.3.1 LEDs status 1.4 The Rear Panel 1.4.1 Power Connector 1.4.2 Network Ports 1.4.3 Cabling 1.4.4 QoS Switch 2 USEFUL TIPS 2.1 Prior to Installation 2.2 Half- and Full-Duplex 2.3 Auto-Negotiation 3 PRODUCT SPECIFICATIONS http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 5: Getting To Know The Switch

    Supports IEEE 802.3x Flow-Control for Full-Duplex operation  Back-Pressure function supports for Half-Duplex operation  2K-entry lookup MAC address table  Loop detection:If a loop is detected, the switch will drive the external LEDs and buzzer alarm  Supports QoS(Quality of Service)function http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 6: The Front Panel

    Description Power is being applied to this Green product Power x1 Power indication Blinking Loop detected Connected at 10/100Mbps Ethernet port Port x 5 activity and loop Green Blinking 10/100Mbps Tx/Rx activity status Blinking Loop detected http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 7: The Rear Panel

    RJ-45 Note: Cat. 5 TP cable recommended whenever installing new cabling. 1.4.4 QoS Switch The Switch button can setup two mode of QoS function. You must restart the power after switch the button  Normal model http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 8  Port 2 -> More High Priority ( Yellow )  Port 3 -> More High Priority ( Yellow )  Port 4 -> High Priority ( Green )  Port 5 -> High Priority ( Green ) http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 9: Useful Tips

    (usually at Power “On” or Reset). Evaluating Auto-Negotiation Capability: if attached device is: The switch will automatically set its TP ports to operate at: 100Mbps 100Mbps (100BASE-TX, Half-Duplex) no Auto-Negotiation 100Mbps 200Mbps (100BASE-TX, Full-Duplex) with Auto-Negotiation http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 10 10Mbps 10Mbps (10BASE-T, Half-Duplex) no Auto-Negotiation 10Mbps 20Mbps (10BASE-T, Full-Duplex) with Auto-Negotiation Note: If the attached device is set to a fixed mode (ex: Forced Full-Duplex) it will not operate as an Auto-Negotiation device. http://www.sapido.com.tw/ User Manual v1.0.0...
  • Page 11: Product Specifications

    Operating Temp. 0 to 40C (32 to 104 F) Storage Temp. -20 to 70C (-4 to 158 F) Operation Requirement Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Power Supply Power Adapter DC5V/0.4A Dimensions 118(L) x 70(W) x 25(H) mm http://www.sapido.com.tw/ User Manual v1.0.0...
