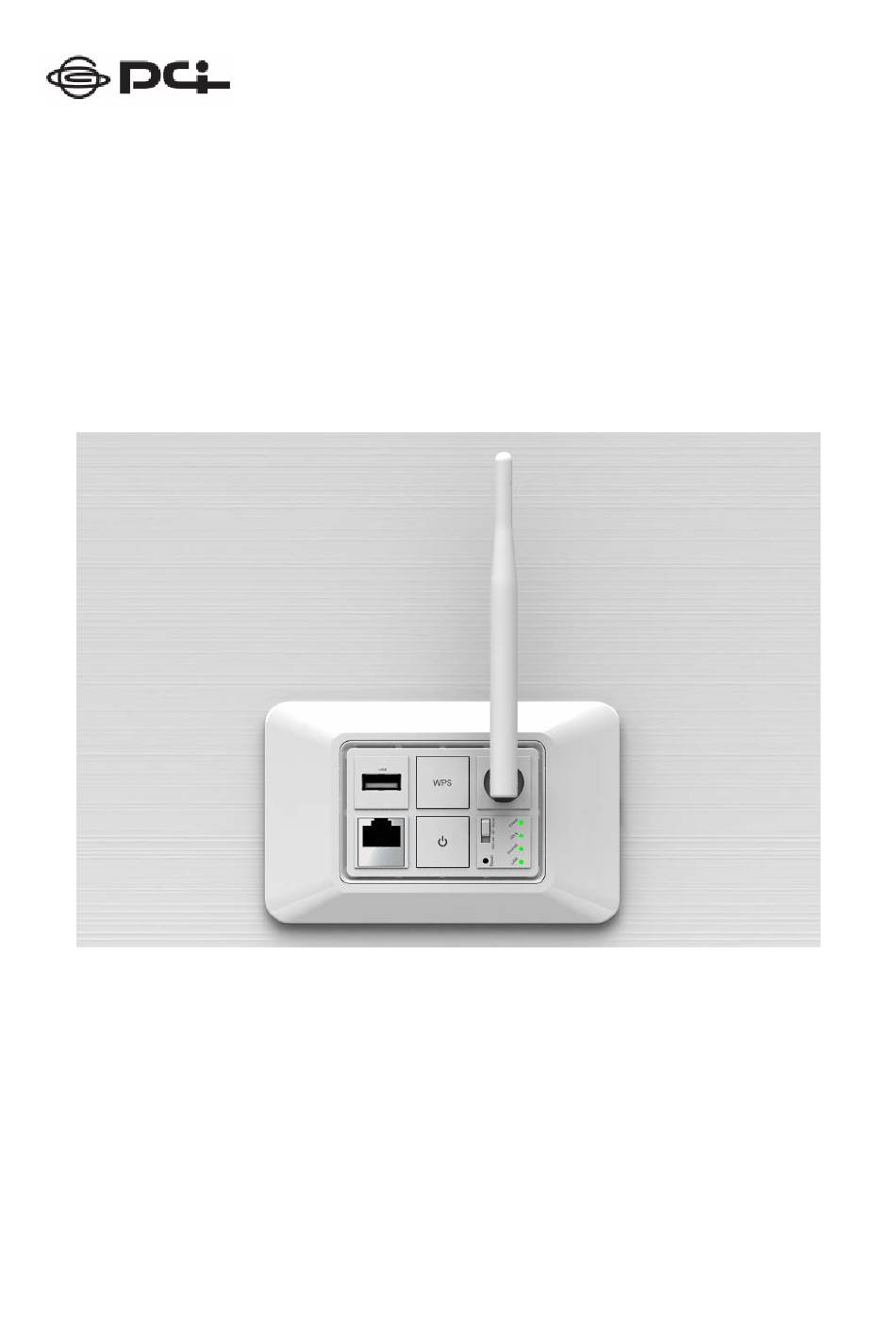

  • Page 1 PCI022_MZK-KR150NUS User Manual http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 2 Notice Please notice and cooperate while using this product based on the statement below. a. FCC Section 15.105 This equipment has been tested and found to comply with the limits for a lass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    WAN Access Type – Static IP ................29 4.2.7 WAN Access Type –Dynamic IP ..............32 4.2.8 WAN Access Type –PPPoE................34 4.2.9 WAN Access Type – PPTP ................36 4.2.10 LAN Interface Setup ..................39 4.2.11 Dynamic DNS Setting..................41 Wireless Setup ......................42 4.3.1 Wireless Basic Settings...................43 http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 4 Chapter 7 DDNS Service Application..................90 Chapter 8 Q & A ..........................97 Installation .........................97 LED ..........................97 IP Address........................98 OS Setting........................98 PCI022_MZK-KR150NUS Broadband Router Setup ..........99 Wireless LAN ......................101 Support ........................103 Others........................104 USB Device ......................104 Chapter 9 Appendices......................105 http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 5 Operating Systems ....................105 Browsers........................105 Communications Regulation Information ............105 http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 6: Fcc Caution

    This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 7: Safe Seating Gestures

    Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC; 93/68/EEC) Notice Changing RF parameter is not allowed. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 8: Chapter 1 Introduction

    802.11n wireless connectivity with a maximum wireless signal rate of up to 150Mbps. Use it in home or company. Moreover, with connect to a 3.5G (EVDO/HSPA) or WiMAX USB modem, this PCI022_MZK-KR150NUS Broadband Router allows user to share the wireless network outdoor or be an alternative or backup to fixed broadband. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 9: Features

    WPS button provides not only an easy and secured wireless network but also a WDS repeater in one push Multiple APs Supported : adds or limits the properties for classed SSID, increasing the flexibility and efficiency of the network. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 10: Specifications

    10seconds for reset WPS button。 Operating Temp. 0 to 40℃ Storage Temp. -20 to 70℃ Operation Requirement Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing Power Supply AC100~240V / 50~60Hz universal input http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 11 72.6(L) x 48.1(W) x 49(D) mm (main body only) Dimensions Device Weight Notice: 1. USB device with power more than 500mA is not supported http://www.sapido.com.tw USER MANUAL V1.0...

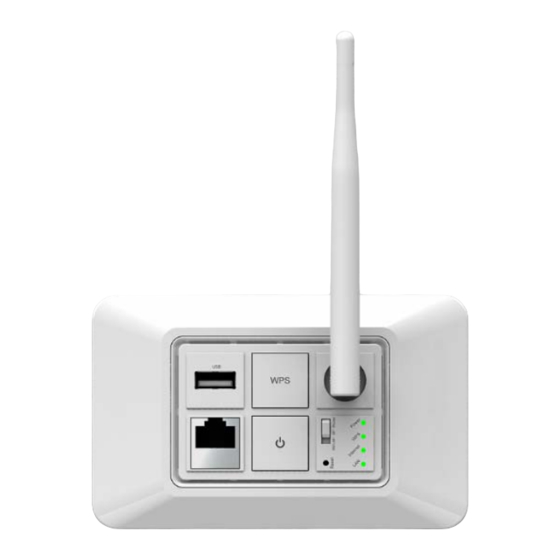

  • Page 12: Product Appearance

    Function Color Status Description System is ready to work Status x 1 System status Green Blinking Rest to default in progress 120ms Wireless activity Wireless is active Wireless / WPS Green & Blinking Wireless Tx/Rx activity http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 13: System Requirements

    One PC or Notebook with web browser software installed (E.g.: Internet Explorer 5.0, Netscape Navigator 7.x, Apple Safari 2.03 or higher version). At lease one 802.11b/g/n wireless adapter for wireless mobile clients. Recommended OS: Win2000 or WinXP / Linux. Get Your IP Automatically & Manually http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 14 Internet network from home to Internet. If you don’t know how to enter the settings, please follow the steps as below. Step 1. Go to Start>Settings> Network Connections and then select Local Area Connection. Step 2. Click on Properties http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 15 Step 4-1. For getting IP automatically if you are one of the users under PCI022_MZK-KR150NUS Broadband Router, please skip Use the following IP address and then select Obtain an IP address automatically and Obtain DNS server address automatically and then click on OK button. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 16 Gateway: 192.168.1.1 (this is the IP address of PCI022_MZK-KR150NUS Broadband Router in Router Mode) DNS: 192.168.1.1 (use PCI022_MZK-KR150NUS Broadband Router’s IP address or on your own choice) Note: IP address and Default gateway cannot be the same. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 17: Network Testing

    If the website appears, that means your Internet is working under normal situation. 1.5.2.1 Testing with DOS (Windows XP Platform) Step 1. Go to start > Run. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 18 192.168.1.100, for example, and Default Gateway as 192.168.1.1. Step 4. Ping a legal WAN Address such as 192.168.1.1. If Internet works, it will show Reply from 192.168.1.1: bytes = 32 time = 3ms TTL =64, for example. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 19 If it can’t work, it will show Request timed out. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 20: Chapter 2 Hardware Installation

    When PCI022_MZK-KR150NUS Broadband Router switches to Router Mode, there will be each WAN and LAN port existing, the administrator can do the Quick Setup including WAN Setup, LAN Setup, Wireless Setup, Time Server Setup, Password Setup, Firewall Setup. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 21: Chapter 3 One Button Setup

    The default UPnP of PCI022_MZK-KR150NUS Broadband Router is ON. When users connect PCI022_MZK-KR150NUS Broadband Router to their PC, and icon will show up in the right-down corner. Step 1. Click the Internet Gateway Device to open the login page. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 22 Step 2. Click One Button Setup on the left of the main menu under router mode. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 23 Time Zone Select: Select your time zone from the Time Zone drop-down list. Change Password: For changing password, please fill the password information into the blank. Device Name: Name your device here. default “PCI022_MZK-KR150NUS_Broadband_Router”. WAN Interface Setup: Select the WAN Interface from the drop-down list. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 24 WAN Type Setup: Please choose the access type. Wireless Setup: Define the SSID, and Encryption type. Finished: Click finished button to complete the setting. Note: One Button Setup is not completed unless users finish all settings and click Finished button. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 25: Chapter 4 Router Setup

    If you don’t know how to do it, please refer to “1.5 Get your IP Automatically & Manually”. Homepage The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 26: Ip Configuration

    If you are using HSDPA/UMTS (3.5G connection) as the WAN Type, please select 3.5G USB Dongle. At this moment, Backup of Connection is not available. When 3.5G signal cannot be reached, the system starts to search downward for 3/2.75/2.5G signals until none existed. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 27: Wan Interface- Ethernet Port

    4.2.3 WAN Interface– Ethernet Port If you are using an Ethernet cable to connect the Internet, please select Ethernet port. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 28: Wan Interface- Wimax

    4.2.4 WAN Interface– WiMAX http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 29: Wan Interface- Wireless

    Internet via connected WiMAX adapter. 4.2.5 WAN Interface– Wireless If you are connecting the internet via wireless, please select Wireless and its associated settings will show up underneath at the same time. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 30: Wan Access Type - Static Ip

    You can see a list of available Wireless networks. Select you preferred one to connect and the Encryption type form the drop-down list. 4.2.6 WAN Access Type – Static IP If you applied for a Static IP connection type from ISP, please follow the steps to set up your WAN connection. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 31 IP Address Input your IP Address supplied by ISP. If you don’t know, please check with your ISP. Subnet Mask Input Subnet Mask, normally it is 255.255.255.0. Default Gateway http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 32 10. Enable Web Server Access on WAN This option is to enable Web Server Access function on WAN. 11. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 33: Wan Access Type -Dynamic Ip

    The host name is optional; but if your ISP requires you to input a specific host name, please put it in, for example, PCI022_MZK-KR150NUS Broadband Router applied from ISP. Generally, Cable Modem will provide the hostname information. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 34 This option is to enable Web Server Access function on WAN. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 35: Wan Access Type -Pppoe

    4.2.8 WAN Access Type –PPPoE If you applied for a PPPoE connection type from ISP, please follow the steps to set up your WAN connection. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 36 (OS). Advanced users can set the MTU manually for increasing the internet performance. The largest number allowed by Ethernet at the network layer is 1492 byte If ISP provides you DNS information, please select Attain DNS automatically, otherwise http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 37: Wan Access Type - Pptp

    Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. 4.2.9 WAN Access Type – PPTP If you have applied for a PPTP connection type from ISP, please follow the steps to set up your WAN connection.\ http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 38 USER MANUAL V1.0...
  • Page 39 The default interval between the two connection detection is 3 minutes, and the range is from 1 to 60 minutes. Once Internet connection is disconnected, the system automatically connects Internet via 3.5G adapter. If 3.5G signal is not available, it starts to search downward for 3/2.75/2.5G signals until none existed. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 40: 4.2.10 Lan Interface Setup

    Use this page to set up the local IP address and subnet mask for your router. Please select LAN Interface Setup under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 41 Define the DHCP client range and then the DHCP server will assign an IP to the requesting computer from this range. The Show Client will display every assigned IP address, MAC address, and expired time. The default range is 192.168.1.100 - 192.168.1.200. 802.1d Spanning Tree http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 42: 4.2.11 Dynamic Dns Setting

    Config menu, and follow the instructions below to enter the DDNS setting page to configure the settings you want. Enable / Disable DDNS Select enable to use DDNS function. Each time your IP address to WAN is changed, and the http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 43: Wireless Setup

    Click on Apply button to continue. Click on Cancel button to clear the setting on this page. Wireless Setup PCI022_MZK-KR150NUS Broadband Router enables fastest 150 Mbps IEEE802.11n wireless transmissions and keeps compatibility with existing IEEE 802.11n devices. PCI022_MZK-KR150NUS Broadband Router complies with IEEE 802.11b/g standard. Please select Wireless under the main menu. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 44: Wireless Basic Settings

    4.3.1 Wireless Basic Settings Follow the instructions to configure the Wireless settings. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 45 There are 6 options, 2.4 GHz (B/G/N/B+G/G+N/B+G+N) from the drop down list. Mode Select AP, WDS, or AP+WDS to allow or disallow the wireless operation. Multiple APs Click Multiple APs to set up 4 different SSIDs to deploy a shared WLAN. Users can add http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 46 (7) Apply Changes: Please click Apply Changes to initiate or click Reset to cancel. Network Type： Please select “Infrastructure” or “Ad hoc.” The default is “Infrastructure.” The selection is disabled when wireless mode is selected to AP. SSID： Please input your wireless network name. Default “PCI022_MZK-KR150NUS_Broadband_Router”. Channel Width http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 47 How to Enable URM (Universal Repeater Mode) User could enable URM in wireless basic setting page as shown in following figures. Step 1. Get back to menu “Network Config” and write down the SSID, channel and security. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 48 AP (the upper level device) in the field of SSID of Extended Interface. 15. Apply Changes & Reset Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the input data. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 49: Wireless Advanced Settings

    After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. Fill the range from 0 to 2347 into this blank. Beacon Interval http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 50: Wireless Security Setup

    Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the input data. 4.3.3 Wireless Security Setup 4 encryption types can be selected here, please follow the instructions below for each. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 51 Select the type of encryption you want to use (64 or 128 bit) and configure one to four WEP Keys. The “1280bit” method is more secure than the “64-bit”. Use 802.1x Authentication Enable 802.1x Authentication so that a wireless node must be authenticated before it http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 52 Enterprise (RADIUS): Please input the port, IP address, and password of authentication RADIUS Server. Personal (Pre-Shared Key): Pre-Shared Key type is coding in ASCII, and the length is between 8 to 63 characters. If the coding is in Hex, the key length is 64 characters. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 53: Wireless Access Control

    “Deny Listed” means the listed MAC Address are not allowed to linkto your wireless network. “Disable” for function disuse. MAC Address Please input the allowed or denied MAC address, for example, 001122334455. Comment You may input the comments for the set MAC Address. Apply Changes & Reset http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 54: Wds Settings

    APs communicate both with each other and with wireless stations (at the expense of half the throughput). Wireless Connection AP Router AP Router Internet Wired Connection Please follow the instructions to setup WDS connections. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 55 WDS with PCI022_MZK-KR150NUS Broadband Router. Step 2. Get back to the menu “Wireless Basic Settings” of PCI022_MZK-KR150NUS Broadband Router. Select AP+WDS mode, and then select the Channel Number. Click Apply Changes to save the setting data. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 56 Click Apply Changes to save the setting data. Step 4. When the time counts down to 0, you will see the MAC address of the paired device displaying on Current WDS AP List. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 57 Doing the same way to setup the MAC address in the paired device. Launch the UT to the menu “WDS settings” of the paired device, and input router’s MAC address. Click Apply Changes to save the setting data. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 58 Supports to check out the IP address which is assigned by the paired device. Step 8. You can input http://192.168.9.9 in IE browser to enter the GUI page of the paired device and make sure the connection. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 59: Wps

    WPS can be enabled by 2 methods: PBC (Push button configuration) Method, in which the user simply has to push a button, either an actual or a virtual one, on both WPS devices to connect. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 60 Please follow instructions below to enable the WPS function. Start PBC: (1.) Press the WPS button from PCI022_MZK-KR150NUS Broadband Router or click Start PBC from menu “Wi-Fi Protected Setup”, and waiting for the WPS wireless card setting. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 61 (2.) Open the “Wireless Utility” of your wireless card, and click its “PBC” button, to start auto pairing. (3.) While scanning is successful, the information of the wireless card appears in the windows below. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 62 Start PIN: (1.) Open the “Wireless Utility” of your wireless card. Follow its PIN instruction to get a new PIN number. Write it down. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 63 Router, input the PIN number from the wireless card then click Start PIN. Enter the PIN Code you got from the wireless card. (3.) Back to “Wireless Utility” and press the “Start PIN” button to complete the auto-paring process. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 64: Nat

    IP address to the server. Then, add the IP address and network protocol type, port number, and name of the service in the following list. Based on the list, the gateway will forward service request from outside users to the corresponding local server. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 65 Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Current Port Forwarding Table It will display all port forwarding regulation you made. Delete Selected & Delete All http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 66: Visual Dmz

    Virtual DMZ allows you to expose one computer to Internet, so that all inbound packets will be redirected to the computer you set. It is useful while you run some applications that use uncertain incoming ports. Please use it carefully. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 67: Firewall

    The Firewall function helps to protect your local network against attacks from outside. It also provides a way of restricting users on the local network from accessing the Internet. Additionally, it can filter out specific packets to trigger the router to place an outgoing connection. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 68: Port Filtering

    This function allows users to filter and manage specific ports; to limit the use of certain applications to transmit through a specific port. Port filtering helps users to improve the security of your network. Enable Port Filtering Check Enable Port Filtering to start the service. Port Range http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 69: Ip Filtering

    You can click Reset to cancel. Port Filtering The following figure shows a user limits some applications to use the 80 port. *All clients inside the local area network can’t open the 80 port through this router. 4.5.2 IP Filtering http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 70 Current Filter Table It will display all IP addresses that are filtering now. Delete Selected & Delete All Click Delete Selected will delete the selected item. Click Delete All will delete all items in this http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 71: Mac Filtering

    You can add comments for this MAC Filtering rule. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Current Filter Table http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 72: Url Filtering

    ACL rules. This feature can be independently enabled / disabled, but works only if firewall is enabled. Enable URL Filtering Check enable or disable to apply URL filter function. URL Address “ .com. Enter the URL address into this blank to apply filter blocking, example: www.yahoo Apply Changes & Reset http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 73: System Management

    Note: URL Filtering cannot work when the Visual Server is enabled. Please disable Visual Server before activate filter. System Management PCI022_MZK-KR150NUS Broadband Router provides system management including password changing, upgrade firmware, time setting, user’s account setting and other detail settings. Following is detail explanation for each. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 74: Change Password

    There is certain risk while upgrading firmware. Upgrading firmware is not recommended unless significant faulty found. upgrade firmware PCI022_MZK-KR150NUS Broadband Router on this page. Make sure the firmware you want to use is on the local hard drive of the computer. Click Upgrade Firmware to proceed. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 75 10 seconds with a stick. The router will reboot and all settings will be restored to factory default settings. If the problem still exists, you can visit our web site to see if there is any firmware for download to solve the problem. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 76: Profiles Save

    PCI022_MZK-KR150NUS Broadband Router to default setting by this function. Save Settings To File Click on Save button for saving the configuration setting into assigned location. A pop window will show up and ask to save config.dat file. please select the location (Figure http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 77 2), for example: the desktop (Figure 3). Please select the location, for example: the desktop. Load Settings From File http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 78 Click on “Browse…” button for searching the saving configuration from hard drive, and then click on Upload button to load all the settings into the router. Select the config.dat file. Click Upload to retrieve. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 79 When you see the screen below, the updating is completed. Please click OK to return to the main menu. Reset Setting to Default After you have tried other methods for troubleshooting your network, you may choose to restore PCI022_MZK-KR150NUS Broadband Router to the factory default settings. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 80: Time Zone Setting

    Protocol) server. If a NTP server is set, you will only need to set the time zone. If you manually set the time, you may also set Daylight Saving dates and the system time will automatically adjust on those dates. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 81 Or you may click on Refresh to update the system time on the screen. NTP Server Type & Default NTP Server Choose “General Time Server” and select the NTP Server from the drop-down list or choose “Customized Time Server” and enter the server by manual. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 82: Upnp Setting

    Enabling UPNP, click My Network Places, and user can open the web GUI by just clicking on the Internet Gateway Device icon. MZK-KR150NUS 4.6.6 Language Setting PCI022_MZK-KR150NUS Broadband Router provides a user friendly interface in 12 languages. You can create your own language interface by following steps. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 83 Step 2. When you see the screen with message in your selected language, the Language setup is completed. Note: In order to prevent the incomplete translation, you can press “CTRL+F5” to force reload of the page. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 84: Log & Status

    Log & Status PCI022_MZK-KR150NUS Broadband Router provides the log list and connection status for user to check. 4.7.1 Network Config Network Configuration shows the firmware version and the connection status of LAN, WAN and Wireless. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 85: Event Log

    4.7.2 Event Log PCI022_MZK-KR150NUS Broadband Router provides system logs for review. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 86 Click on Apply Changes to save the setting data. Click on Refresh to renew the system time, or on Clear to clear all the record. After clicking Apply Changes to record the event log, it will be shown as the example http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 87: Logout

    Logout Click Logout on the bottom menu to exit and go back to GUI login home page. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 88: Chapter 5 Ap Mode

    Enter the User name and Password in to the blank and then Click Login. The default values for User Name and Password are admin (all in lowercase letters). Select LAN under the IP Config menu http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 89 MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on Apply Change to save the setting date, or you may click on Reset to clear all the input data. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 90: Chapter 6 Wifi Ap Mode

    Chapter 6 WiFi AP mode Make sure to shift the mode into WiFi AP Mode. http://192.168.1.254 The default gateway is and for User Name and Password are admin (all in lowercase letters). Click Login to enter. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 91: Chapter 7 Ddns Service Application

    MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on Apply Change to save the setting date, or you may click on Reset to clear all the input data. Chapter 7 DDNS Service Application http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 92 If you don’t have a DDNS account, please follow the steps to complete your DDNS with Dynamic IP settings. Step 1. First access the Internet and fill http://www.dyndns.com/ into the address field of your web browser, then click Create Account. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 93 Step 2. Fill in the form as required, and then click on Create Account button. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 94 When you got this account created message, close it, and check your mailbox. You would get a mail from DynDNS website. Step 4. Click on the indicated address within your mail to confirm. Step 5. Click on login. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 95 Step 6. Click Add New Hostname. Step 7. Put in your favorite hostname and service type, and then click Create Host after finished. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 96 Step 8. Your hostname has been created when you see the following page. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 97 “Activate Service” Step 9. Click http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 98: Chapter 8 Q & A

    Why does PCI022_MZK-KR150NUS Broadband Router shut down unexpectedly? A: Re-plug your power adapter. Then, check the STATUS indicator; if it is off, the internal flash memory is damaged. For more help, please contact with your provider. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 99: Ip Address

    Power down the device in question and ping the assigned IP address of the device. Ensure no other device responds to that address. 1. Check that the cables and connectors or use another LAN cable. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 100: Pci022_Mzk-Kr150Nus Broadband Router Setup

    IP addresses from 2 to 254 throughout your local network via PCI022_MZK-KR150NUS Broadband Router. Without DHCP, you would have to configure each computer separately. It’s very troublesome. Please Open Internet browser > Input 192.168.1.1 in the website blank field > Select DHCP Server http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 101 A: PCI022_MZK-KR150NUS Broadband Router will start to run after the setting finished applying, but the setting isn’t written into memory. Here we suggest if you want to make sure the setting would be written into memory, please reboot the device via Reboot under System Management directory. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 102: Wireless Lan

    Finally, you might want to keep the system you're trying to configure in the same room as the router, at least during the initial configuration, in order to minimize potential interference from concrete walls or steel beams. http://www.sapido.com.tw USER MANUAL V1.0...
  • Page 103 RF Shielding: Your environment may tend to block transmission between the wireless stations. This will mean high access speed is only possible when close to the Access Point. Q: Some applications do not run properly when using the Wireless Router. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 104: Support

    Support Q: What is the maximum number of IP addresses that the XDSL Router will support? A: The Router will support to 253 IP addresses with NAT mode. 5. Q: Is the Router cross-platform compatible? http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 105: Others

    In this situation, we suggest to disable DHCP server in router and configure your PC manually. USB Device Q: How many USB devices can be connected to the Product? A: PCI022_MZK-KR150NUS Broadband Router supports maximum of 1 USB ports. http://www.sapido.com.tw USER MANUAL V1.0...

  • Page 106: Chapter 9 Appendices

    FireFox ver. 2.0.0.11 and the following related versions.3. Safari ver. 3.04 and the following related versions. Communications Regulation Information Should any consumers need to learn more information, services and supports, please contact the supplier of your product directly. http://www.sapido.com.tw USER MANUAL V1.0...
