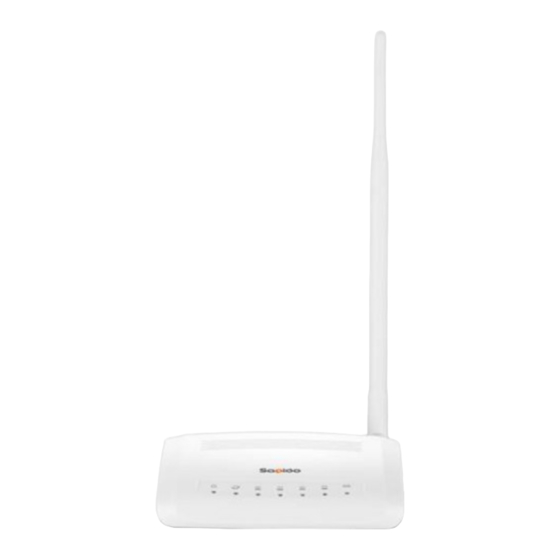

- Page 1 Wireless Router 150M Value Cloud and Super Antenna Wireless Router RB-1802G3 Networking User Manual v1.0.0...
-
Page 2: Fcc Caution
-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CE Statement of Conformity http://www.sapido.com.tw/ User Manual v1.0.0... - Page 3 Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC; 93/68/EEC) http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 4 Chapter 1 Introduction http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 5 10Mbps Ethernet is connected Blinking 10Mbps Ethernet Tx/Rx activity 120ms LAN x 4 LAN port activity Green 100Mbps Ethernet is connected Blinking 100Mbps Ethernet Tx/Rx activity 30ms Green 10Mbps Ethernet is connected Blinking 10Mbps Ethernet Tx/Rx activity 120ms http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 6: Chapter 2 System And Network Setup
Prepare the followings before the connection: PC or Notebook for setup Ethernet cable Make sure you are under “Router Mode”. Connect BR470N to xDSL/ Cable modem with the Ethernet cable, WAN to LAN. Turn on your Computer. http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 7: Network Setup
Double-click Network and Dial-up Connections icon, double click Local Area Connection, and Local Area Connection Properties window will appear. Select “Internet Protocol (TCP/IP)”, then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 8: Windows Xp
Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 9: Windows Vista / Windows 7
Connections. Right-click Local Area Network, then select “Properties”. Local Area Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 10: Router Ip Address Lookup
Router IP Address Lookup After the IP address setup was completed, please clicks “start” → “run” at the bottom-lower corner of your desktop: Input “cmd”, and then click “OK”. http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 11: Log Into Web Gui
Please click “admin” to login the BR470N . Enter the User name and Password in to the blank and then Click Login. The default values for User Name and Password are admin (all in lowercase letters). http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 12: Chapter 3 Internet Connection
Input User Name and New Password, then input Confirm Password again. Chapter 3 Internet Connection This Chapter describes how to setup BR470N to the internet. The BR470N is delivered with the following factory default parameters. Default IP address: 192.168.1.1 Default IP subnet mask: 255.255.255.0 http://www.sapido.com.tw/ User Manual v1.0.0... - Page 13 (Default Gateway) into the blank. Enter the User name and Password into the blank and then click Login. The default values for User Name and Password are admin (all in lowercase letters). Status page Download pdadd Logout http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 14 For office environment，there are Multiple AP、Wireless Access Office Control Control、IP Filtering、IP Binding and QoS Firmware Upgrade This function allows you upgrade the BR470N firmware to new version. Please note do not power off the device during the upload http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 15 You can maintain the system time by synchronizing with a public time server over the Internet. Factory Default You could reset the current configuration to factory default. Reboot This function is used to reboot Logout This page is used to logout. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 16: Internet Setup
The BR470N provides five selections for the Internet Mode type, PPPoE, DHCP, Static IP , PPTP and L2TP and WiFi ISP. Check with your ISP if you don’t know the WAN type. http://www.sapido.com.tw/ User Manual v1.0.0... - Page 17 Input the password provided by your ISP. Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. 3.3.2 DHCP http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 18 Universal：clone controller PC mac address as BR470n WAN mac address Specific：use BR470n itself mac address Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 19 Input DNS information which is provided by your ISP Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. 3.3.4 PPTP http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 20 Microsoft client devices. The MPPC algorithm is designed to optimize bandwidth utilization in order to support multiple simultaneous connections. The MPPC algorithm uses a Lempel- Ziv (LZ) based algorithm with a continuous history buffer, called a dictionar Wireless AP Turn on/off wireless http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 21 (OS). Advanced users can set it manually. Wireless AP Turn on/off wireless SSID Service Set identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 22 Select wireless encryption type form the drop-down list. If a router is already set at the house, and you want to make the wireless LAN communication. This mode does not support WAN、 DHCP、 NAT、 DDNS、 QoS、 Firewall、 Static/Dynamic route、 VPN Server features. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 23 Select wireless encryption type form the drop-down list. Wireless AP Turn on/off wireless WiFi AP When you connect to the internet wirelessly through PC and wireless device without wireless LAN function equipped. This mode does not support WAN、DHCP、NAT、DDNS、QoS、Firewall、Static/Dynamic route、VPN Server features. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 24 User Manual v1.0.0...
- Page 25 Chapter 4 GUI Function Setup Status You could check WAN, LAN, Client network in status. WAN Configuration http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 26 LAN Configuration http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 27: Parental Control
Allow or block client to access internet Parental Control Control Parental provide URL Filtering and MAC Filter Schedule for setup 4.2.1 URL Filtering URL Filtering is used to restrict users to access specific websites in internet http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 28: Mac Filter Schedule
URL Filtering function. 4.2.2 MAC Filter Schedule When enabled, filtering will be based on the MAC address of LAN computers. Any computer with its MAC address on this list will be blocked from accessing the Internet. http://www.sapido.com.tw/ User Manual v1.0.0... - Page 29 Item Description Enable MAC Filtering Please select Enable MAC Filtering to filter MAC addresses. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 30: Wireless Schedule
Wireless Schedule Wireless available schedule, this page allows you setup the wireless schedule rule. Please do not forget to configure systeim before enable this feature Office Control Office control provide Multiple AP、Wireless Access Control、IP Filtering、IP Binding、QoS http://www.sapido.com.tw/ User Manual v1.0.0... - Page 31 LAN+WAN: the client can access to the Internet and access in the router’s GUI. b. WAN: the client can only access to the Internet. Active Client List Display the properties of the client which is connecting successfully. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 32: Wireless Access Control
Please enter the IP address that needs to be filtered. Protocol Please select the protocol type of the IP address Apply Click on Apply to add the setting data Current Filter Table It will display all ports that are filtering now. http://www.sapido.com.tw/ User Manual v1.0.0... - Page 33 The QoS can let you classify Internet application traffic by source/destination IP address and port number. To assign priority for each type of application and reserve bandwidth can let you have a better experience in using critical real time services like Internet phone, video conference … etc. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 34 Percentage Download Bandwidth LAN device bandwidth of download bandwidth Percentage Add the setting data Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 35: Firmware Upgrade
Auto upgrade It provide auto detect new firmware from Internet, and user can select to upgrade new version or not. 4.4.2 Manual upgrade If you download firmware from website, you can upgrade firmware manual as below. http://www.sapido.com.tw/ User Manual v1.0.0... - Page 36 It provide 2 kind of Denial of Service: Home and Enterprise Home: Item Description Home Home Check “ ” to enable DoS function for prevention. You also can No Prevention check “ ” to disable DoS function. Enterprise: http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 37 / computer and office local area network to establish a secure network connection. And User can safe login office local area network and access to personal documents, files Sharing and other resources. It provides the most convenient VPN encryption. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 38 Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. NAT Management This section contains configurations for the BR470N ’s advanced functions such as: virtual server, and DMZ to provide your network under a security environment. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 39: Virtual Server
Select the protocol type. Public Port Range Enter the port number, for example 80-80. Private Port Range Enter the port number, for example 20-22. Current Port Forwarding It will display all port forwarding regulation you made. Table http://www.sapido.com.tw/ User Manual v1.0.0... - Page 40 The port forwarding feature is more secure because it only opens the ports required by that application. Item Description Enable DMZ It will enable the DMZ service if you select it. DMZ Host IP Address Please enter the specific IP address for DMZ host. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 41: Remote Management
Allow user access GUI from WAN side on WAN Time Zone Users can select time zone and synchronize the local clock on the router. Item Description Time Zone Select Please select the time zone. 4.10 Factory Default http://www.sapido.com.tw/ User Manual v1.0.0... - Page 42 You could reset the current configuration to factory default. 4.11 Reboot This function is used to reboot 4.12 Logout This page is used to logout http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 43: Chapter 5 Advance Setup
Chapter 5 Advance Setup Internet Mode 5.1.1 Internet Setup Please refer Internet Setup 5.1.2 Please refer 5.1.3 WiFi AP Please refer WiFi AP 5.1.4 WiFi ISP Please refer WiFi ISP IP Config 5.2.1 5.2.1.1 PPPoE http://www.sapido.com.tw/ User Manual v1.0.0... - Page 44 DNS, and enter the DNS provided by your ISP in DNS 1 2 3. Clone Mac Address Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MAC Address" http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 45 Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MAC Address" Save & Apply Click on Save to save the setting date, the Apply button for execute current configuration. 5.2.1.3 Static IP http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 46 Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MAC Address" Save & Apply Click on Save to save the setting date, the Apply button for execute current configuration. 5.2.1.4 PPTP http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 47 Microsoft client devices. The MPPC algorithm is designed to optimize bandwidth utilization in order to support multiple simultaneous connections. The MPPC algorithm uses a Lempel- Ziv (LZ) based algorithm with a continuous history buffer, called a dictionar http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 48 If you don’t know, please check with your ISP. User Name Input PPTP account provided by your ISP. Password Input the password provided by your ISP. MTU Size Maximum Transmission Unit. Usually provide by computer operation systems (OS). Advanced users can set it manually. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 49 Input ISP Default Gateway Address. If you don’t know, please check with your ISP. DHCP Enable or disable DHCP services. The DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer if enabled. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 50 Please enter Domain Name, User Name/Email, and Password/Key. After entering, click on Apply Changes to save the setting, or you may click on Reset to clear all the input data. Item Description Enable/Disable DDNS Select enable to use DDNS function. Each time your IP address to http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 51: Ipv6 Config
User name is used as an identity to login Dynamic-DNS service. Password/Key Password is applied to login Dynamic-DNS service. Save & Apply Click on “Save” to save the setting data. The “Apply” button can execute current configuration IPv6 Config http://www.sapido.com.tw/ User Manual v1.0.0... - Page 52 Check ISP to get IP address and default gateway IP address Router Name Router domain DNSv6 Select Attain DNS Automatically. Or select Set DNS Manually, if you want to specify the DNS, and enter the DNS provided by your ISP in http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 53 Wireless 5.4.1 Basic Settings This page is used to configure the parameters for wireless LAN clients who may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 54 Enable / Disable Wi-Fi Multimedia Data Rate Please select the data transmission rate. Associate Clients Check the AP connectors and the Wireless connecting status. Enable MAC Clone (Single Clone the MAC address for ISP to identify. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 55: Advanced Settings
To identify the maxima length of packet, the over length packet will be fragmentized. The allowed range is 256-2346, and default length is 2346. RTS Threshold This value should remain at its default setting of 2347. The range is http://www.sapido.com.tw/ User Manual v1.0.0... - Page 56 Please note that using any encryption may cause a significant degradation of data throughput on the wireless link. There are five Encryption types supported: “None”, “WEP”, “WPA”, ”WPA2”, and “WPA-Mixed”. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 57 W EP key which uses single encryption key for long time. "AES" is harder to decode comparing to "TKIP", so it can say tougher encryption scheme than "TKIP" WPA-Mixed Support WPA and WPA2 at the same time http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 58 Access Point in a minute without any hassle. SAPIDO BR470N could support both Self- PIN or PBC modes, or use the WPS button (at real panel) to easy enable the WPS function.
- Page 59 When selected in the Basic Settings page and enabled here, Wireless Distribution System (WDS) enables the router to be used as a wireless bridge. Two Wireless-N Routers in bridge mode can communicate with each other through their wireless interfaces. To accomplish http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 60 The WDS explanation is as the following picture. Router_A： Set the connection mode to “AP+WDS” from “Wireless Basic Setting”, and then select the channel number (in this example is "11”). Click Apply Changes to save the setting. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 61 Enable WDS function from the page – “WDS Setting”, and then fill in the MAC address of Router_B. Click Apply Changes to save the setting data. Select encryption for security Router_B mac address The WDS AP List will show the WDS device MAC address. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 62 Router_B： Setup Router_B WDS. Select encryption for security Router_A mac address Router_B LAN PC will get IP address from Router_A. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 63 Same as Router B Same as Router A Note 1: LAN IP address should be under the same segment but cannot be the same number. 5.4.7 Schedule Please refer Wireless Schedule Please refer NAT Management VPN Server http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 64 Description Enable QoS Check “Enable QoS” to enable QoS function for the WAN port. You also can uncheck “Enable QoS” to disable QoS function for the WAN port. Automatic uplink speed Check the Automatic uplink speed. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 65: Port Filtering
It will display all ports that are filtering now. Delete Selected & Delete Click Delete Selected will delete the selected item. Click Delete All will delete all items in this table. Port 80 has been blocked as the following illustrate. http://www.sapido.com.tw/ User Manual v1.0.0... - Page 66 IP: 192.168.1.x Port: 80-80 5.5.4 IP Filtering Please refer IP Filtering 5.5.5 Mac Filter Schedule Please refer Mac Filter Schedule 5.5.6 URL Filtering Please refer URL Filtering 5.5.7 IP Binding Please refer IP Binding 5.5.8 VLAN http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 67: Forwarding Rule
5.6.3 Wake on Lan Switch your computer ON through your LAN or the Internet . To support WOL you must have a computer with Motherboard that supports WOL, as well as a Network Controller (NIC) supporting http://www.sapido.com.tw/ User Manual v1.0.0... -
Page 68: Change User Name/Password
Users can create a backup file that contains current router settings. This backup file can be used to restore router settings. This is especially useful in the event you need to reset the router to its default settings. Save Configuration (1). Click Save http://www.sapido.com.tw/ User Manual v1.0.0... - Page 69 (2). Please click “Save” to save the configuration to your computer. (3). Select the location which you want to save file, then click Save. Load configuration file (1). Tap “browse” and select configuration file then click Open http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 70 Please refer Remote Management 5.6.8 Time Zone Users can synchronize the local clock on the router to an available NTP server (optional). To complete this setting, enable NTP client update and select the correct Time Zone. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 71 UPnP, please click My Network Places. Users will see an Internet Gateway Device icon. By click the icon, users can enter the GUI of the router. If you do not wish to use UPnP, you can disable it. http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 72: Route Setup
Enable or Disable NAT function There are 3 options： Transmit Disable：do not send any RIP packet out Send RIP1 packet out Send RIP2 packet out There are 3 options： Receive Disable：do not receive any RIP packet Only receive RIP1 packet http://www.sapido.com.tw/ User Manual v1.0.0... - Page 73 L2TP Pass-through To allow the L2TP network traffic to be forwarded to its destination without the network address translation tasks. IPV6 Pass-through Allow IPV6 packet to be forwarded to its destination without the network address translation tasks. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 74 5.6.12 Wan Type Auto Detection http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 75: Installation
Way 1: Check with your Internet Service Provider. Way 2: Check the setting screen of BR470N . Click on Status & Log item to select Network Configuration on the Main Menu. WAN IP is shown on http://www.sapido.com.tw/ User Manual v1.0.0... - Page 76 HTTP Proxy feature of your Web browser is disabled. Make these verifications so that your Web browser can read configuration pages inside your router. Launch your Web browser. Internet Explorer Users: Click on Tools > Internet Options > Connections tab. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 77 Q: Why is that I can ping to outside hosts, but cannot access Internet websites? A: Check the DNS server settings on your PC. You should get the DNS servers settings from your ISP. If your PC is running a DHCP client, remove any DNS IP http://www.sapido.com.tw/ User Manual v1.0.0...
-
Page 78: Wireless Lan
Q: My PC can’t locate the Wireless Access Point. A: Check the following: Your PC is set to Infrastructure Mode. (Access Points are always in Infrastructure Mode.) http://www.sapido.com.tw/ User Manual v1.0.0... - Page 79 Wireless Router’s default IP Address of 192.168.1.254. Also, the Network Mask should be set to 255.255.255.0 to match the Wireless Router. In Windows, you can check these settings by using Control Panel ~ Network to check the Properties for the TCP/IP protocol. http://www.sapido.com.tw/ User Manual v1.0.0...
- Page 80 A: The default WEP of WinXP is Authentication Open System - WEP, but the WEP of SAPIDO BR470N is only for Shared Key - WEP, it caused both sides couldn’t communicate. Please select the WEP of WinXP from Authentication Open System to Pre-shared Key - WEP, and then the WEP wireless interface between WinXP and SAPIDO BR470N would be communicated.
-
Page 81: Operating Systems
FireFox ver. 2.0.0.11 and the following related versions.3. Safari ver. 3.04 and the following related versions. 7.7 Communications Regulation Information Should any consumers need to learn more information, services and supports, please contact the supplier of your product directly. http://www.sapido.com.tw/ User Manual v1.0.0...
