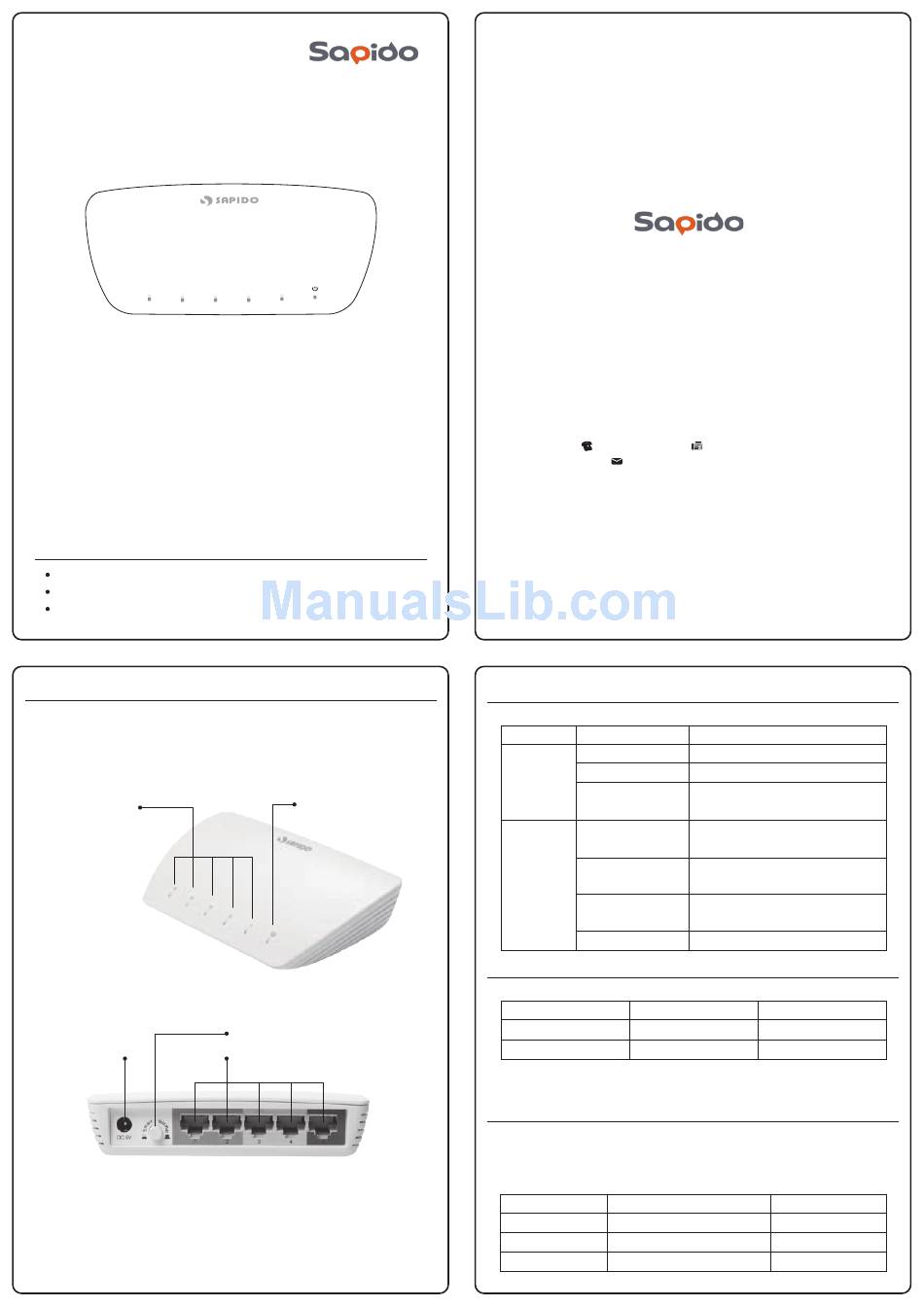

5 Port Smart Fast Ethernet Switch HF-3205
Quick Installation Guide (V1.1)
Package Includes
One (1) 5 Port Smart Fast Ethernet Switch
One (1) Power Adapter
One (1) Quick Installation Guide
Diagram of Functions
【Front Panel】
Link/Act/Loop
【Rear Panel】
Power
Connector
1
3
2
Power
QoS Push Button Switch
10/100Mbps Ethernet Ports
www.sapido.com.tw
SAPIDO Technology Inc.
383, Sec. 2, Minsheng Rd.,West Central District,
Tainan City700,Taiwan
886-6-2280698
service.tw@sapido.com.tw
LED Indicators
For definitions of LED indicators, please refer to the following table:
LED
Light
Power
Steady Green
Off
Flashing Reddish
Orange
Link/Act/
Steady Green
Loop
Blinking Green
Flashing Green
every second
Off
Cable Type
For cable selection, please refer to the following table:
Port Type
Cable Type
100BASE-TX
Cat. 5 UTP/STP
10BASE-TX
Cat. 3, 4, 5 UTP/STP
※ Cat.5 TP is recommended
QoS Push Button Switch
You can choose Normal mode or QoS mode via QoS push button
switch. Press the button to activate bandwidth management.
Normal Mode:The bandwidth of red, yellow, and green ports is all the same.
QoS Mode:The bandwidth priority divides into three kinds.
Ethernet Port
Bandwidth Priority
Red
The Highest
Yellow
Higher
Green
886-6-2293658
Status
Power is on
Power is off
Loop is detected
Network connection established,
10/100 Mbps connected
Transmitting or receiving data,
10/100Mbps connection activity
Loop is detected
No connection
Plug Connector
RJ-45
RJ-45
Bandwidth Ratio
8
4
High
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HF-3205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sapido HF-3205

  • Page 1 5 Port Smart Fast Ethernet Switch HF-3205 Quick Installation Guide (V1.1) SAPIDO Technology Inc. 383, Sec. 2, Minsheng Rd.,West Central District, Tainan City700,Taiwan 886-6-2280698 886-6-2293658 service.tw@sapido.com.tw Package Includes One (1) 5 Port Smart Fast Ethernet Switch One (1) Power Adapter...
  • Page 2 Installation The SAPIDO HF-3205 Switch does not require any software configuration. You can immediately use the switch after plugging in the RJ-45 Ethernet cables and turning on the power. The switch can be used according to following steps: First, please select the mode as normal mode or QoS mode which you would like to use.
