- Page 1 Slimline 1T100 1 x 100W tri-colour LED (RGB) User Manual Optional IR remote Order ref: LEDJ90E Order codes: LEDJ85...
-
Page 2: Safety Advice

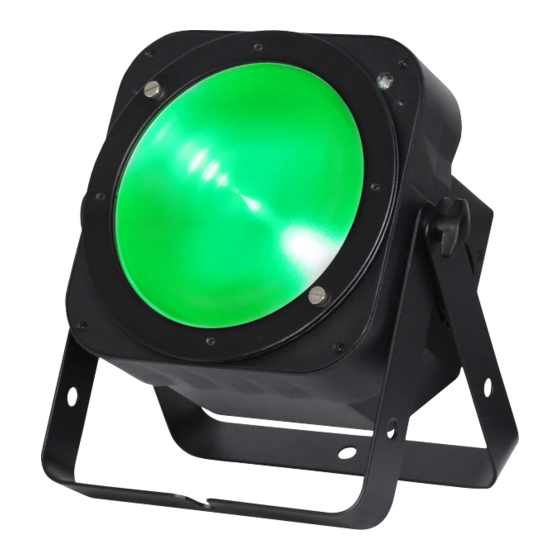

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Slimline 1T100 User Manual... - Page 3 Product overview & technical specifications Slimline 1T100 Housing a 100W tri-colour RGB COB LED, the Slimline 1T100 gives smooth colour mixing from rich saturated hues to subtle pastel shades. These units have a rugged, all metal housing, side entry XLR and power connections and measure only 130mm in depth for easy transportation and installation.
-
Page 4: Technical Specifications
06 - Earth point 10 - 3-Pin DMX input 1 x power cable & 03 - Function buttons 07 - IEC power input 1 x user manual 04 - LED display 08 - IEC power output www.prolight.co.uk Slimline 1T100 User Manual... -
Page 5: Operating Instructions
SP-0 SP-9 Fianlly use the “UP” and “DOWN” buttons to set the speed of the program from press the “ENTER” button to confirm the setting. Value: 0 - 9 (0 = slow, 9 = fast) www.prolight.co.uk Slimline 1T100 User Manual... -
Page 6: Master/Slave Mode
P-09 - 7 colour fade P-10 - 3 colour change P-11 - 3 colour fade Slave mode SLAV Sound active mode SU00~SU99 DMX mode 3CH, 5CH Address setting A001~A512 IR function ICon - IR On ICoF - IR Off www.prolight.co.uk Slimline 1T100 User Manual... -
Page 7: Important Notes
• If you do not press the “DMX MODE” button after you have changed the DMX address when you power down the fixture it will lose the address you have set www.prolight.co.uk Slimline 1T100 User Manual... -
Page 8: Dmx Setup
Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Slimline 1T100 User Manual... -
Page 9: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Slimline 1T100 User Manual... -
Page 10: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Slimline 1T100 User Manual... - Page 11 Slimline 1T100 User Manual...
