JL Audio XD 800/8v2 Owner's Manual

owner's manual

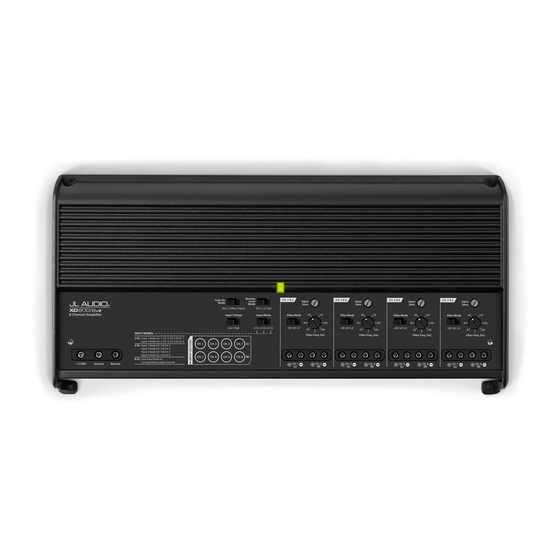

800W 8 Channel Amplifier
8 Channel Amplifier
INPUT MODES:
2 Ch. Input 1 feeds CH. 1, CH. 3, CH. 5 & CH. 7
Input 2 feeds CH. 2, CH. 4, CH. 6 & CH. 8
4 Ch. Input 1 feeds CH. 1 & CH. 3
Input 2 feeds CH. 2 & CH. 4
Input 5 feeds CH. 5 & CH. 7
Input 6 feeds CH. 6 & CH. 8
8 Ch. Each input feeds its
corresponding output channel
+12 VDC Ground Remote
Thank you for purchasing a JL Audio amplifier for
your automotive sound system.
Your amplifier has been designed and manufactured to exacting
standards in order to ensure years of musical enjoyment in your vehicle.
For maximum performance, we highly recommend that you have
your new amplifier installed by an authorized JL Audio dealer. Your
authorized dealer has the training, expertise and installation equipment
to ensure optimum performance from this product. Should you
decide to install the amplifier yourself, please take the time
to read this manual thoroughly so as to familiarize yourself
with its installation requirements and setup procedures.
If you have any questions regarding the instructions in this
manual or any aspect of your amplifier's operation, please contact your
authorized JL Audio dealer for assistance. If you need further assistance,
please call the JL Audio Technical Support Department
at (954) 443-1100 during business hours.
Remote
Turn-On CH. 1 & 2 CH. 3 & 4
Level Input Input
Mode
Mode Sens. Sens.
Rem. | O set | Signal All | 5- 8 | 7&8
Input Voltage Input Mode Filter Mode Filter Mode
Low | High 2 Ch. | 4 Ch. | 8 Ch. O | HP | LP O | HP | LP
Filter Freq. (Hz)
(L)
CH. 1 CH. 3 CH. 5 CH. 7
CH. 2 CH. 4 CH. 6 CH. 8 (R)
CH. 1 CH. 2 CH. 3
(L) (R) (L)
CH. 5 & 6 CH. 7 & 8
Input Input
Sens. Sens.
Filter Mode Filter Mode
O | HP | LP O | HP | LP
Filter Freq. (Hz) Filter Freq. (Hz) Filter Freq. (Hz)
CH. 4 CH. 5 CH. 6 CH. 7 CH. 8
(R) (L) (R) (L) (R)
