5

LAN

LAN
The RG230 must have a valid IP address for management using a web browser and
to support other features. The unit has a default IP address of 192.168.1.1. You can
use this IP address or assign another address that is compatible with your existing
local network. The unit can also be enabled as a Dynamic Host Configuration
Protocol (DHCP) server to allocate IP addresses to local PCs.

LAN Settings

The RG230 includes a DHCP server that can assign temporary IP addresses to any
attached host requesting the service. Addresses are assigned to clients from a
common address pool configured on the unit. Configure an address pool by
specifying start and end IP addresses. Be sure not to include the unit's IP address in
the address pool range.

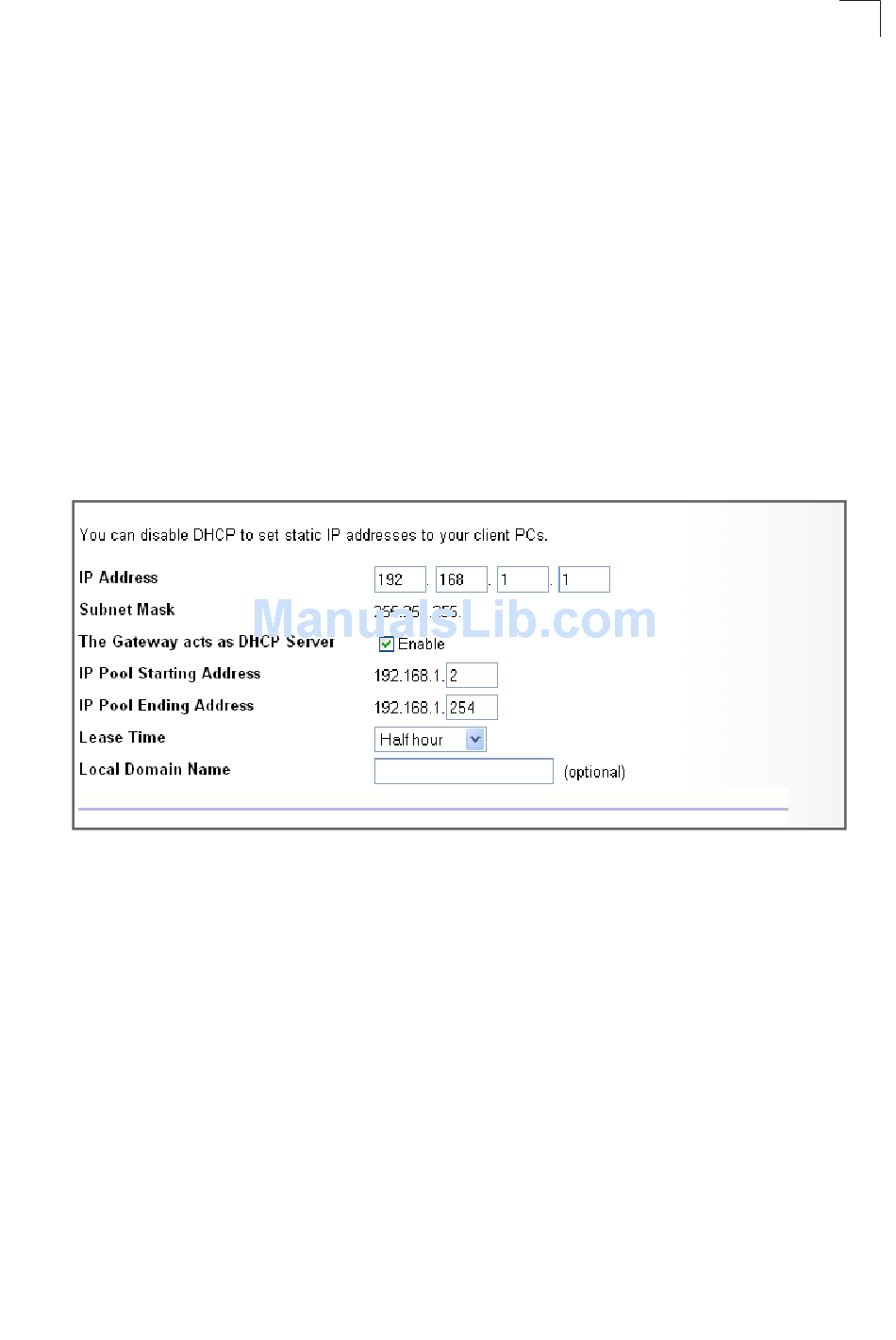

Figure 5-7 LAN Settings

IP Address – The IP address of the unit. Valid IP addresses consist of four decimal
numbers, 0 to 255, separated by periods.The default setting is 192.168.1.1.
Subnet Mask – Indicates the local subnet mask is fixed as 255.255.255.0.
The Gateway acts as DHCP Server – Check this box to enable the DHCP server.
IP Pool Starting/Ending Address – Specifies the start and end IP address of a
range that the DHCP server can allocate to DHCP clients. You can specify a single
address or an address range. Note that the address pool range is always in the
same subnet as the unit's IP setting. (Default: 192.168.1.2 to 192.168.1.254)
Lease Time – Selects a time limit for the use of an IP address form the IP pool.
When the time limit expires, the client has to request a new IP address.
(Default: Half hour; Options: Half hour, one hour, two hours, half day, one day,
two days, one week, two weeks)
5-7
