Power Fist 1/2 HP User Manual

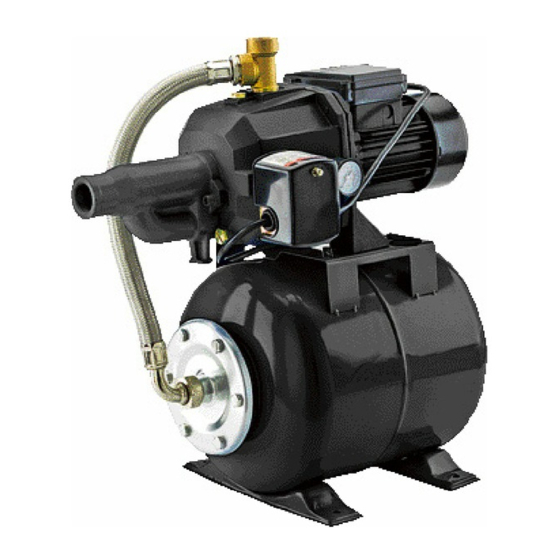

1/2 hp deep well jet pump
Hide thumbs

Advertisement

Table of Contents

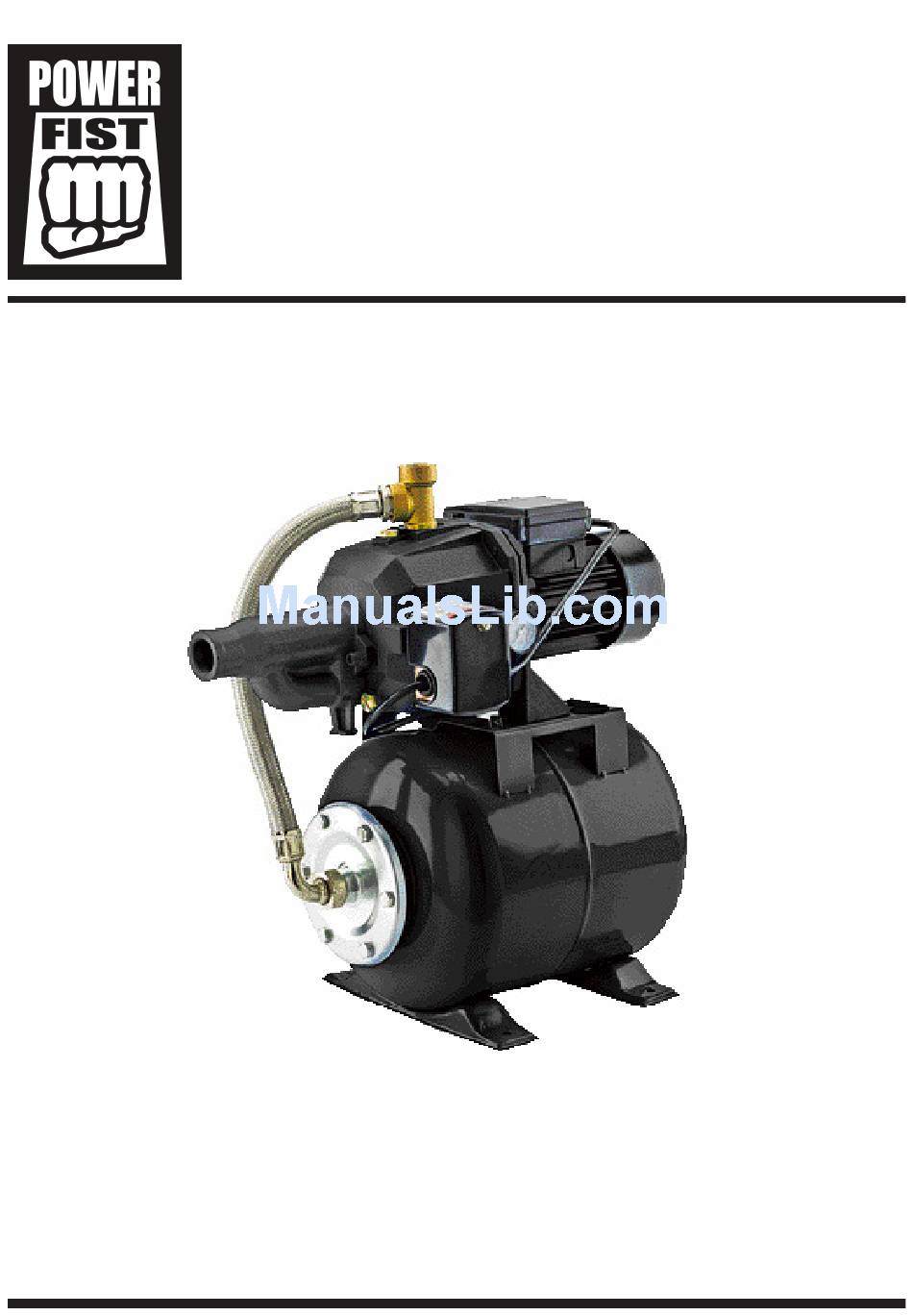

FTRY
Please read and understand all instructions before use.
Retain this manual for future reference.
1/2 HP Deep
Well Jet Pump
User Manual
8353799

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1/2 HP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Power Fist 1/2 HP

Summary of Contents for Power Fist 1/2 HP

  • Page 1 FTRY 8353799 1/2 HP Deep Well Jet Pump User Manual Please read and understand all instructions before use. Retain this manual for future reference.

  • Page 3: Specifications

    FTRY 8353799 1/2 HP Deep Well Jet Pump SPECIFICATIONS Power 120V / 60Hz 1/2 HP Max flow rate 13.5 GPM Max. Head 66 PSI Power cable 3C*SJTW 16 AWG*1.6m Max. water temperature 35° C IMPORTANT SAFETY PRECAUTIONS WARNING! Read and understand all instructions before using this tool. Failure to follow all instructions may result in electric shock, fire and/or personal injury.
  • Page 4 8353799 1/2 HP Deep Well Jet Pump FTRY CAUTION: Do not touch an operating motor. Modern motors are designed to operate at high temperatures. To avoid burns when servicing pump, allow it to cool for 20 minutes after shut-down before handling.
  • Page 5 FTRY 1/2 HP Deep Well Jet Pump 8353799 INSTALLATION—MODEL XDPM196A3 Figure 3: Drive and Suction Functions Discharge Suction (Larger Port) WARNING – HAZARDOUS VOLTAGE! Piping and Pressure Regulator Disconnect power to pump before omitted from diagram for clarity working on pump or motor.
  • Page 6 8353799 1/2 HP Deep Well Jet Pump FTRY NOT TO SCALE DRIVEN POINT INSTALLATION (FIGURE 6) Step 3. Drive the well, using “drive couplings” and a “drive cap”. “Drive Suction pipe fittings” are threaded all the way through and allow the pipe ends...
  • Page 7 FTRY 1/2 HP Deep Well Jet Pump 8353799 PREPARING TO START THE PUMP – ALL MODELS CAUTION: Never run a pump dry. Running pump without water may cause pump to overheat, damaging seal and possibly causing burns to persons handling pump. Fill pump with water before starting.

  • Page 8: Troubleshooting

    8353799 1/2 HP Deep Well Jet Pump FTRY TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motor will not run 1. Disconnect switch is off. 1. Be sure switch is on. 2. Fuse is blown or 2. Replace fuse or reset circuit breaker.
  • Page 9 FTRY 1/2 HP Deep Well Jet Pump 8353799 SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Pump delivers 1. Pressure switch is out of adjustment 1. DISCONNECT POWER; water but does or contacts are welded together adjust or replace pressure switch. not shut off 2.

  • Page 10: Repair Parts

    8353799 1/2 HP Deep Well Jet Pump FTRY REPAIR PARTS Part no. Description Ejector Nozzle Adjutage Filling plug Pump body Three-ways Diffuser Motor stator Terminal box Capacitor Terminal cover Terminal End plate Screw Fan cover Ball bearing Rotor Pump support...

This manual is also suitable for:

Xdpm196a3
