NOTE:
If surface mounting, route
wires through alternate
access points.
0.27"
(7 mm)
Good
Bad
0.47"
(12 mm)

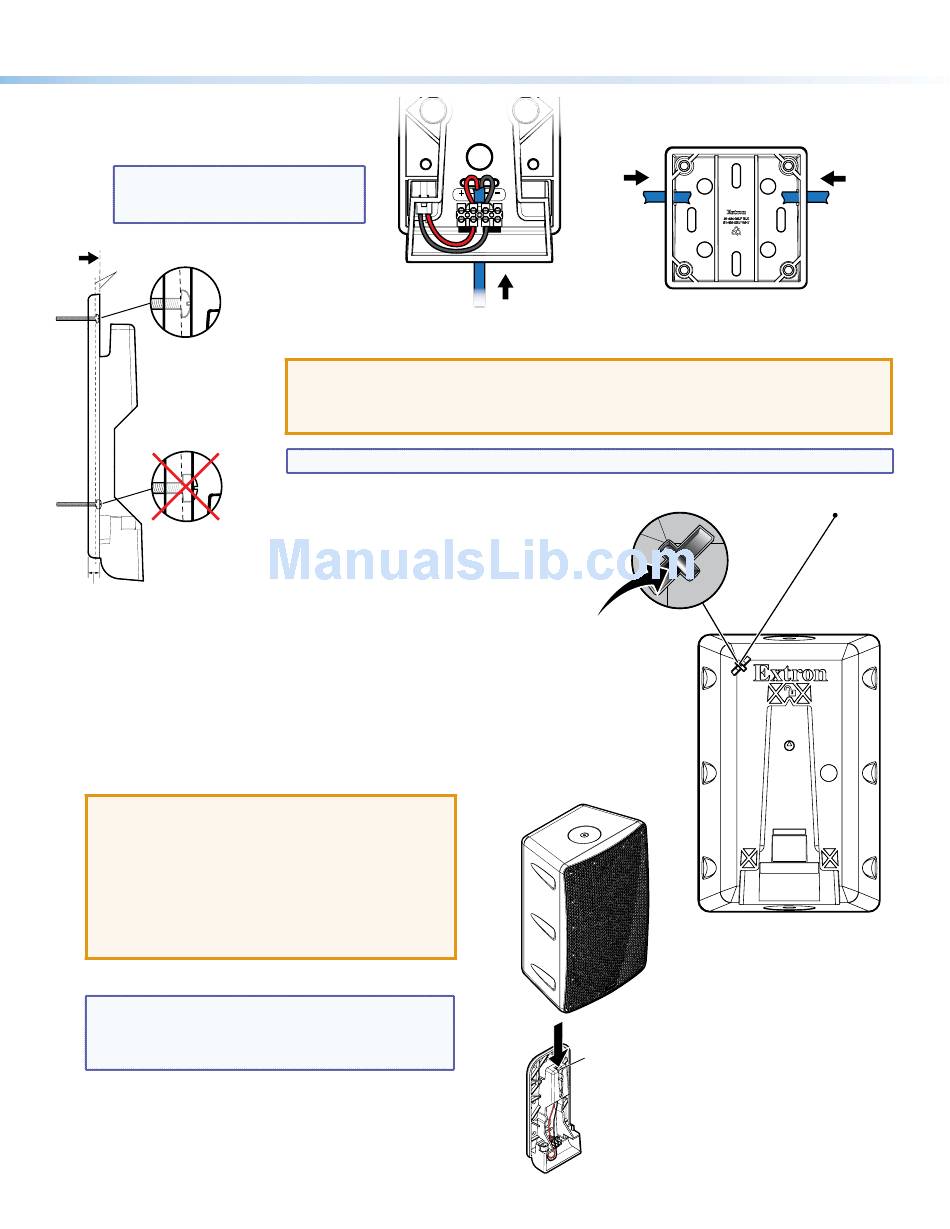

Attaching a Secondary Support Cable

If a secondary support cable is being attached, attach the cable to
the eye bolt, as shown on the right. The cable end should be properly
swaged.

Attaching the Speaker to the Mounting Plate

ATTENTION:
The key must be rotated to the
unlocked position before the speaker is attached
to the mounting plate. Failure to place the speaker
in the unlocked position will result in damage to
the speaker lock mechanism should an attempt be
made to mount the speaker. By default, the
SM 26 speaker is shipped unlocked (see "
the Security Key to Lock and Unlock the
Speaker
" on the next page).
NOTE:
If a secondary attachment point is being
used, see the "Attaching a Secondary Support
Cable" section above for installation details before
proceeding further.
Position the rear mounting slot of the speaker above the
catch tab of the mounting plate, then slide the speaker down
into the mounting plate until a click is heard indicating that the
speaker is secured in place (see figure on the right). When
properly seated, the speaker connections are automatically made.
+ +
LOOP
0° Mounting Plate
Alternate Access Point
ATTENTION:
Use the appropriate mounting screws. The screw heads must not protrude
more than 0.27 inch ( 7 mm) above the screw holes in the mounting plate (see the figure
on the left). If the screw head protrudes too far above the mounting plate surface, damage
to the speaker may occur when the speaker is attached.
NOTE:
If mounting the SM 26 with the yoke mount, refer to the Yoke Mount Setup Guide.
Using
– –
33-0000-01 Rev. Ax1
IN IN LOOP
Attach cable here
and secure.
Catch Tab
Product Category
10° Mounting Adapter
Alternate Access Points
Anchor this end to a
suitable secure point.
Secondary
Attachment
Cable
3
