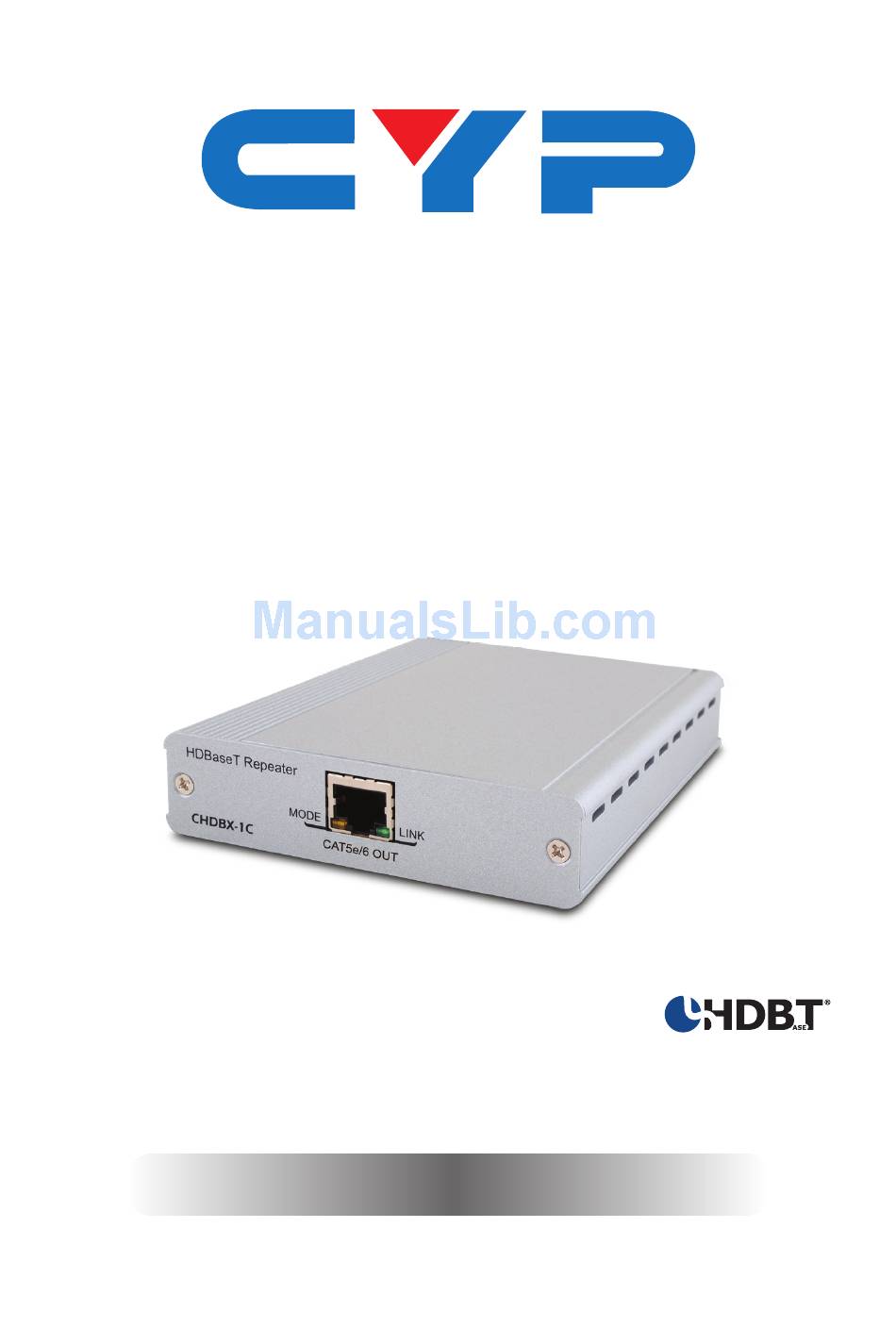

- Page 1 CHDBX-1C HDBaseT Repeater 5-Play™ Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 5: Introduction
1. INTRODUCTION The HDBaseT™ Repeater allows HDBaseT systems to be extended and cascaded. The model supports the highest quality of uncompressed high-definition HD video up to 4K×2K (Ultra HD), up to 8 channels of uncompressed multi-channel audio, RS-232 and IR control systems, PoE and Ethernet, complete HDBaseT 5Play™... -
Page 6: Features
5. FEATURES • HDMI, DVI and HDCP compliant • Supports 3D over HDMI and 4K×2K (Ultra HD) resolution • Supports CEC bypass • Doubles up the distance of HDBaseT transmission between transmitter and receiver, with a single repeater • Uncompressed video support up to 1080p@60Hz/36-bit and 4k×2K (Ultra HD) •... -
Page 7: Operation Controls And Functions

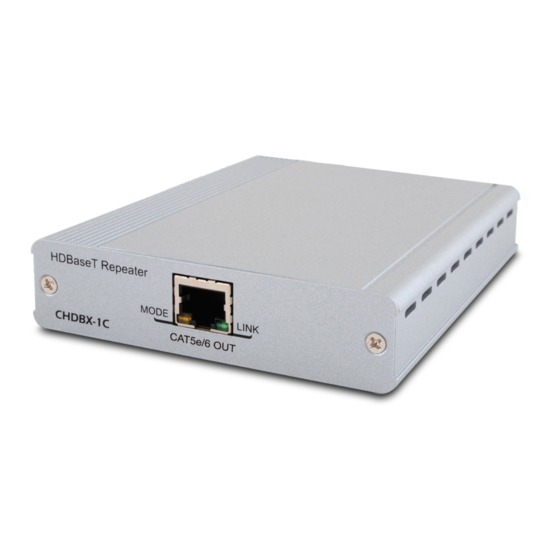

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDBaseT Repeater MODE LINK CHDBX-1C CAT5e/6 OUT MODE LED The yellow LED will flash when the unit is powered or when an active receiver is connected. CAT5e/6 OUT Connect to the receiver unit with a single CAT5e/6/7 cable (up to 100m). -
Page 8: Rear Panel
6.2 Rear Panel DC 24V POWER MODE LINK CAT5e/6 IN MODE LED The yellow LED will flash when the unit is powered or when an active transmitter is connected. CAT5e/6 IN Connect to the transmitter unit with a single CAT5e/6/7 cable (up to 100m). -
Page 9: Connection Diagram
Ethernet with suitable Transmitters) Rear DC 24V POWER MODE LINK CAT5e/6 IN Front HDBaseT Repeater MODE LINK CHDBX-1C CAT5e/6 OUT 100 m Power Supply RS-232 Out Receiver HDMI Out CAT5e/6 to HDMI with LAN/IR/RS232 HDMI Output RS-232 RS-232 Device to... - Page 10 100 m Ethernet with suitable Transmitters) Rear DC 24V POWER MODE LINK CAT5e/6 IN Front HDBaseT Repeater MODE LINK CHDBX-1C CAT5e/6 OUT Power Supply 100 m Rear DC 24V Optional 2nd Repeater POWER MODE LINK extends the operating CAT5e/6 IN...
-
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Input Port 1×CAT5e/6/7 Output Port 1×CAT5e/6/7 Resolution Support 480i~1080p@50/60, 1080p@24, 4k×2K CAT5e/6 In/Out Distance Up to 100/100 meters Power Supply 24 V/1.25 A DC (US/EU Standards, CE/ FCC/UL certified) Dimensions 102 mm (W)×145 mm (D)×25 mm (H) Weight 324 g Chassis Material... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CHDBX1C...
