Summary of Contents for CYP CLUX-11SA
-
Page 1: Audio Decoder
CLUX-11SA HDMI to HDMI repeater with Audio decoder Operation Manual CLUX-11SA... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... 4.1 Front Panel................4.2 Rear Panel................5. Connection and Installation............. 6. Specifications................ -
Page 3: Introduction
1. Introduction This is the most advanced solution for HDMI to HDMI repeater with Audio decoder. This is compatible with HDMI v1.3 specifications, a cutting edge technology which defines to transfer Deep Color (12 bits/color) video with a high bandwidth up to 225MHz. The HDMI v1.3 Distribution Amplifier also does signal amplification and equalization output that can connected with other HDMI to HDMI units for repeater function. -

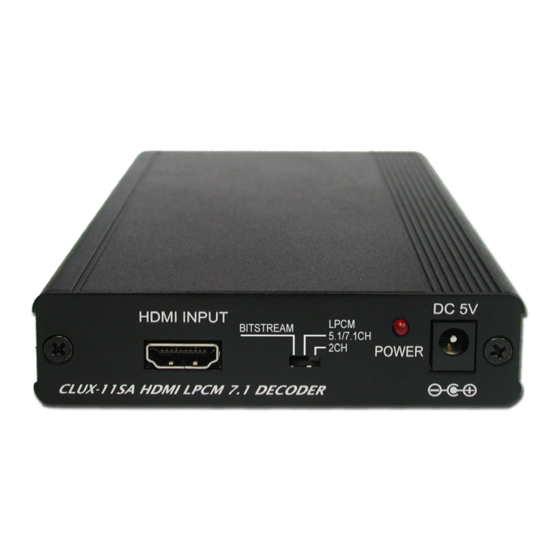

Page 4: Operation Controls And Functions
HDMI INPUT LPCM BITSTREAM 5.1/7.1CH POWER CLUX-11SA HDMI LPCM 7.1 DECODER HDMI input: Connect the HDMI input port to the HDMI output port of your source equipment such as DVD player or set-top-box. Audio selection switch: To switch between Bitstream/LPCM7.1/5.1/LPCM2 channels. -
Page 5: Rear Panel
4.2 Rear Panel FL/FR LFE/FC RL/RR RLC/RRC HDMI OUT MULTI CHANNEL OUT OPTICAL OUT HDMI output: Connect the HDMI output port to the HDMI input port of your display. Multi channel output: Connect the audio channel output to the input of your amplifier equipment and follow the amplifier connections. -
Page 6: Connection And Installation
5. Connection and Installation HDMI TV Amplifier 6. Specifications Input port 1 x HDMI HDMI input audio format LPCM 7.1, 5.1 or 2 channels and Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Output port 1 x HDMI HDMI output audio format LPCM 7.1, 5.1 or 2 channels and Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20071217 MPM-CLUX11SA...
