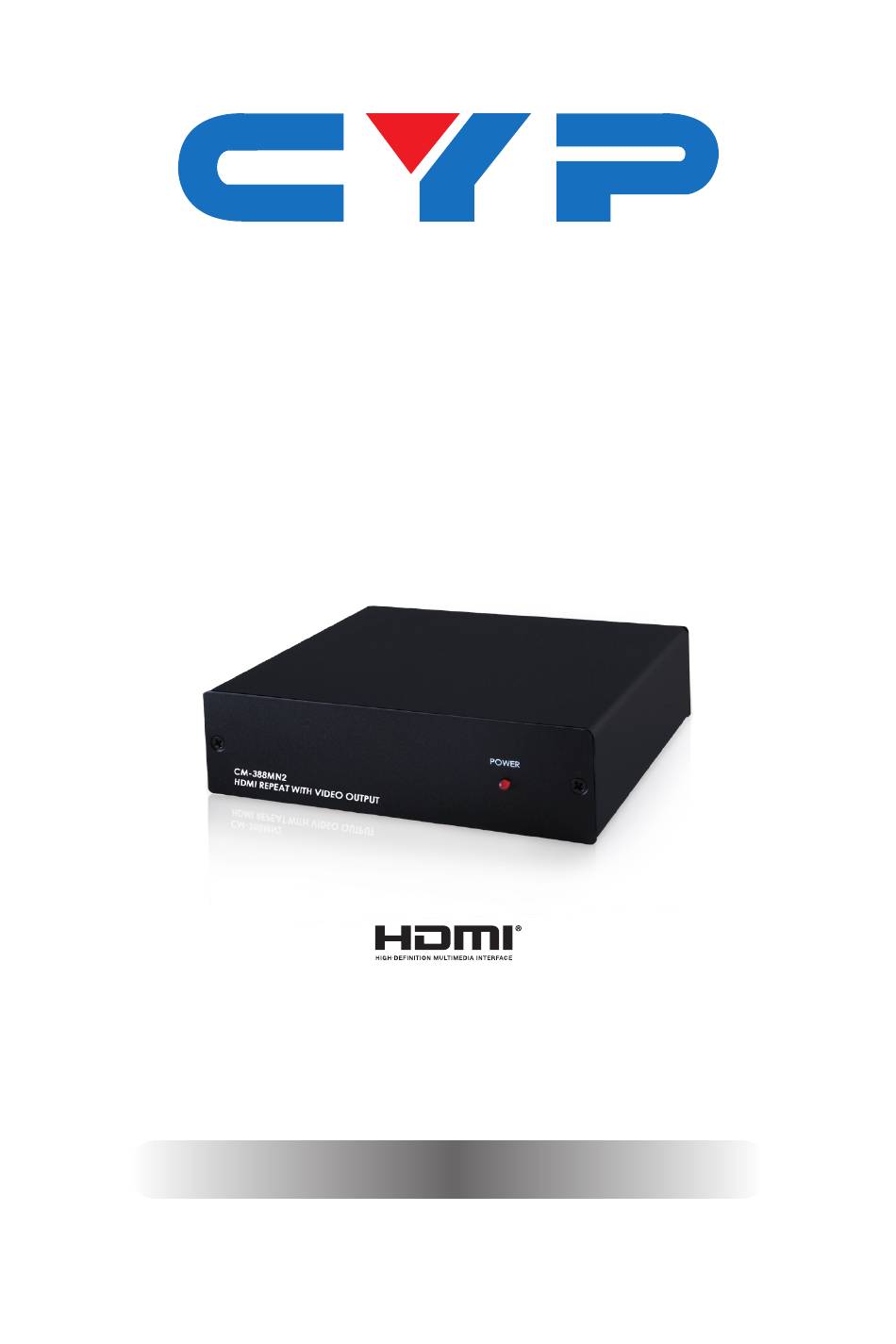

- Page 1 CM-388MN2 HDMI Repeater with SD Video Output Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........3 7. Connection Diagram ........5 8. Specifications ..........6 8.1 Technical Specifications ...... -
Page 6: Introduction
1. INTRODUCTION This HDMI Repeater with Video Output is designed to convert digital HDMI (or DVI plus Coaxial) sources into SD analog video (NTSC or PAL) with analog stereo audio. On the input side, an HDMI port and digital coaxial audio input are provided. For output, composite and s-video ports plus stereo RCA connections are provided to handle the down- converted analog signal. -
Page 7: Features
5. FEATURES • HDMI 1.2, DVI 1.0 and HDCP 1.x compliant • Supports a wide range of HD and PC input resolutions up to WUXGA@60Hz (RB) and 1080p@60Hz (8-bit) • Converts and scales the HDMI input signal to composite and s-video (NTSC or PAL) output with an unscaled HDMI bypass output Note: HDCP encrypted sources can’t be output over the analog ports and will be blanked out. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER CM-388MN2 HDMI REPEAT WITH VIDEO OUTPUT POWER LED: This LED will illuminate to indicate the unit is on and receiving power. 6.2 Rear Panel NTSC COAXIAL COAXIAL VIDEO DC 5V IN... - Page 9 VIDEO & L/R OUTPUT PORTS: Connect to composite video display equipment with stereo audio support such as a TV, VCR or studio monitor for analog video and audio output. Note 1: Analog audio output will be muted if the source is in Bitstream format.
-
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Camcorder HDMI S/PDIF Input Input (via Coaxial) CV & Stereo Outputs Power Supply NTSC COAXIAL COAXIAL VIDEO DC 5V IN HDMI HDMI SERVICE S-VIDEO INPUT OUTPUT SV & Stereo Outputs S/PDIF Output HDMI Bypassed (via Coaxial) Output Amplifier HDTV Analog TV... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 165MHz/4.95Gbps Input Ports 1×HDMI 1×S/PDIF (RCA) Output Ports 1×HDMI 1×Composite Video (RCA) 1×S-Video (4-pin mini-DIN) 1×S/PDIF (RCA) 2×Stereo (4×RCA) Other Port 1×Service (USB Mini-B) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±12kV (Contact Discharge) -
Page 12: Video Specifications
8.2 Video Specifications Input Output Bypass Scaled Supported Resolutions (Hz) HDMI HDMI CV/SV 640×480@60/72/75/85 800×600@56/60/72/75/85 1024×768@60/70/75/85 1152×864@75 1280×768@60 1280×800@60 (RB)/60 1280×960@60 ... -
Page 13: Audio Specifications
8.3 Audio Specifications Analog Input Max Audio Level 2Vrms Impedance 47kΩ Type Unbalanced Analog Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 105dB@0dBFS Frequency Response < ±1dB@20Hz~20kHz Crosstalk < −123dB@10kHz Impedance 600Ω Type Unbalanced Digital (S/PDIF) Input Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96 Digital (S/PDIF) Output... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Light-Emitting Diode LPCM Linear Pulse-Code Modulation NTSC National Television System Committee Phase Alternating Line Personal Computer Standard-Definition S/PDIF... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
