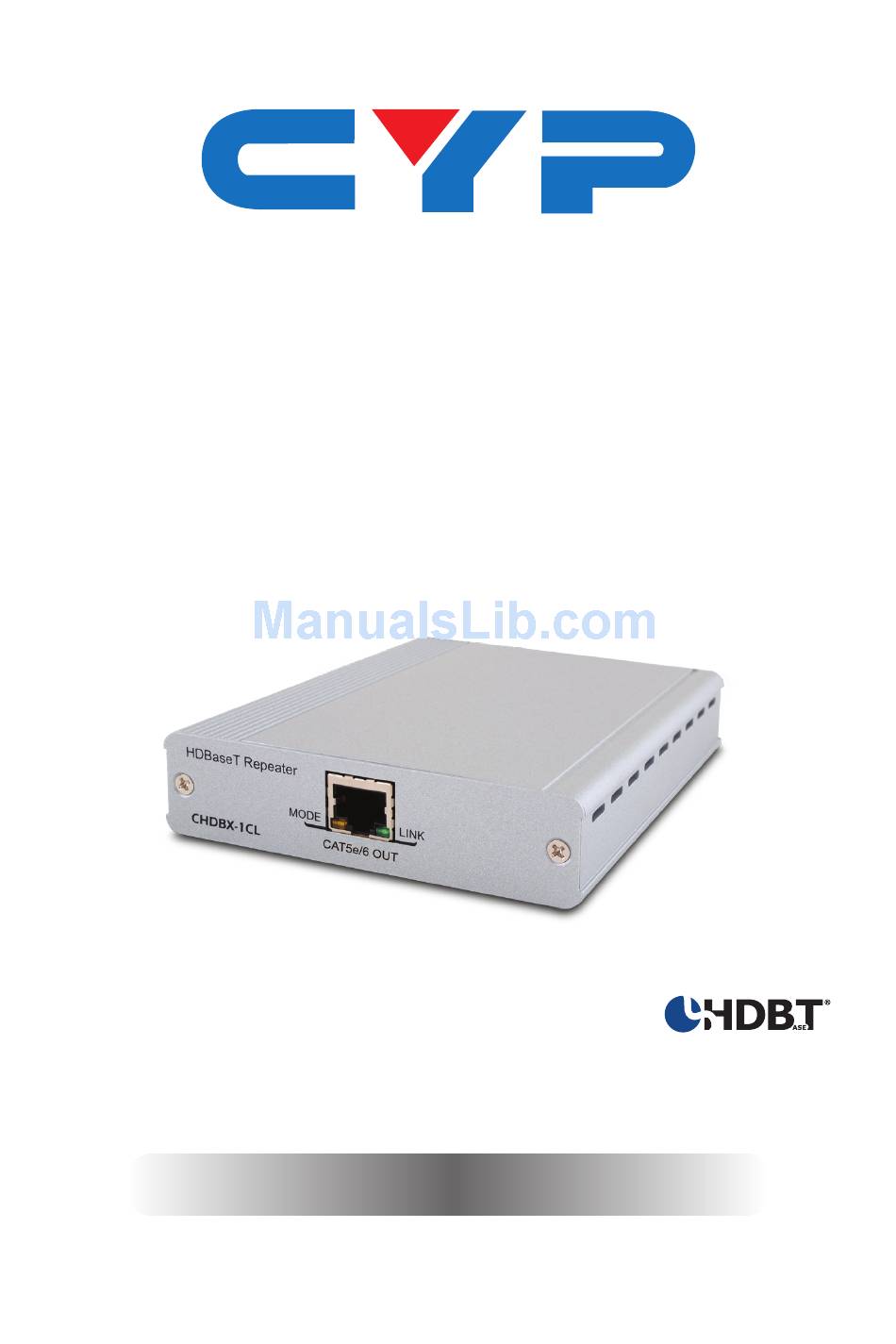

- Page 1 CHDBX-1CL HDBaseT™ Lite Repeater Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 7. Connection Diagram ......5 8. -
Page 5: Introduction
1. INTRODUCTION This HDBaseT™ Repeater allows HDBaseT Lite systems to be extended and cascaded. The model supports the highest quality of uncompressed high-definition HD video up to 4K×2K (Ultra HD), up to 8 channels of uncompressed multi-channel audio, RS-232 and IR control systems, complete HDBaseT 3Play convergence with just a simple connection over a single CAT5e/6/7 cable. -
Page 6: Features
5. FEATURES • HDMI, DVI and HDCP compliant • Supports 3D over HDMI and 4k×2k (Ultra HD) resolution • Supports CEC bypass • Doubles up the distance of HDBaseT transmission between HDBaseT Lite transmitter and receiver, with a single repeater. The transmission distance can be added up 60 meters for every additional repeaters up to 3 tiers •... -
Page 7: Operation Controls And Functions

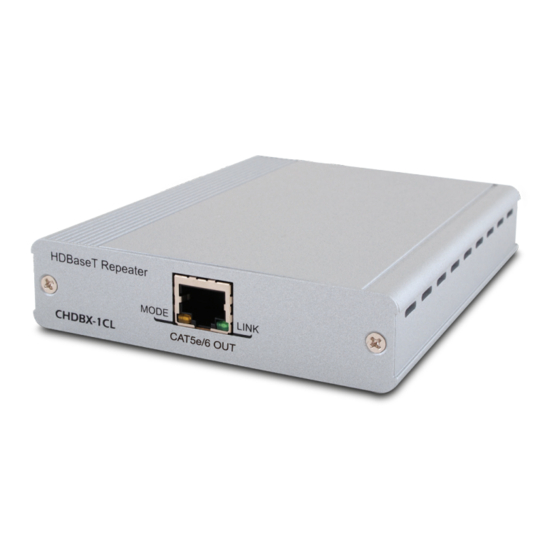

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDBaseT Repeater MODE LINK CHDBX-1CL CAT5e/6 OUT MODE LED The yellow LED will flash when the unit is powered or when an active receiver is connected. CAT5e/6 OUT Connect to the receiver unit with a single CAT5e/6/7 cable (up to 60m). -
Page 8: Rear Panel
6.2 Rear Panel DC 24V POWER MODE LINK CAT5e/6 IN MODE LED The yellow LED will flash when the unit is powered or when an active transmitter is connected. CAT5e/6 IN Connect to the transmitter unit with a single CAT5e/6/7 cable (up to 60m). -
Page 9: Connection Diagram
Supply 60 m Rear DC 24V POWER MODE LINK CAT5e/6 IN Front HDBaseT Repeater MODE LINK CHDBX-1CL CAT5e/6 OUT 60 m RS-232 Device to Power Link be Controlled CAT 5e /6 In IR1 Extender HDMI Out RS232 Out IR2 Blaster... - Page 10 Supply Power Supply 60 m Rear DC 24V POWER MODE LINK CAT5e/6 IN Front HDBaseT Repeater MODE LINK CHDBX-1CL CAT5e/6 OUT Power Supply 60 m Optional 2nd Repeater Rear DC 24V POWER MODE LINK extends the operating CAT5e/6 IN Front...
-
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Input Port 1×CAT5e/6/7 Output Port 1×CAT5e/6/7 Resolution Support 480i~1080p@50/60, 1080p@24, 4k×2K CAT5e/6 In/Out Distance Up to 60/60 meters Power Supply 24 V/1.25 A DC (US/EU Standards, CE/ FCC/UL certified) Dimensions 102 mm (W)×145 mm (D)×25 mm (H) Weight 324 g Chassis Material... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CHDBX1CL...
