- Page 1 PU-108 v1.3 HDMI - CAT6 Repeater OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Installation Connection Diagram Specifications... -
Page 3: Introduction
1. Introduction A dedicated extender for extending the CAT6 cables used with the PU-103, PU- 1103, and PU-1106 HDMI over CAT6 Extender Sets. This great device will extend your cabling up to 25 metres either side of the repeater, allowing IR pass-through, and can be cascaded. -
Page 4: Operation Controls And Functions

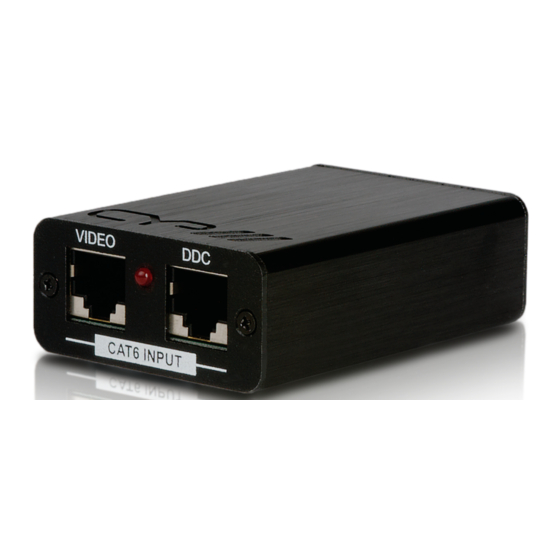

4. Operation Controls and Functions 4.1 Front Panel VIDEO CAT6 INPUT 1. DDC input: Connect the DDC input to the DDC output of the transmitter using CAT- 6 cable. 2. Video input: Connect the video input to the video output of the transmitter unit using CAT-6 cable. -
Page 5: Rear Panel Diagram
4.2 Rear Panel VIDEO VIDEO CAT6 OUTPUT CAT6 OUTPUT 1. Video output: Connect the video output to the video input of the receiver unit using CAT-6 cable. 2. DDC output: Connect the DDC output to the DDC input of the receiver unit using CAT-6 cable. -
Page 6: Connection Installation
5. Connection and Installation 1080i/720p 1080i/720p 1080i/720p 1080p/ 1080p/ 1080p/ 8 bits 10bits 12bits 8bits 10bits 12bits 6. Connection Diagram Page 4... -
Page 7: Specifications
7. Specifications Input Port 1 x CAT5e/6 for Video, 1 x CAT5e/6 for DDC Output Port 1 x CAT5e/6 for Video, 1 x CAT5e/6 for DDC 2 x 5V/2.6A DC (US/EU standards, CE/FCC/UL Power Supply certified) Dimensions (mm) 50(W) x 70(D) x 23(H) Weight (g) Chassis Material Aluminium... - Page 8 Notes:...
- Page 9 www.cypeurope.com...
