- Page 1 RE-101-4K22 4K UHD HDMI Repeater with EDID Management 6G OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..7 6.1 Front and Rear Panels ......7 6.2 Top Panel ............8 6.3 Side Panel ............. 9 6.4 EDID Management ........10 7. -
Page 6: Introduction
1. INTRODUCTION This 4K UHD HDMI to HDMI Enhancer with EDID Management is designed to enhance and stabilise high-bandwidth HDMI signals for cleaner transmission while also providing the utility of customised EDIDs. The built in EDID management support allows the user to easily switch between three distinct EDIDs (Internal, External, and User). -
Page 7: Features
5. FEATURES HDMI input and output with 18Gbps (600MHz) 4K UHD support DVI 1.0 compliant with the use of an HDMI-DVI adaptor HDCP 1.4 and 2.2 compliant Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit) Supports 48-bit Deep Colour up to 1080p@60Hz and 36-bit Deep Colour up to 4k@60Hz (YUV 4:2:0) Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio... -
Page 8: Top Panel

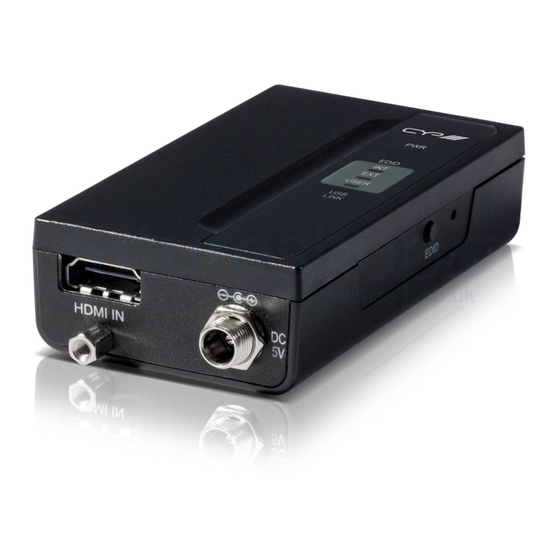

SERVICE: This slot is used for PC software control, EDID upload and firmware updates (see section 6.4). HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. 6.2 Top Panel EDID USER LINK PWR LED: The LED will illuminate to indicate the unit is on and receiving power. -
Page 9: Side Panel
6.3 Side Panel EDID EDID: Press this button to select the EDID to send to the HDMI source. The available choices are: Internal, External, and User. The internal EDID is set to 1080p60 with LPCM 2.0 audio. The External EDID setting passes the EDID directly from the connected display to the source. -
Page 10: Edid Management
6.4 EDID Management This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. - Page 11 • Any EDID from the unit or a connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “Save” icon. • Previously saved EDID files (*.bin format) can be re-uploaded into the “User”...
- Page 12 6.4.2 EDID Creator Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a *.bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyser’s edit option.
- Page 13 Once the user is finished editing or creating an EDID it can be saved to a *.bin file locally or uploaded directly to the unit using the “Save” and “Upload” icons respectively. 6.4.3 System Select the System tab to edit the software’s description, to reset the unit to factory defaults and to view the unit’s current hardware and firmware version information.
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM 4K Source Device HDMI Input (4K@50/60Hz, 4:4:4 up to 3m) Power Supply HDMI IN SERVICE HDMI OUT PC/Laptop for EDID Management HDMI Output (4K@50/60Hz, 4:4:4, up to 3m) MENU LOCK /CANCEL POWER ENTER PRESET 7 0 M iso lated HDMI Matrix System 4K Display... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Port 1×HDMI Control Interface 1×USB Micro-B Supported Resolutions 480i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) HDMI Cable Length 15m (1080p@60Hz, 8-bit) 10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:2:0, 8-bit) 3m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL... -
Page 16: Video Specifications
8.2 Video Specifications Supported PC Resolutions (Hz) Input Output 640×480@60/72/75/85 720×400@85 800×600@56/60/72/75/85 1024×768@60/70/75/85 1152×864@75 1280×720@60 1280×768@60/75/85 1280×800@60 1280×960@60 1280×1024@60 1360×768@60 ... - Page 17 Supported TV Resolutions (Hz) Input Output 720×576i@50 720×480i@59.94/60 720×480p@59.94/60 720×576p@50 1280×720p@50/59.94/60 1920×1080i@50/59.94/60 1920×1080p@23.97/24/25/29.97/30/50/59.94/60 3840×2160p@24/25/30/50/60 4096×2160p@24/25/30/50/60 ...
-
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range LPCM Linear Pulse-Code Modulation Personal Computer Ultra-High-Definition Universal Serial Bus Video Graphics Array (640×480@60Hz) WUXGA Wide Ultra Extended Graphics Array (1920×1200@60Hz) - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
