- Page 1 CLUX-11SA HDMI Audio Repeater Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION This is the most advanced solution for HDMI to HDMI repeater with Audio decoder. This is compatible with HDMI specifications, a cutting edge technology which defines to transfer Deep Color (12-bit/color) video with a high bandwidth up to 225 MHz. The HDMI Distribution Amplifier also does signal amplification and equalization output that can connected with other HDMI to HDMI units for repeater function. -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Supports digital video formats in Deep Color Mode from 25 MHz to 225 MHz for 36-bit (12-bit/color) • Supports high definition input up to 1080p@60 Hz/24-bit, output resolution follows input •... -
Page 8: Operation Controls And Functions

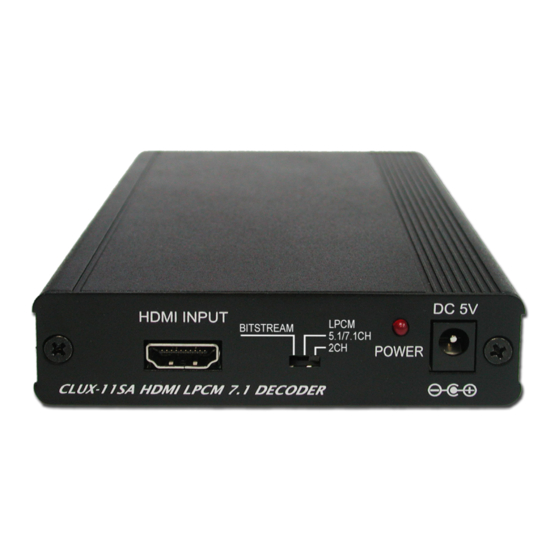

BITSTREAM 5.1/7.1CH POWER CLUX-11SA HDMI LPCM 7.1 DECODER HDMI INPUT: Connect the HDMI input port to the HDMI output port of your source equipment such as a DVD player or Set-top Box. AUDIO Output Switch: Switch among Bitstream/LPCM 7.1/5.1 or LPCM 2 channels. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player HDMI Input Power Supply FRONT DC 5V HDMI INPUT LPCM BITSTREAM 5.1/7.1CH POWER CLUX-11SA HDMI LPCM 7.1 DECODER REAR FL/FR LFE/FC RL/RR RLC/RRC HDMI OUT MULTI CHANNEL OUT OPTICAL OUT HDMI Optical Digital Output Output... -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1×HDMI Output Ports 1×HDMI, 4×3.5 mm Mini-jack, 1×Optical HDMI Audio Format LPCM 2/5.1/7.1 CH & Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Multi-channel Audio Format Analog audio of 2/5.1/7.1 channels Optical Audio Format Dolby 2/5.1 CH &... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CLUX11SA...
