- Page 1 CPRO-11SR HDMI 4Kx2K Repeater Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ...........3 6.2 Right Panel .........3 6.3 Left Panel ...........4 6.4 Rear Panel .........4 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI ™ 4K×2K Repeater is an advanced solution for extending an HDMI signal. It amplifies and equalizes the HDMI signal to provide high quality audio and video allowing you to extend the HDMI cable distance a further 15 meters at 1080p@60 Hz/8-bit resolution. 2. -
Page 7: Features
5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rates up to 192 kHz • HDMI supports high-bit-rate (HBR) audio • Supports maximum input and output HDMI cable lengths of up to 15 meters each at 1080p/8-bit resolution or 10 meters each at 1080p/12-bit or 4K ×... -
Page 8: Operation Controls And Functions

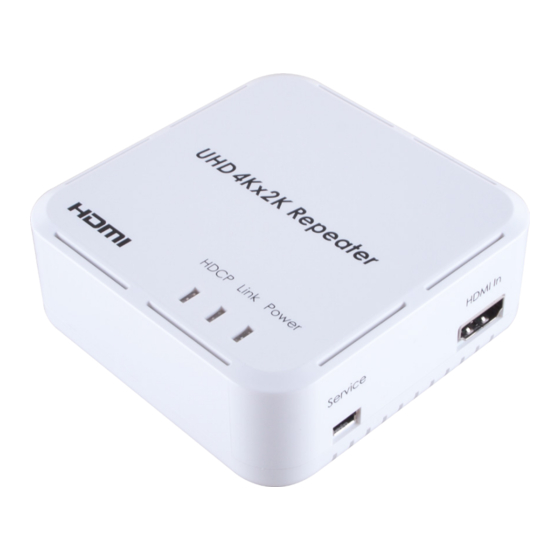

6. OPERATION CONTROLS AND FUNCTIONS HDMI 4Kx2K Repeater 6.1 Top Panel HDCP Link Power 1 2 3 HDCP LED: This LED will illuminate when an HDCP encoded HDMI signal has been detected. Link LED: This LED will illuminate when an active HDMI signal is being received. -
Page 9: Left Panel
6.3 Left Panel HDMI Out HDMI Out: Connect a TV/display with an HDMI cable for output of the combined audio/video HDMI signal. Note: For playback of 4K × 2K/3D HDMI source signals, a 4K × 2K/3D capable display and High Speed HDMI cables are required. 6.4 Rear Panel DC 5V DC 5V: Connect the 5V DC power supply to the unit and plug the... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply HDMI 4Kx2K Repeater HDCP Link Power HDMI Output Display... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 300 Mbps/10.2 Gbps Input Ports 1×HDMI, 1×Mini-USB (Manufacturer use only) Output Port 1×HDMI Audio Sampling Rates HDMI: Up to 192 kHz HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio HDMI Cable I/O Distance 10 m@1080p/12-bit, 15 m@1080p@8-bit, 10 m@4K×2K Power Supply... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K Ultra HD (3840×2160/4096×2160) Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface TMDS Transition-minimized differential signaling... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130627 MPM-CPRO11SR...
