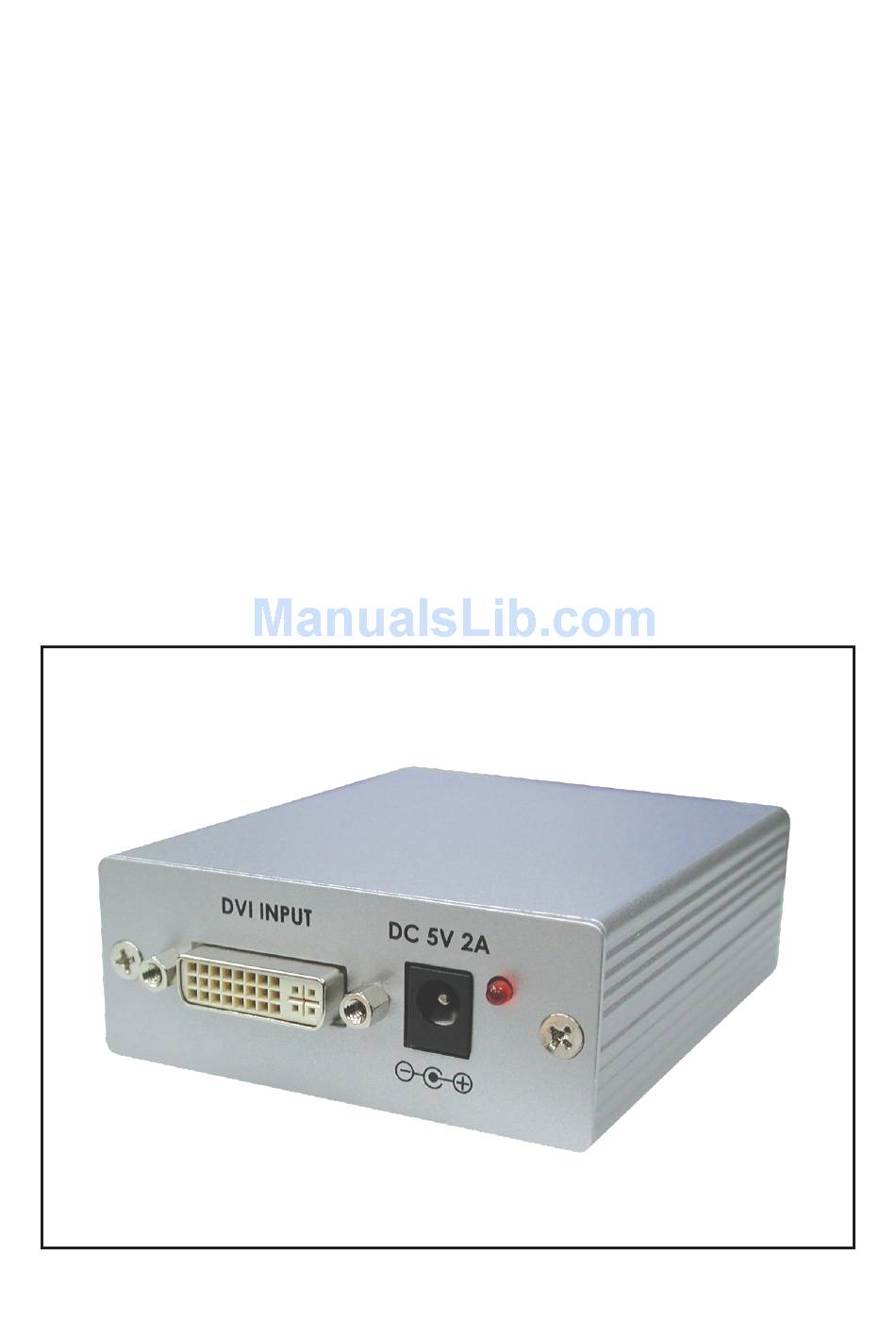

- Page 1 DVI Repeater The CP-263D boosts DVI source signal and extends the range of DVI signal transmission over a copper based cable by 12 meters at 1080p/UXGA. It can also be cascaded in multiple stages to achieve maximum transmission distance. Operation Manual...
-
Page 2: Operation Controls And Functions
Features * Correct signal error and boost signal strength for extending transmission range. * Extends 1080p/UXGA up to 12 meters transmission distance. ( lower resolution signal can be transmitted longer) * DDC pass through. * HDCP compliant. Operation Controls and Functions Rear Panel Front Panel DVI INPUT... -
Page 3: Specifications
Specifications * Compliant with DVI Rev1.0 * HDCP 1.1 compliant * Downward compatible to HDCP 1.0 * Operation frequency：up to 165MHz * DVI data rate: 1.65Gbps (single Link) * Input/Output resolution： PC：VGA@60Hz、VGA@72Hz、VGA@75Hz、VGA@85Hz SVGA@60Hz、SVGA@72Hz、SVGA@75Hz、SVGA@85Hz XGA@60Hz、XGA@70Hz、XGA@75Hz、XGA@85Hz、 XGA@87Hz、SXGA@60Hz、SXGA@75Hz、SXGA@85Hz、 UXGA@60Hz、1152@70Hz、1152@75Hz、1152@85Hz HD：480i@60Hz、576i@50Hz、480p@60Hz、576p@50Hz、 720p@60Hz、720p@50Hz、1080i@60Hz、1080i@50Hz、 1080p@60Hz、1080p@50Hz、1080p@30Hz、1080p@25Hz、 1080p@24Hz * Cable Distance Support：12m with twisted-pair * Dimensions (WxHxD)：76 x 30 x 105mm * Power：5V 2A Center- positive... - Page 4 Revised: October 31, 2005...
