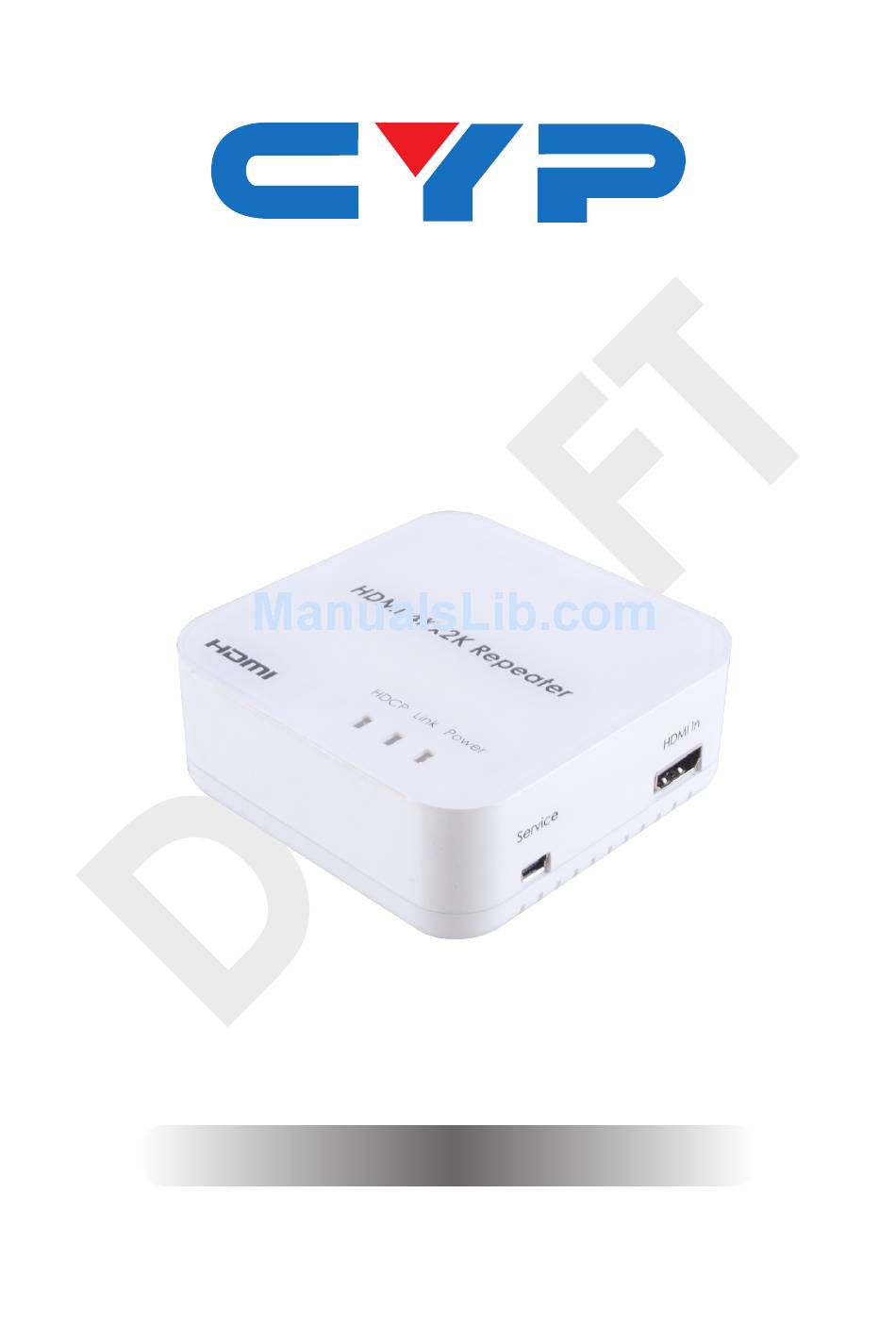

- Page 1 CPRO-11SR HDMI 4Kx2K Repeater Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Top Panel ..........2 6.2 Right Panel ........3 6.3 Left Panel ..........3 6.4 Front Panel ........3 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI™ 4Kx2K Repeater is the most advanced solution for HDMI to HDMI signal repeater. It does amplifies signal and equalization to provide high performance I/O of audio and video through HDMI cable for distance up to 15 meters at 1080p@60Hz at 8-bit resolution. 2. -
Page 7: Operation Controls And Functions

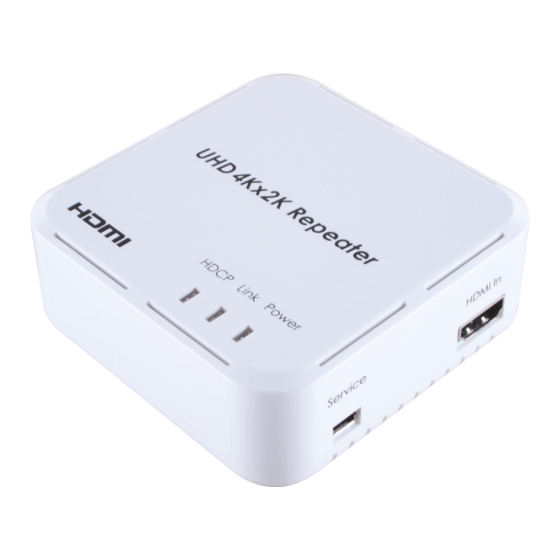

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel HDCP Link Power HDCP: This LED will illuminate when HDCP has been detected. Link: This LED will illuminate when input source is connected with HDMI signal. Power: This LED will illuminate when the unit is connected with power supply. -
Page 8: Right Panel
6.2 Right Panel Service HDMI In Service: This port is reserved for firmware update only. HDMI In: This slot is to connect with source equipment such as Blu-ray/PS3 player with HDMI signal sending. 6.3 Left Panel HDMI Out HDMI OUT: Connect to the display (TV/monitor) with an HDMI cable for video and audio signal output. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Play HDMI Input Service HDMI In HDMI Out HDMI Output Display... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 300Mbps / 10.2Gbps Input Ports 1 x HDMI, 1 x Mini-USB (service only) Output Port 1 x HDMI HDMI Audio Sampling Rate Up to 192 kHz HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio HDMI I/O 4Kx2K Cable Distance... -
Page 11: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4Kx2K 3840 x 2160 / 4096 x 2160 Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface TMDS Transition-minimized differential signaling... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130627 MPM-CPRO11SR...
