Step 4: Mount the Housing to the Ceiling or Wall

20

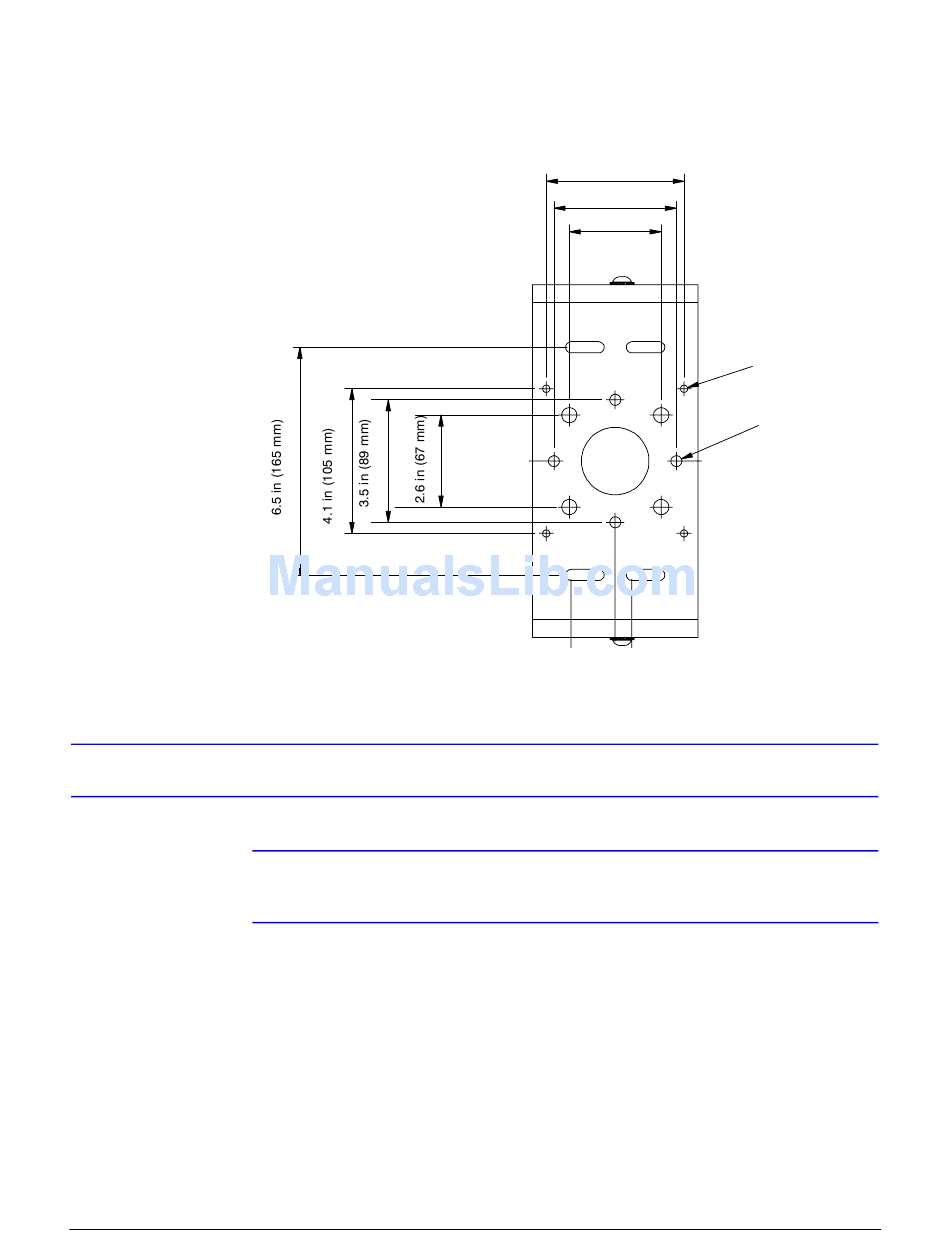

Figure 1-6
Rugged Housing Bracket Hole Dimensions
Note
With outdoor installations or a wet indoor area, the conduit and conduit fitting
must be water tight.
1.
Install a 0.75"(19 mm) conduit fitting in the hole on the housing.
2.
Place the supplied gasket between the hole in the housing and the conduit fitting to
prevent leakage. Tighten the conduit nut.
3.
Secure the housing to the mounting bracket, previously installed to a ceiling
support structure or wall support structure using the appropriate hardware for the
mounting surface.
3.9 in (100 mm)
3.5 in (89 mm)
2.6 in (67 mm)
0.21 in (5.3 mm)
diameter
0.31 in (8 mm)
diameter
