Step 3: Mount the Rugged Housing Bracket

Document 800-02460 Rev A
08/08
Note
The mounting bracket can be at any angle from 0° to 90° with respect to the
housing. The housing must be positioned horizontally and parallel to the
floor.
1.
Select the location for the housing.
Each ACUIX requires a 24 VAC ± 10% power source measured at the housing.
Ensure a 24 VAC @ 2.6A power source is available.
For maximum wiring distances to the dome, see
2.
Prepare the mounting surface by pre-drilling four holes to attach the mounting
bracket to the ceiling or wall. See
3.
Secure a safety cable to a
building support structure.
Attach the safety cable
(from the building support
structure) to the mounting
bracket by:
a.
Routing the safety
around the mounting
bracket, then
b.
Through a hole in the
side of the mounting
bracket and then
c.
Through the other side
of the looping sleeve,
and
d.
Crimp the looping sleeve to secure the safety cable.
ACUIX IP Rugged Housing and Dome Installation Guide
Figure 1-6
for hole dimensions.
Table 1-2
on
page
12.

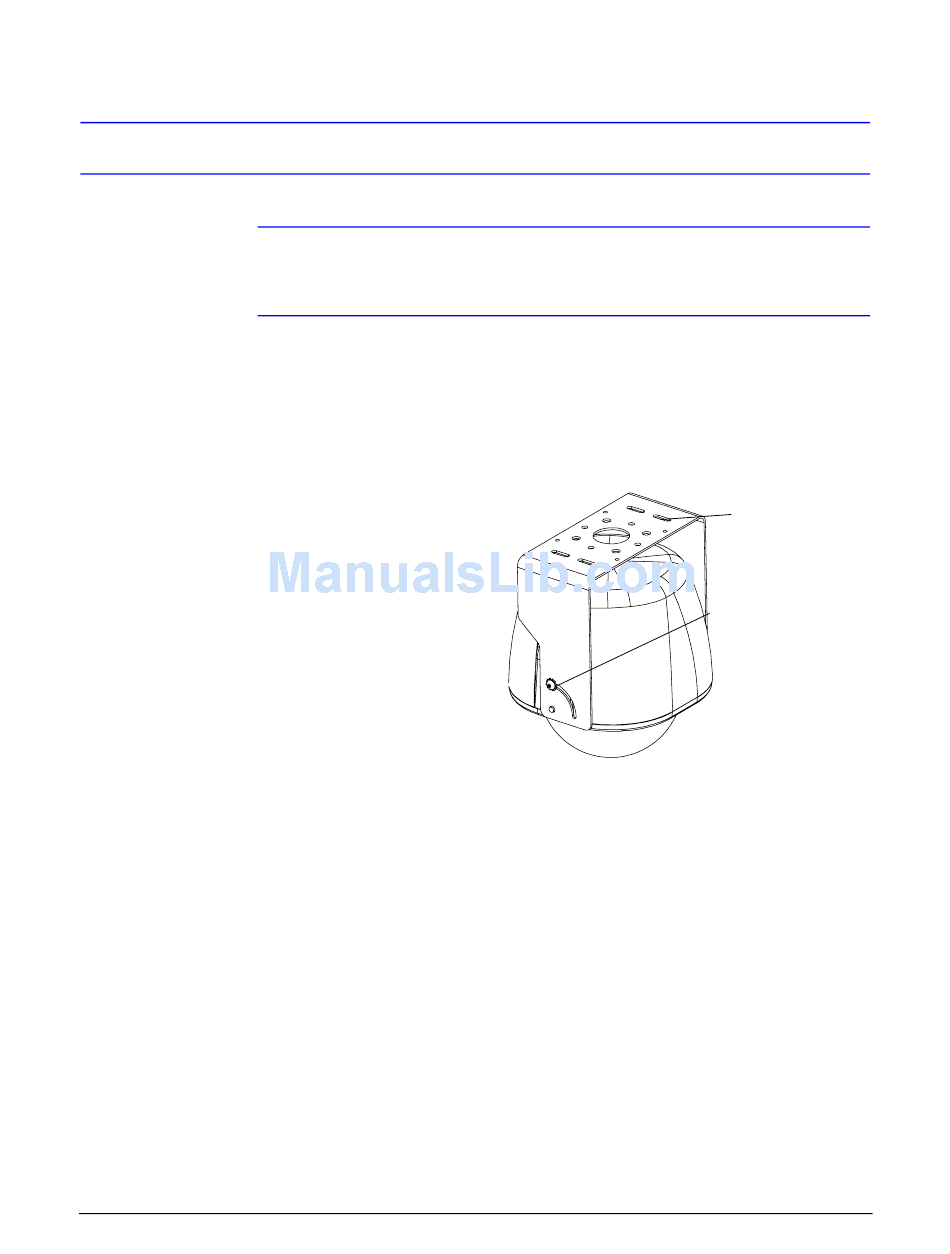

Mounting bracket
One of two bolts that
attach bracket to housing
19
